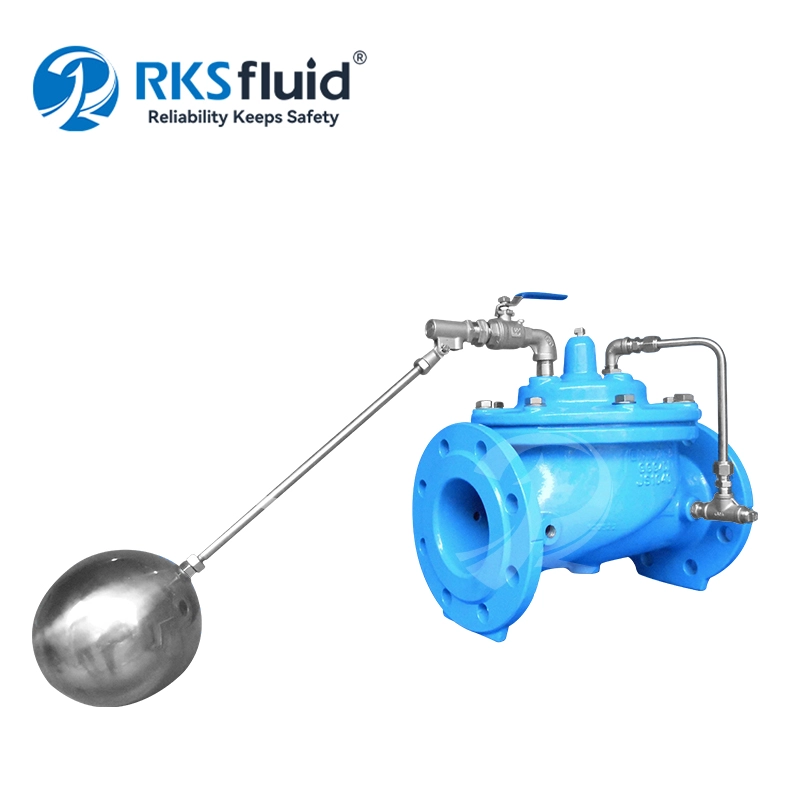

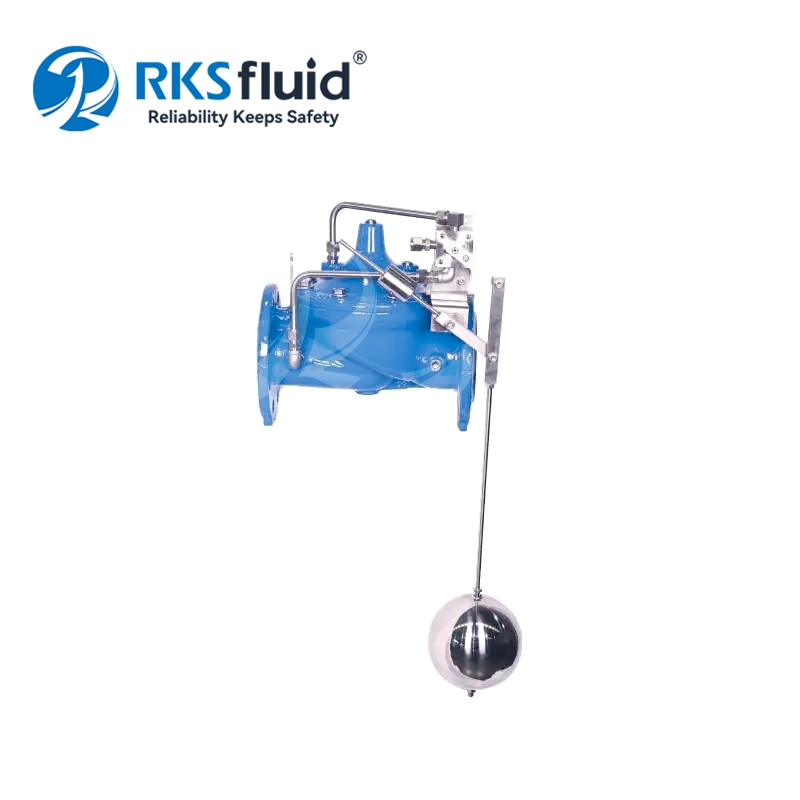

The Float Valve is a non-modulating valve That accurately controls the liquid level in tanks. This valve is designed to open fully when the liquid level reaches a preset low point, and close drip-tight when the level reaches a preset high point. The float pilot is remotely installed inside of reservoir.
This is a hydraulically operated, diaphragm valve with the pilot Control and float mechanism mounted on the cover of the main valve.

1. Main valve                     2. Needle valve                     3. Ball valve                     4. Float pilot                     5. Strainer

A.Shut off valve        B.Y strainer          C.Float control valve          D.Shut off valve          E.Soft joint          F.Float pilot

Standard  Features


1. Single chamber and Globe type main valve;

2. Ductile Iron EN-GJS-500-7 body and bonnet;

3. CF8/SUS304 Seat and Shaft;

4.  EPDM gasket and diaphragm;

5. WRAS Epoxy powder coating;

6. PN10/16/25

Hightlights:

1. Fully Bore with seat diameter as DN+2 mm
2. Stable working even if the flow close to Zero
3. High performance and strength Nylon enforce diaphragm
4. One Million cycle test and 64 bar burst test
5. Fully bore (FB), Reduce bore (RB) and Anti-Cavitation Device(ACD)6. Higher than standard product test,
6.1 Seat test : 1.1 * PN + 1 Bar
6.2 Strength test : 1.5 * PN + 1 Bar
6.3 Low pressure  sealing test: 0.2 Bar
7. Automatic computer test with 1000 Hz Sensor
8. Smart control valve and Solution system 9. Specialsolution for technical support
