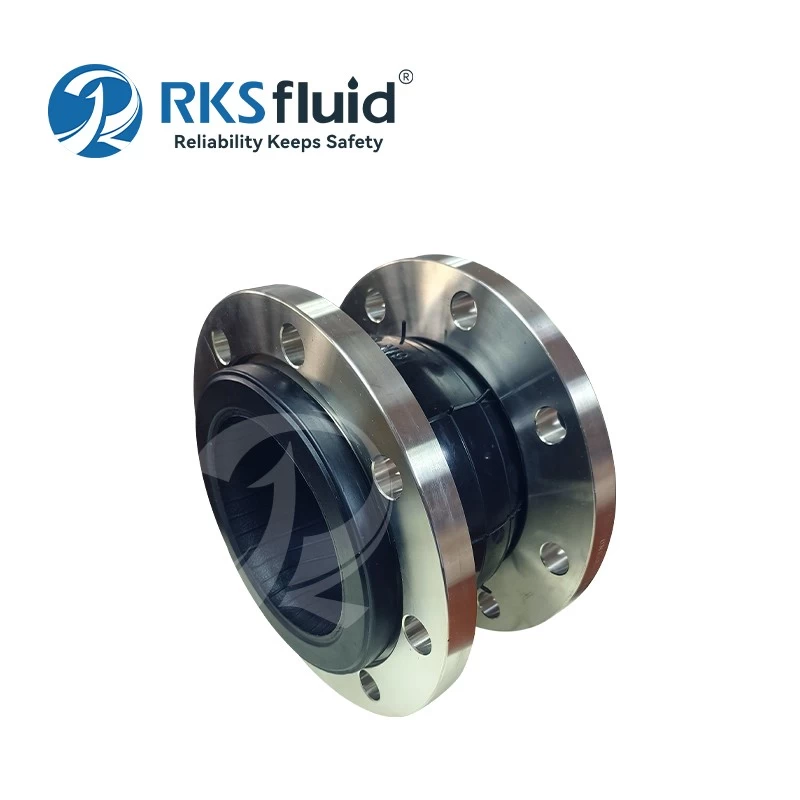

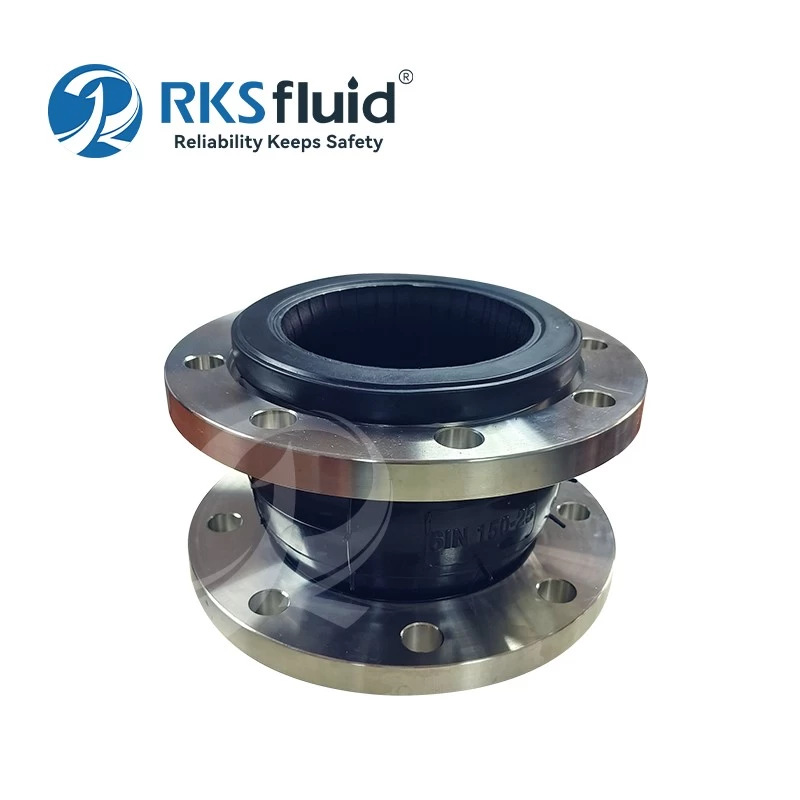

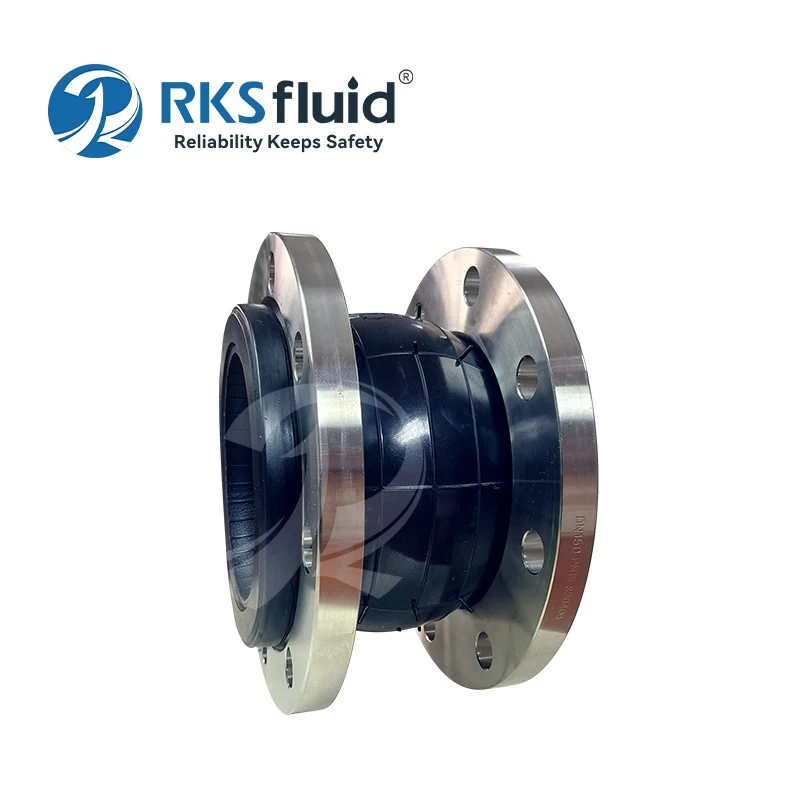

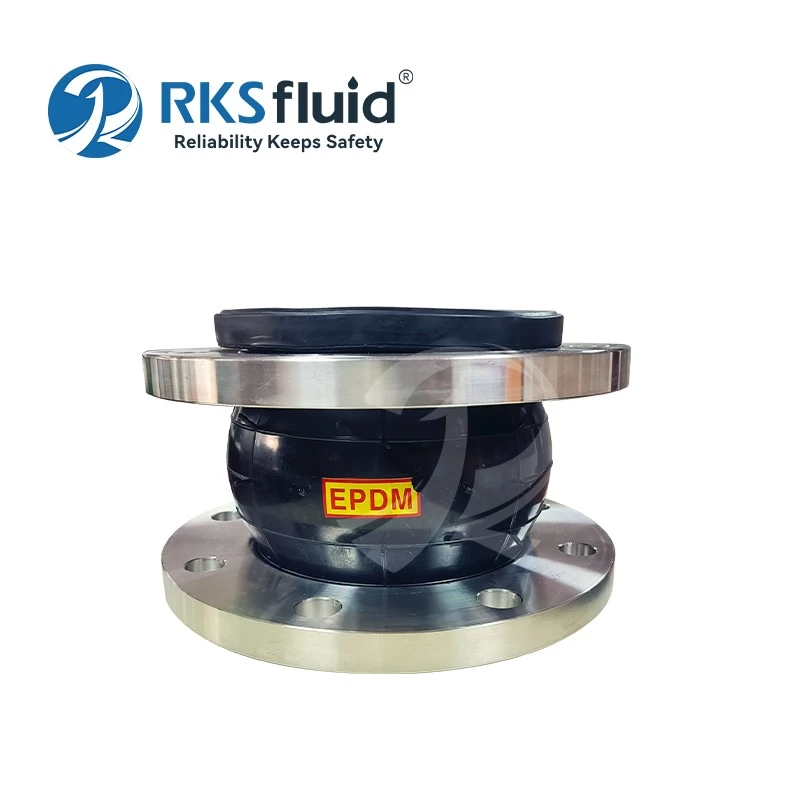

Customizable Metal Stainless Steel Flange Expansion Joint Rubber DN150 PN16
- Model Number: Expansion Joint
- Size: DN32 - DN2400
- Pressure ratings: PN10, PN16, PN25,
- Temperature range:-20°C - +115°C, (for special conditions) it can be -30°C - +250°C
- Material: Stainless steel, Carbon steel
- Gasket: EPDM
- Flange material: Casting and forged carbon steels (Q235), Stainless steel (201, 304, 316, 321), Plastic (CPVC, PVDF, PPH, UPVC, RPP)
- Applicable medium: Water treatment, Industrial water applications, Fire protection network
- Flange standard: GB4216.3-4216.5
| Negative pressure rubber connector is a expansion joint to resist suction, when the external pressure is greater than the internal pressure (expansion joint head/soft joint rubber shock absorber), laryngeal: 1. Negative pressure resistant expansion joint rubber made of different materials can be made resist to Acid and alkali, corrosion, oil, heat and a variety of media and the environment. 2. Expansion joint material is a polar rubber, expansion joint is sealing well and light weight, expansion joint installation is Convenient. It has long service life it shall avoid contact with sharp metal instruments, so as not to puncture the rubber ball joint. 3. Expansion joint installed overhead can use elastic support, expansion joint installation shall be bolted by diagonal Method of tightening. 4. Expansion joint used on high pressure pipe line shall be connected with limit bolts at both ends of the flange. 5. Expansion joint flange connection adopt the GB4216.3-4216.5 standard, otherwise shall be specified separately. The working pressure of the productGrade 0.6Mpa,1 Mpa,1.6 Mpa,2.5 Mpa. The use of negative pressure ball can be used in vacuum to avoid the sphere deformation and damage. |
 |
 |
|
Inner and outer lining
|
NR, CR, IIR, NBR, FKM, EPDM, PTFE
|
| Main skeleton |
Nylon cord fabric
|
| Pressurizing ring |
Stranded copper wire
|
| Flange |
Casting and forged carbon steels (Q235)
Stainless steel (201, 304, 316, 321)
Plastic (CPVC, PVDF, PPH, UPVC, RPP)
|
 |
Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
Ⅱ Advanced CNC machining centers, professional process cells, welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
 |
 |
 |
