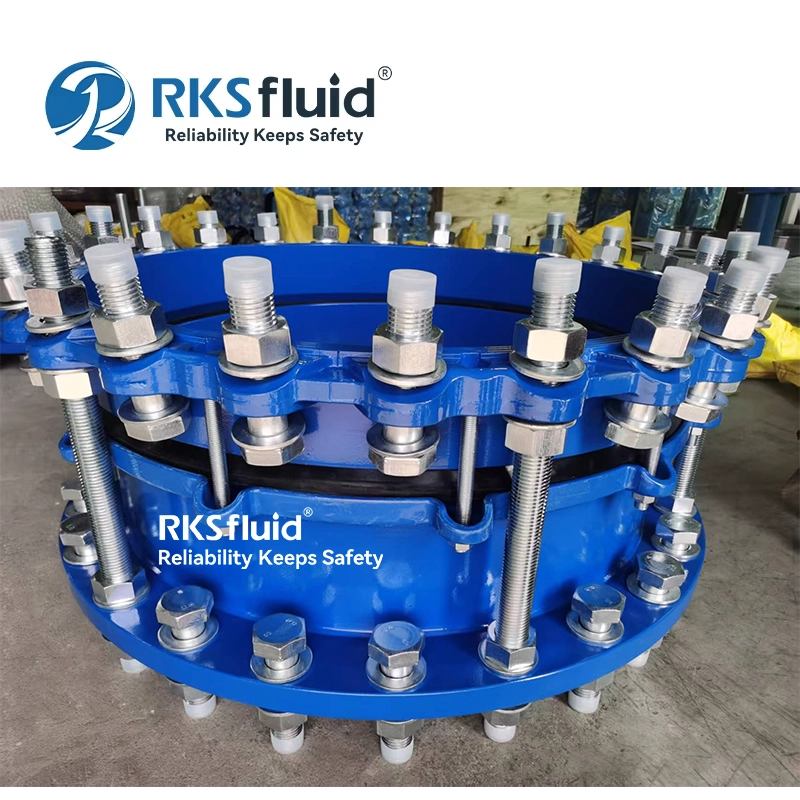

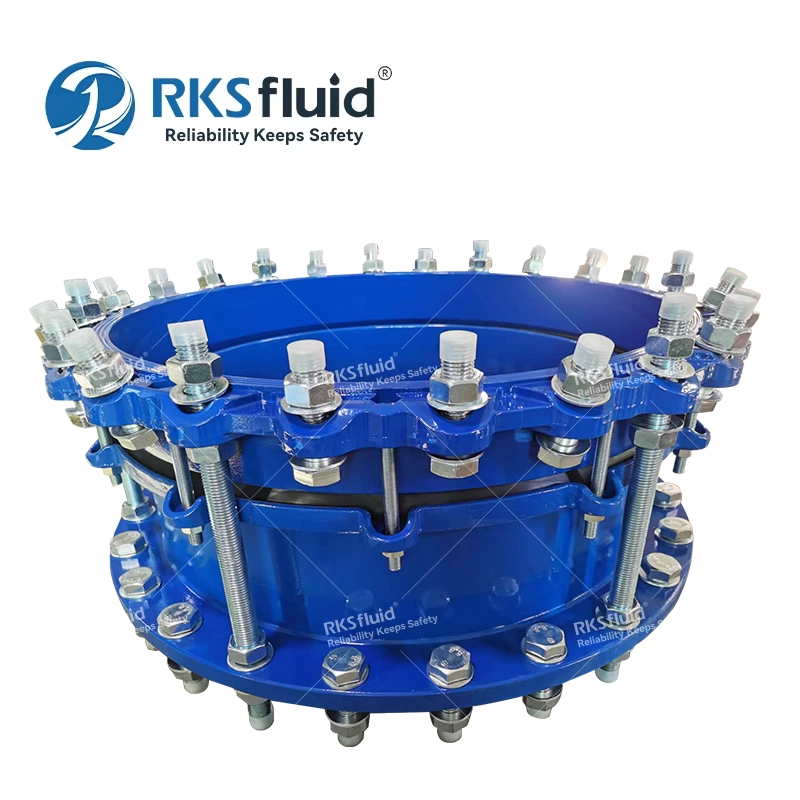

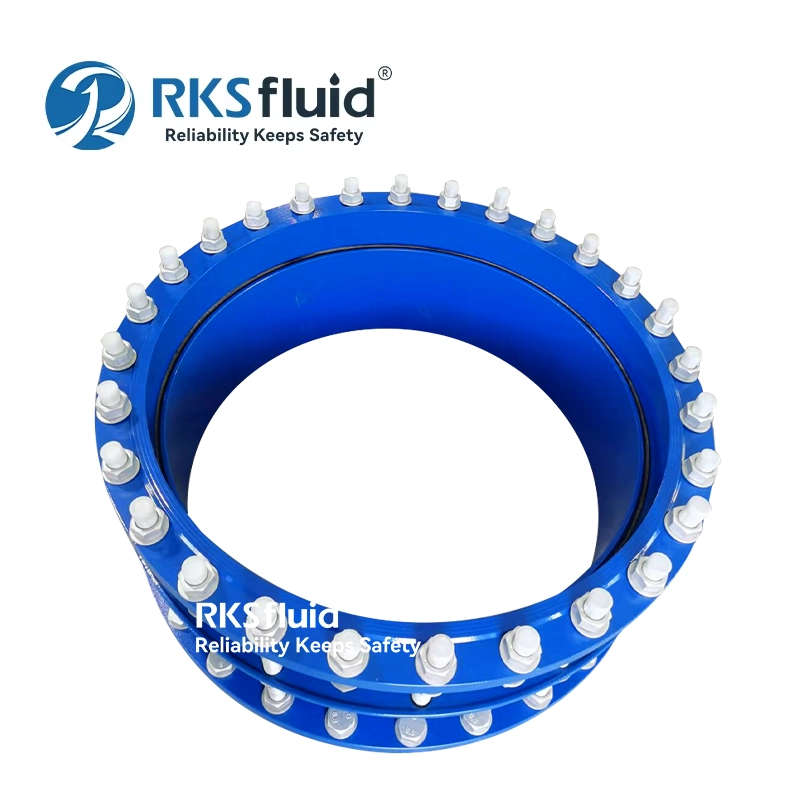

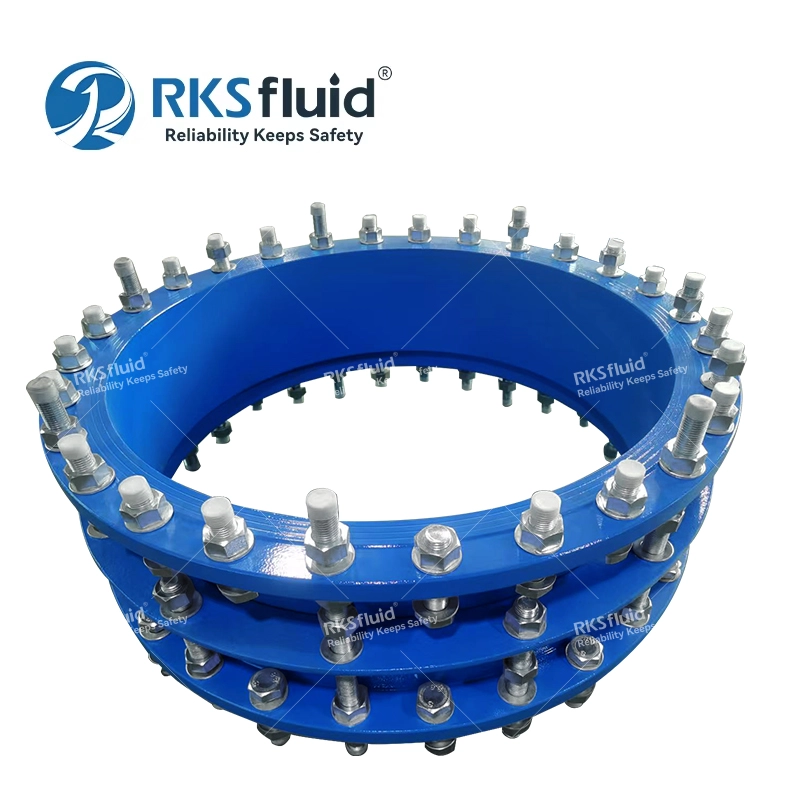

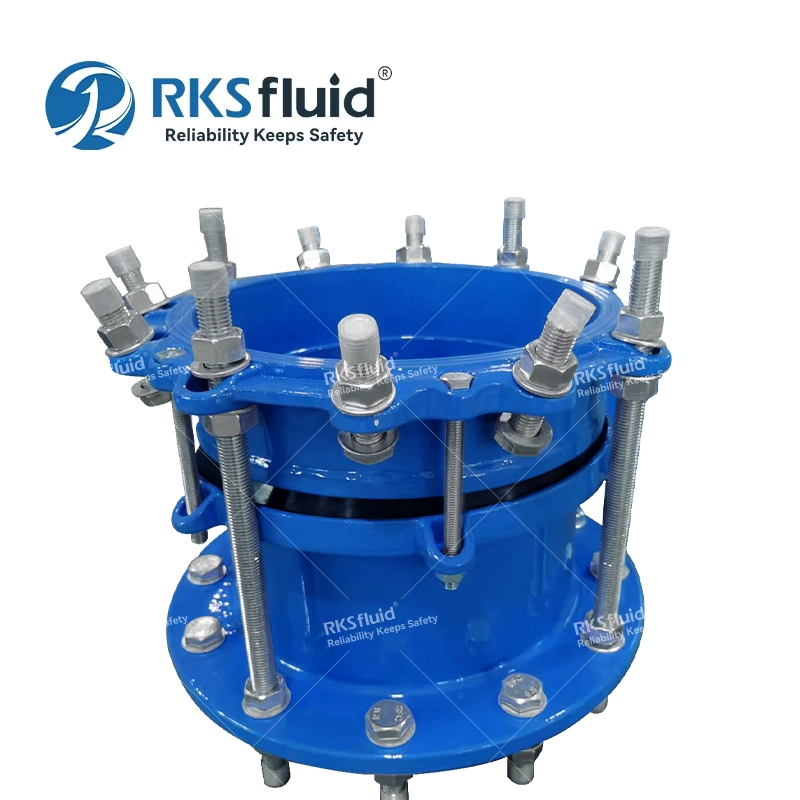

AWWA-C219 Ductile iron 50mm Double Flange Dismantling Joint with Tie Rods for Pumping Stations

Size: DN40-DN2000

Pressure Ratings: PN10, PN16, PN25, PN40

Connections: Flange

Temperature Range: -10°C~+70°C

Body Material: Ductile iron, Carbon steel

Medium: Air, Water

Design Standard: AWWA-C219

Applications: Pumping stations, Water treatment plants, Sewage treatment plants, Plant rooms, Instrument rooms, Power generation equipment, gas stations etc.

Display Parameters Contact Now

Product Details

Role in Valve Installation and Pipeline Maintenance

Dismantling joints are essential components in water transmission and wastewater pipeline systems, particularly where large-diameter valves are installed. Their primary function is to provide axial adjustment during installation and to create sufficient clearance for valve removal during maintenance.

In practical pipeline projects, dismantling joints help compensate for dimensional tolerances and simplify on-site alignment, reducing installation difficulty and labor intensity.

Application with Large-Diameter Valves

Dismantling joints are commonly installed together with butterfly valves, gate valves, and swing check valves in water pipeline systems. When used in combination with double eccentric butterfly valves, dismantling joints significantly improve installation efficiency and maintenance accessibility.

This combination allows valves to be removed without disturbing adjacent pipe sections, reducing maintenance time and minimizing operational disruption.

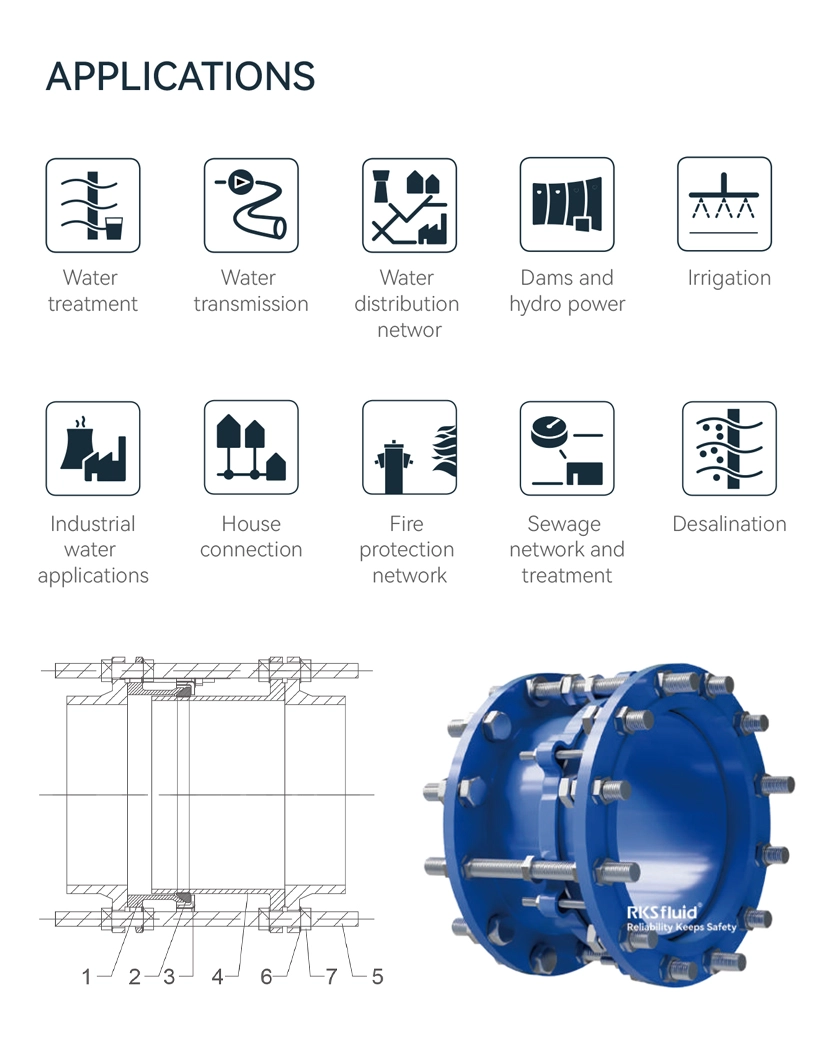

NO	Name	Material	Standard
1	Fixde Flange	GGG50	EN1563
2	Gasket	EPDM	ISO 4633
3	Gland	GGG50	EN1563
4	Removable Fange	GGG50	EN1563
5/6/7	Bolt	Carbon Steel Grade 4.8	ISO 898
	Epoxy Coating	Epoxy Poeder	BS EN 14901
	Flange Driling		ISO 2531,BS EN 545,BS EN 1092

Engineering Benefits in Water Pipeline Systems

From an engineering perspective, the use of dismantling joints contributes to:

Improved installation flexibility
Reduced mechanical stress on valves and flanged connections
Shorter maintenance downtime
Enhanced safety during valve handling and replacement

For long-distance water transmission pipelines and underground valve chambers, dismantling joints are considered a standard and practical solution.
