MINOTAUR series replaceable seat high performance butterfly valve
Key Features & Benefits

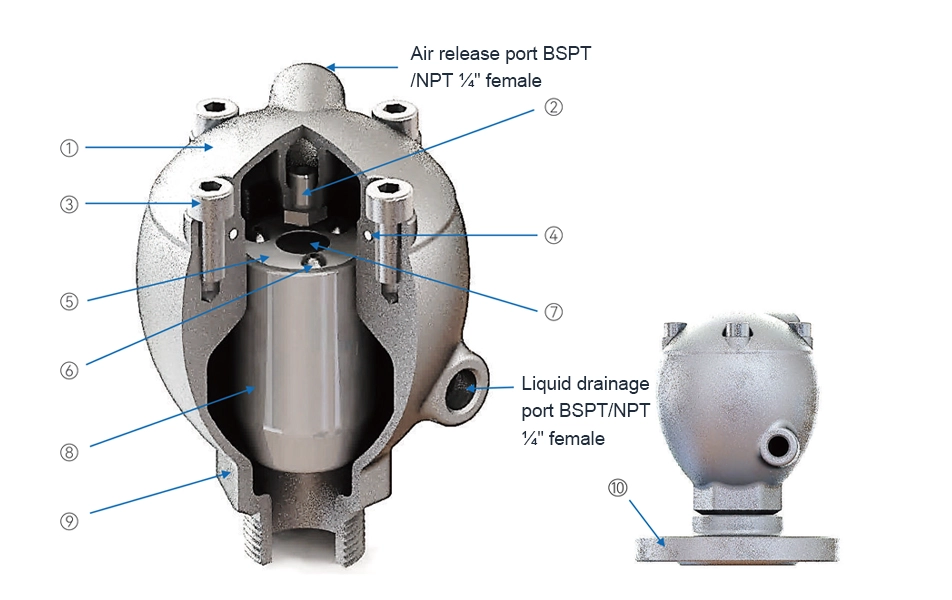

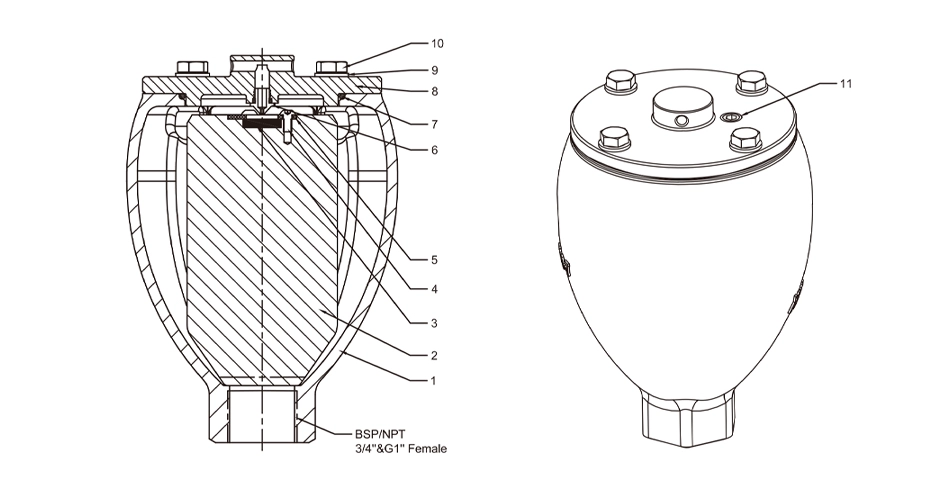

3F2F Model-Ductile Iron
| Material | ||||
| NO | Part Name | Option 1 | Option 2 | Option 3 |
| 1 | Body | DI | DI | DI |
| 2 | Float | PP | PP | PP |
| 3 | Seal | NBR | NBR | NBR |
| 4 | Screw | A2 | A4 | A4 |
| 5 | Seal Retainer | PP | PP | PP |
| 6 | Nozzle | A2 | A4 | 2205 |
| 7 | O Ring | EPDM | EPDM | EPDM |
| 8 | Bonnet | 20# | 20# | 20# |
| 9 | Washer | A2 | A4 | A4 |
| 10 | Bolt | A2 | A4 | A4 |
| 11 | Plug | A2 | A4 | 316L |
3F2F Model-Stainless Steel
