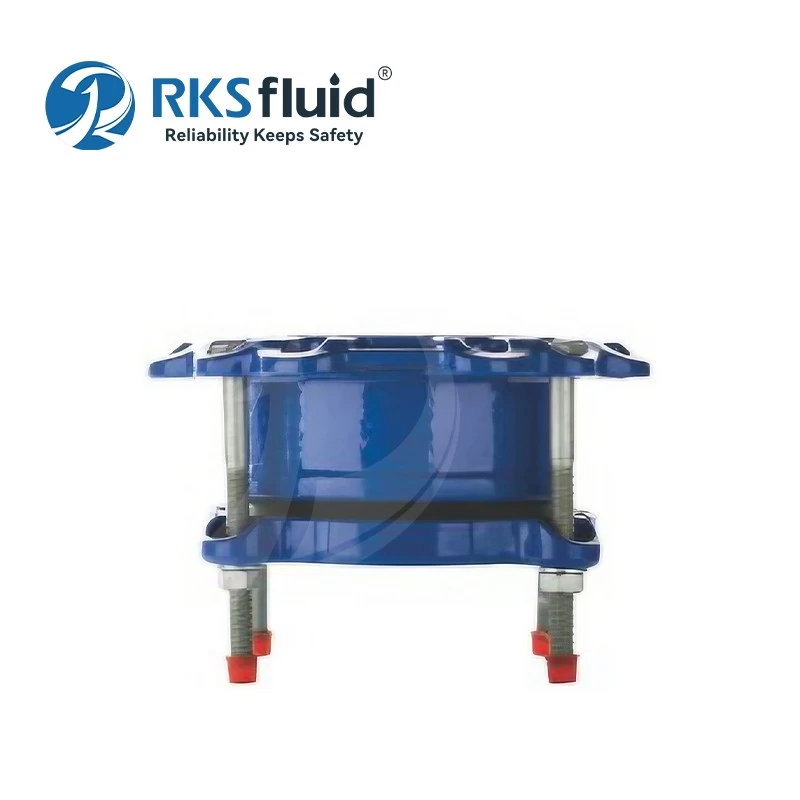

Universal Flange adaptor is suitable for pipeline which one end is flange and the other end is socket.We use a new mechanical coupling technology to save the installation time.Install easily and remove conveniently.
There is 5-10mm telescopic adjustment between socket and flange plat. Another feature of the product is the range of connections. Because of the large diameter of the pipe connected to the product, the line is allowed to have a ±6° deviation when connecting the pipeline so that the normal movement of the pipe (such as ground subsidence, etc.). It can be used in the large bending radius pipeline caused the deviation. In addition, the pipe can be cut with different lengths, and the product connection is changed from a socket pipe to a flange connecting pipe. Install easily and quickly. Using only one wrench torque wrench to tighten high strength steel or stainless steel bolted connections is one of the most important features of this range products. In view of the above characteristics, the customer's demand for product inventory has been reduced.
 |
| NO. | Name | Material | Standard |
| 1 | Flange A Pipe | GGG50 | EN1563 |
| 2 | Gasket | EPDM | ISO4633 |
| 3 | Compression Ring | GGG50 | EN1563 |
| 4/5/6 | Bolt | Carbon Steel Grade 4.8 galvanized zinc | ISO898 |
| Anti-corrosion Coating | Epoxy Resin | BS EN 14901 | |
| Flange drilling | BS EN 1092 |
 |
|
Ⅰ Business area: fluid control products, technology and environmental protection products. Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating. Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards. Ⅳ We have set up a research and development center in Houston, Texas, in the United States. Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609. VI Main production: butterfly valve, ball valve, gate valve, check valve, Air valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts. |
 |
|
|
|
