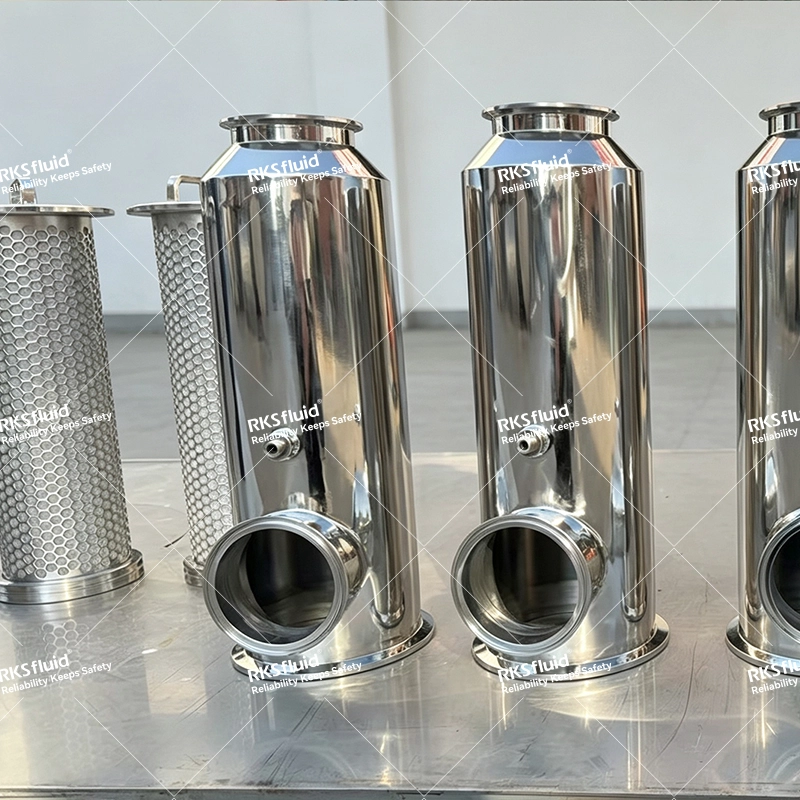

CDU Liquid Cooling Filter Element
- Filter Media: Multi-layer Sintered Mesh
- Housing Material: ASTM A270/A270M S30400
- Connection Type: Sanitary Clamp
- Filtration Rating: 25/50/250/500μm
- Filtration Efficiency: ≥99%
- Surface Finish: Mirror Electropolishing
- Seal Material: NSF /RoHS Available
- Flow Direction: Inside to Outside
- Custom Design: Available
- Product Details
As liquid cooling systems become increasingly important for high-performance computing and data center applications, effective particle control is essential for protecting system components and maintaining stable coolant circulation.

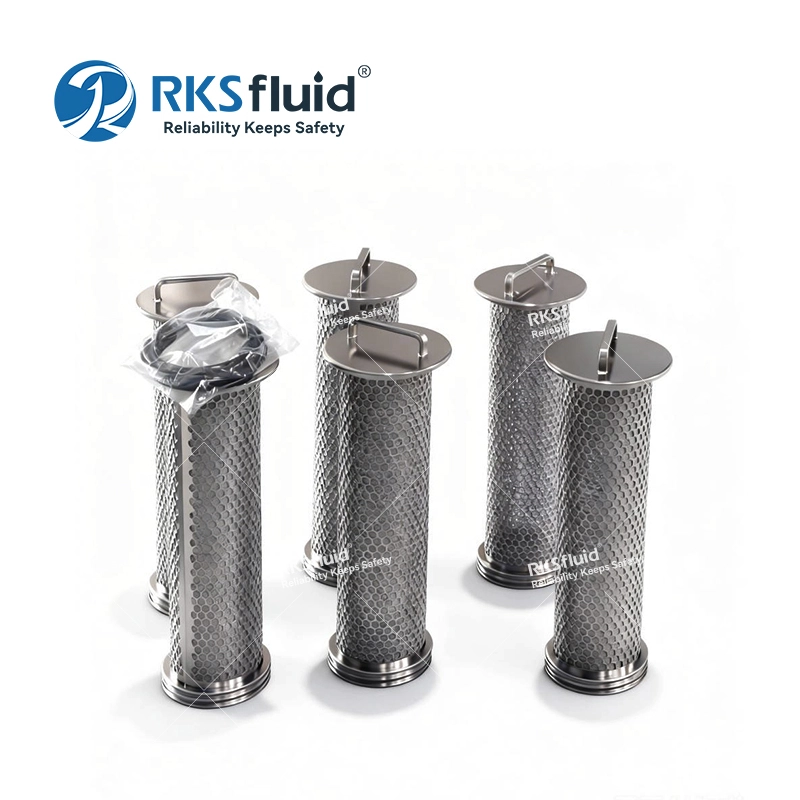

RKSfluid CDU filter elements use a composite metal filtration structure consisting of a perforated support plate and multiple layers of square mesh or Dutch weave mesh. The composite structure provides mechanical support while maintaining the filtration characteristics of the mesh.
The result is a rigid, stable and reusable metal filter element suitable for CDU liquid cooling filtration and other demanding liquid filtration applications.
Key Advantages
- High Mechanical Strength: The perforated plate provides structural support for the sintered mesh, improving rigidity and resistance to deformation under operating conditions.
- Stable Filtration Performance: The sintered mesh has a fixed structure and uniform pore size, helping maintain consistent filtration performance during operation.
- Precision Filtration: The composite sintered mesh technology supports filtration ratings from 1 to 1000 μm. Standard CDU filter elements are available in 25, 50, 250 and 500 μm.
- ≥99% Filtration Efficiency: The current CDU filter element models are specified with a filtration efficiency of ≥99%.
- Cleanable & Backwash Compatible: The filter element uses a surface filtration design and is compatible with backwashing, allowing convenient cleaning and maintenance.
- Stainless Steel Construction: Standard CDU models use 304 stainless steel. Other materials, including 316L stainless steel, can be considered according to application requirements.
| Model | Filtration Rating | Filtration Efficiency | Material | Flow Direction |
| CDU-25 | 25μm | ≥99% | 304SS | Inside→Outside |
| CDU-50 | 50μm | |||
| CDU-250 | 250μm | |||
| CDU-500 | 500μm |
Looking for a CDU Filter Element for Your Liquid Cooling System?
Send us your requirements, including filtration rating, dimensions, material, connection or existing filter specifications.
RKSfluid will provide a suitable filter element solution for your application.
FAQs
Filtration rating should be selected according to coolant cleanliness, particle size, protected components, flow requirements and allowable pressure drop. RKSfluid currently offers 25, 50, 250 and 500 μm standard CDU filter elements. Customized filtration ratings are also available according to specific system requirements.
The perforated plate provides mechanical support and improves rigidity and resistance to deformation, while the sintered mesh provides the filtration function. The composite structure combines high mechanical strength with stable and precise filtration performance.
Pressure drop should be considered together with filtration rating and required coolant flow. A suitable filter element should provide the required particle filtration without creating excessive resistance in the cooling loop. RKSfluid can evaluate filter selection based on flow rate, filtration rating and allowable pressure drop.
Rapid clogging may result from high particle loading, unsuitable filtration ratings or insufficient upstream filtration. Filter selection should match the system's contamination level and flow requirements. For systems with higher contamination loads, filtration configuration and maintenance intervals should be evaluated accordingly.
Yes. The filter element uses a surface filtration design and is compatible with backwashing. This allows accumulated contaminants to be removed during maintenance. Cleaning frequency and reuse should be determined according to coolant condition, contamination level and actual operating conditions.
The standard CDU filter element is manufactured from 304 stainless steel. 316L stainless steel can also be considered for customized requirements. Material selection should take into account coolant chemistry, corrosion resistance and system operating conditions.

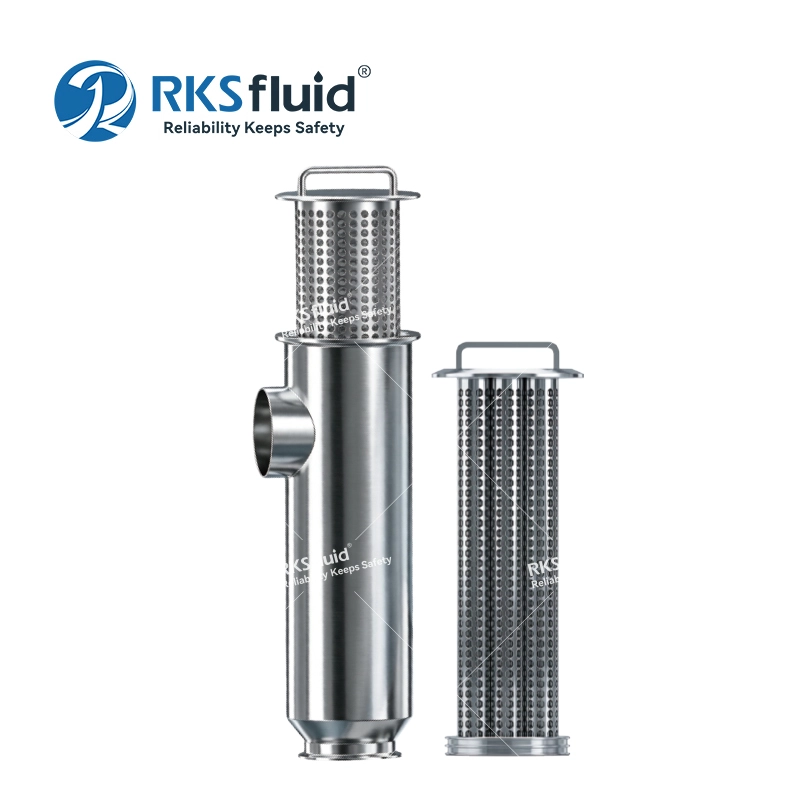

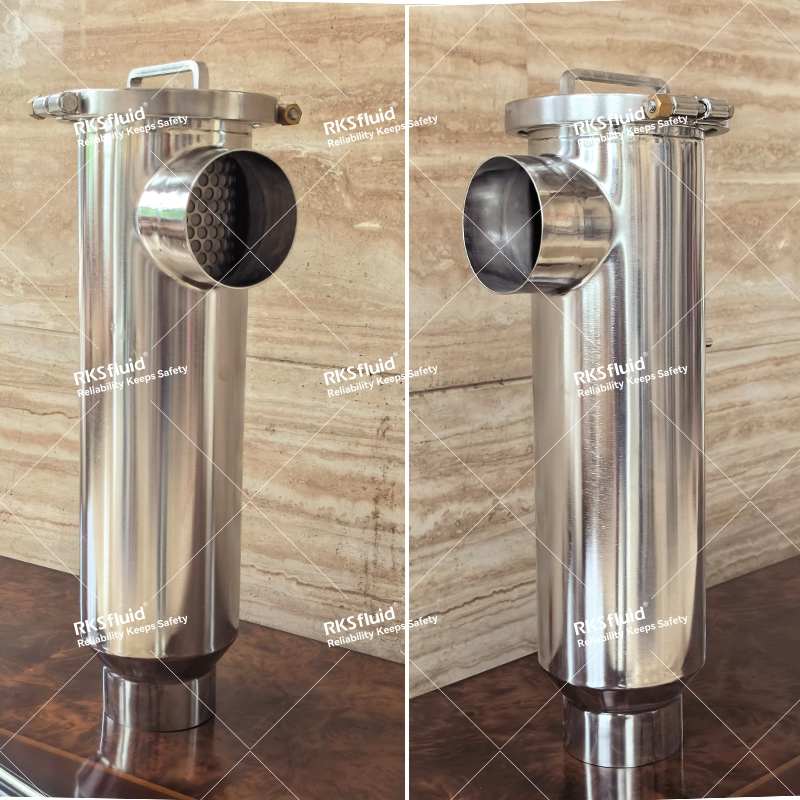

The filter element is installed inside a compatible CDU filter housing or filtration assembly. The standard flow direction is inside to outside. Coolant enters the inside of the cylindrical element, passes through the sintered mesh and exits as filtered coolant.
For selection or customization, provide the required filtration rating, coolant type, flow rate, operating pressure, allowable pressure drop, filter dimensions, connection/interface and material requirements. An existing filter drawing, specification or sample can also help RKSfluid develop a suitable solution.
