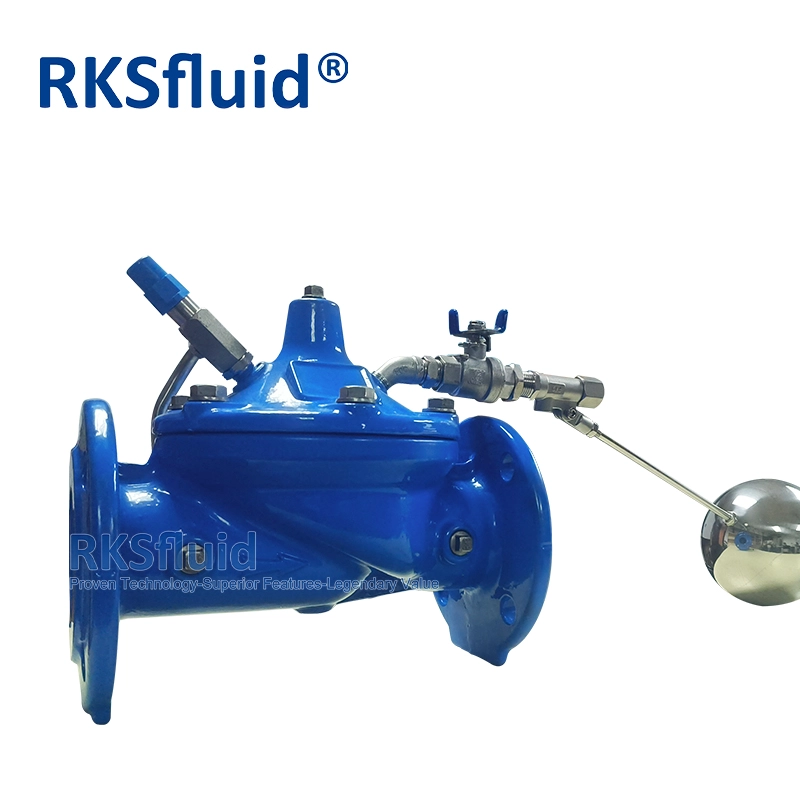

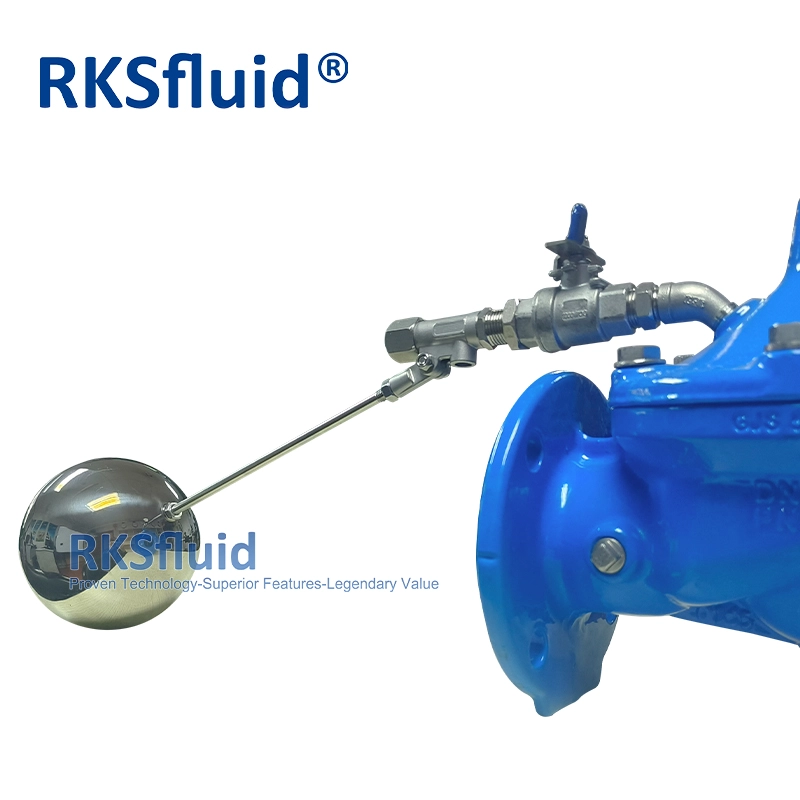

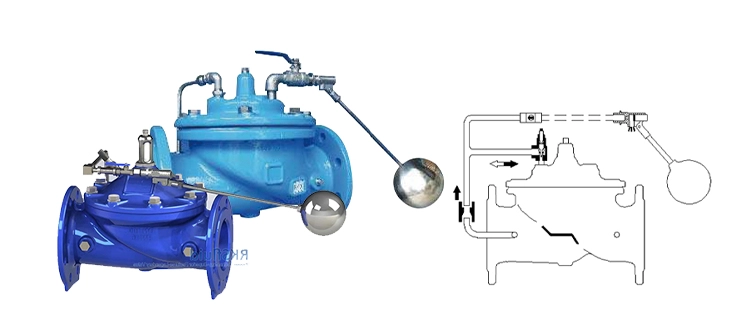

Chinese manufacturer 3 inch fully automatic water tank level float control valve pn16
- Product Name:K10B Bi-level control valve
- Application:level control valve of water tanks reserviors pools
- Pressure Range:PN10/16/25/40CL150/GL300
- Nominal Diameter:DN40- DN1200
- Material Option:QT500-7/SUS304/SUS316/SAF2205/Bronze
- Seals Material:NBR/EPDM/HNBR
- Media:Water, Gas, Oil
- Media Temprature:-10~80°C
- Packing:Wooden Case
- Stress Test Standard:GB/T 13927 & ISO 5208 &EN12266-1
- Flange drilling standard:GB17241.6; EN1092-2; ISO7005-2; ANSI / JIS / AS2129
- Structure Length:GB 12221 & EN558-1
- Face to Face:GB 12221 / EN 558-1 / ISO 5752 Series 1

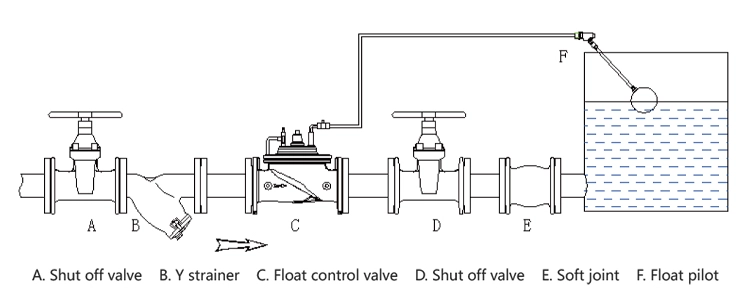

The Level Control Valve is a modulating valve that accurately controls the water level in tanks. This valve is designed to open when the water level reaches a preset low point, and close drip-tight when the level reaches a preset high point.
But there is no back pressure in the control chamber of the main valve. And the main valve can be fully open Water level
difference :100-1000mm adjustable .
Application: Level control of water tanks, reservoirs, pools and other storage devices.
Standard Features
1. Single chamber and Globe type main valve;
2. Ductile Iron EN-GJS-500-7 body and bonnet;
3. CF8/SUS304 Seat and Shaft;
4. EPDM gasket and diaphragm;
5. WRAS Epoxy powder coating;
6. PN10/16/25
DN | L | H | H1 | DN | L | H | H1 |
40 | 230 | 139 | 85 | 250 | 730 | 476 | 205 |
50 | 230 | 139 | 85 | 300 | 850 | 526 | 232 |
65 | 290 | 159 | 95 | 350 | 980 | 585 | 262 |
80 | 310 | 179 | 102 | 400 | 1100 | 624 | 292 |
100 | 350 | 214 | 112 | 500 | 1250 | 720 | 360 |
125 | 400 | 278 | 127 | 600 | 1450 | 835 | 424 |
150 | 480 | 233 | 145 | 800 | 1850 | 1110 | 515 |
200 | 600 | 407 | 172 | 1000 | 2250 | 1350 | 630 |
Hightlights:
1. Fully Bore with seat diameter as DN+2 mm
2. Stable working even if the flow close to Zero
3. High performance and strength Nylon enforce diaphragm
4. One Million cycle test and 64 bar burst test
5. Fully bore (FB), Reduce bore (RB) and Anti-Cavitation Device(ACD)6. Higher than standard product test,
6.1 Seat test : 1.1 * PN + 1 Bar
6.2 Strength test : 1.5 * PN + 1 Bar
6.3 Low pressure sealing test: 0.2 Bar
7. Automatic computer test with 1000 Hz Sensor
8. Smart control valve and Solution system 9. Specialsolution for technical support
Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts
