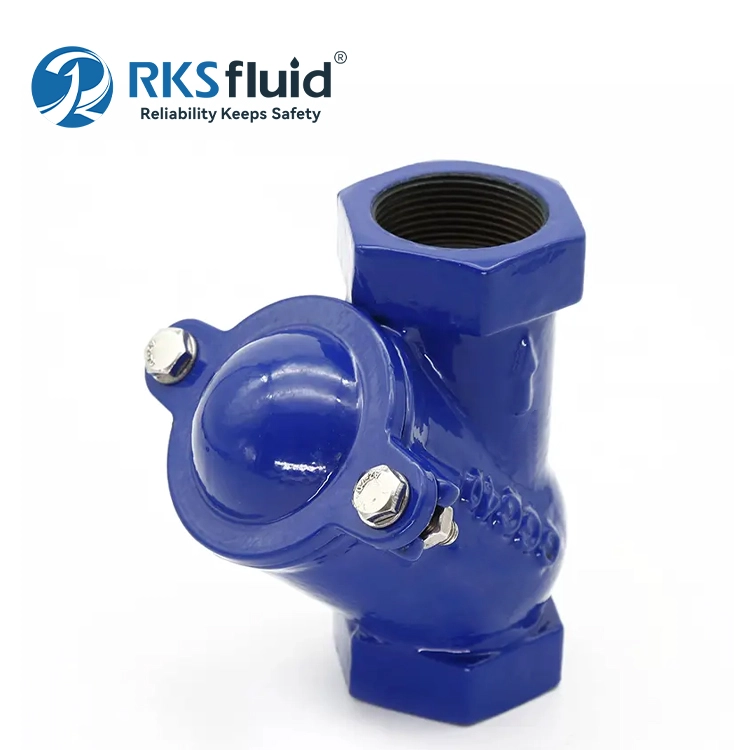

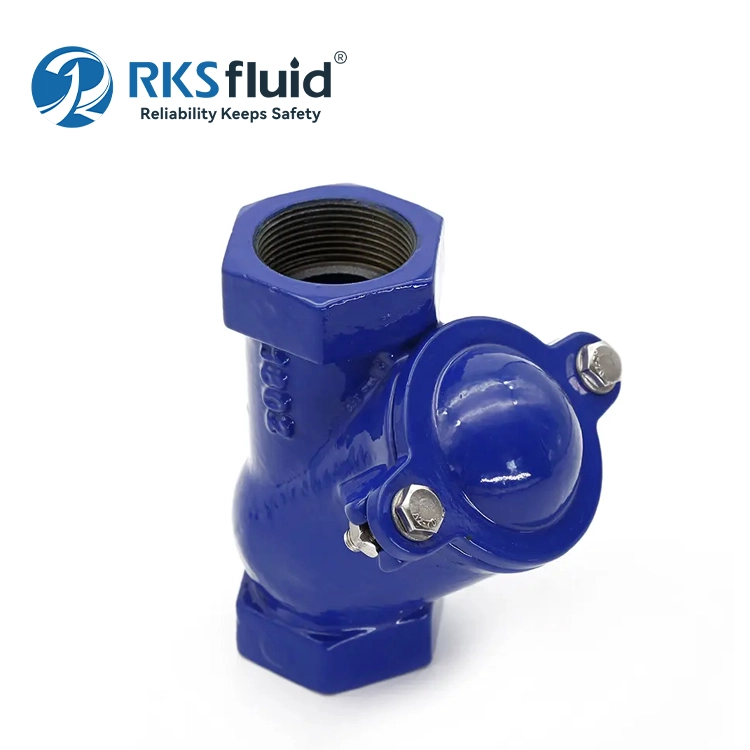

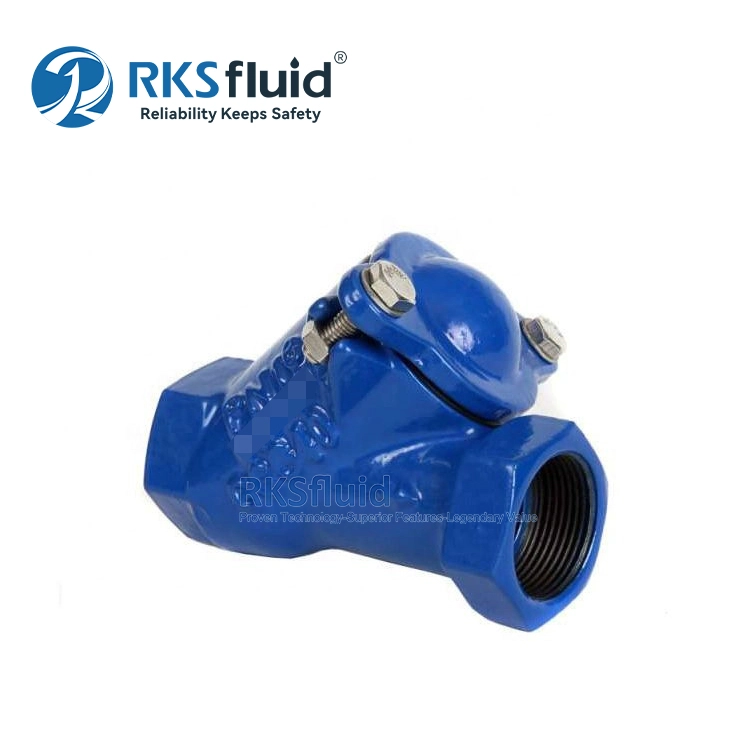

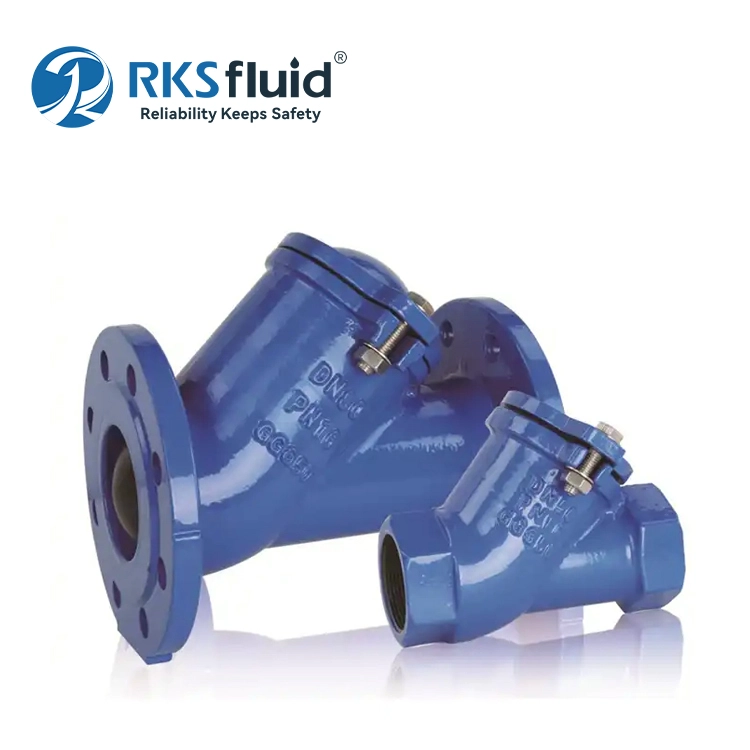

DIN3202 F6 ductile iron ball check valve threaded dn25 dn40 in wastewater
- Valve type:Ball type check valve
- Size:DN25-DN500
- Pressure ratings:PN10 / PN16
- Medium temperature:0℃~+80℃
- Connection:Flange/Threaded
- Media:Water
- Body:Ductile iron, Carbon steel, Stainless steel
- Ball/O-Ring:NBR
- Gasket:SS304
- Power: Auto
- Cover:DI/WCB/CF8/CF8M
- Certificates:CE,WRAS,ISO
The threaded ball check valve is widely used in wastewater, dirty water or high-concentration suspended solid water pipelines. Obviously, it can also be applied to drinking water pressurized pipelines. The temperature of the medium is 0～80℃. It is designed with very low load loss due to total passage and impossible obstacles. It is also a waterproof and maintenance-free valve.
Ductile Iron, epoxy-coated body and bonnet, NBR/EPDM seat and NBR/EPDM-coated aluminum ball.
Either vertically (only upwards) or horizontally installed.
| Design | EN 1171 |
| Flange | EN 1092-2 |
| Face to Face | DIN 12266-1 |
| Operation | Self-montion |
| Medium | Water |
| Temperature | 0-80℃ |
| Seal test | 11/18Bar |
| Body test | 15/24Bar |
| Pressure ratings | PN10/16 |
| Size | DN40-DN500 |
| Material | ductile iron |
 |

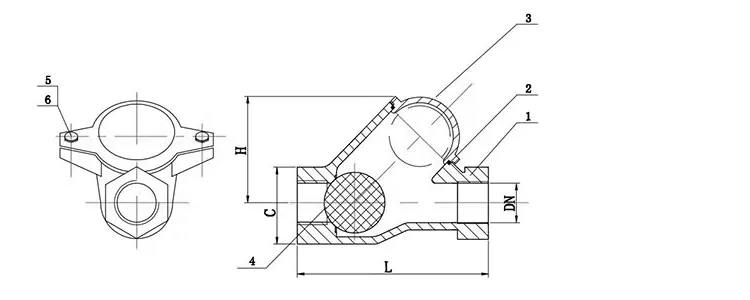

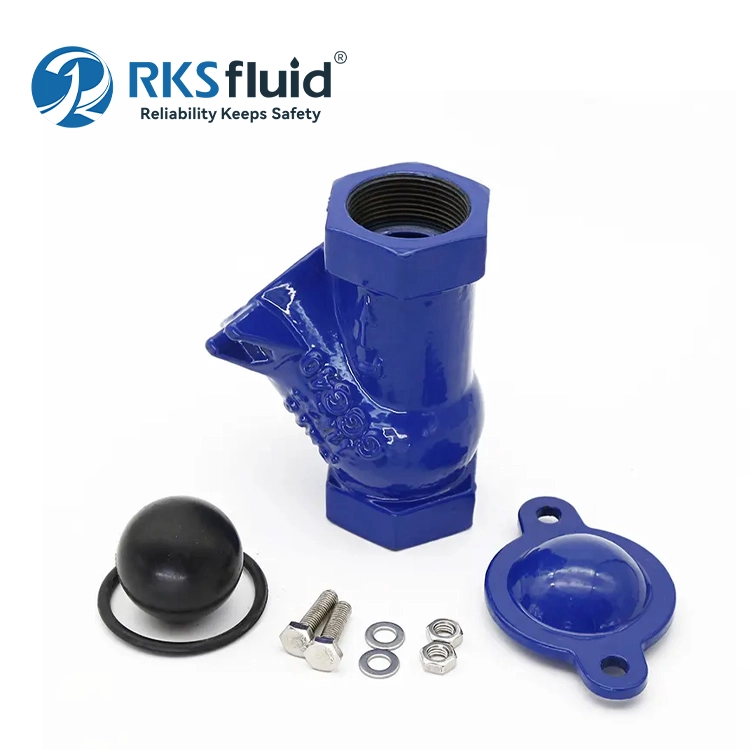

| NO. | Part | Material |
| 1 | Body | GGG25/GGG40 |
| 2 | Gasket | NBR/EPDM |
| 3 | Cap | GGG25/GGG40 |
| 4 | Ball | NBR/EPDM |
| 5 | Bolt | Stainless steel |
| 6 | Nut | Stainless steel |
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 |
| L(mm) | 125 | 132 | 145 | 174 | 200 | 243 |
| H(mm) | 75 | 75 | 85 | 126 | 113 | 165 |
Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
FAQ
Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.
Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.
Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.
Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.
Q: MOQ
A: 1pc for all products.
Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
We got TUV, API, WRAS, CE, ISO certification.
Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.
Q: How could you provide quality service to our customers?
A: RKSfluid own 20 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
