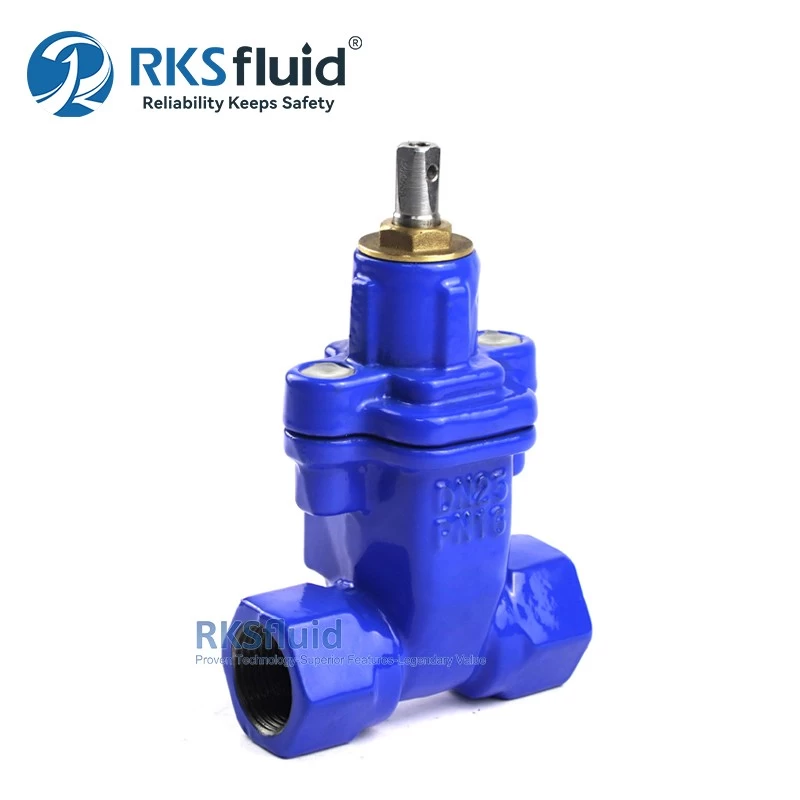

DN25 Ductile Iron Threaded Gate Valve PN16 for Water
- Series: SASQUATCH series soft seal gate valve
- Port size: DN50 - DN900 (NPS2-NPS36)
- Pressure rating: PN10, PN16
- Temperature: 0℃~80℃
- Valve body: Ductile iron:GGG50
- Disc material: GGG40 + EPDM,Ductile iron coated with EPDM
- Seat: EPDM
- Coating: 150-250μm epoxy powder coating
- Connection: Flange
- Medium:Water
- Certificate: CE ,WRAS,API,OHSAS18001:2007,ISO9001:2015
Low pressure drop and 100% watertight, low torque.
Size range: DN20, DN25, DN32, DN40, DN50
Wedge core: brass for DN20-32, DI for DN40-50
· Threaded connection, BSPP, BSPT, NPT
· 100% sealing test
· 100% tightness Bi-directional flow.
· Low pressure drop.
· Detachable in load.
· Screws protected against external dirts WRAS approved for potable water upon request.
· Hydraulic tests according to EN-12266-1,Class A
· Designed to EN1074-2
· BSP threads to EN10226/1 or EN ISO 228-1 G thread NPT threads upon request
 |
| Size | G (inch) BSP thread | L (mm) end-end | H (mm) | P (mm) | Torque (N.m) |
| DN20 | 3/4" | 95 | 145 | 27 | 15N.m |
| DN25 | 1" | 105 | 145 | 30 | 15N.m |
| DN32 | 1 1/4" | 120 | 150 | 32 | 15N.m |
| DN40 | 1 1/2" | 130 | 202 | 37 | 30N.m |
| DN50 | 2" | 150 | 197 | 45 | 30N.m |
 |
Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
FAQ
Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.
Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.
Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.
Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.
Q: MOQ
A: 1pc for all products.
Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
We got TUV, API, WRAS, CE, ISO certification.
Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.
Q: How could you provide quality service to our customers?
A: RKSfluid own 27 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
