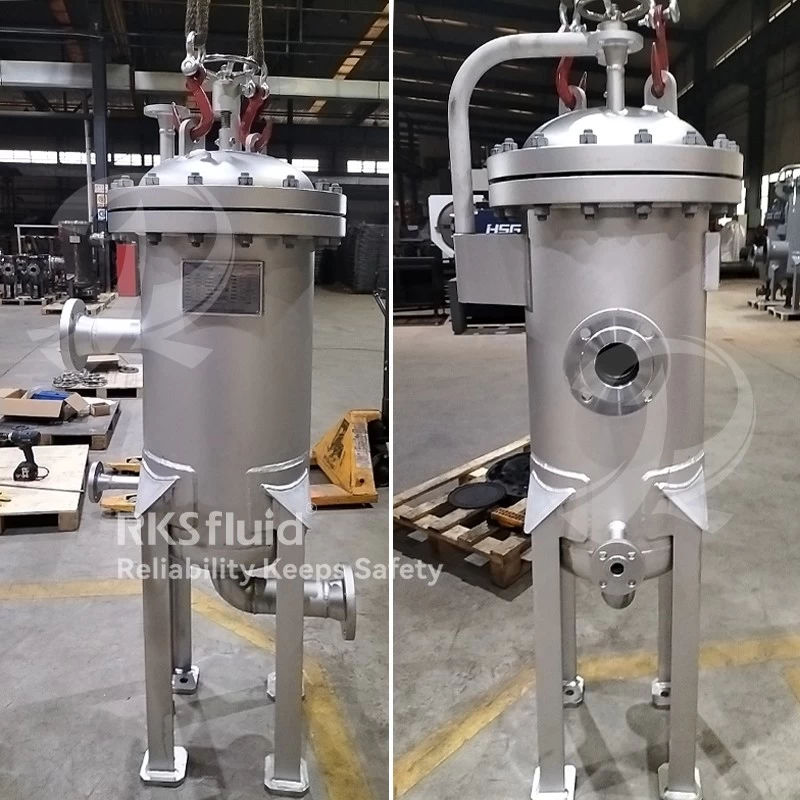

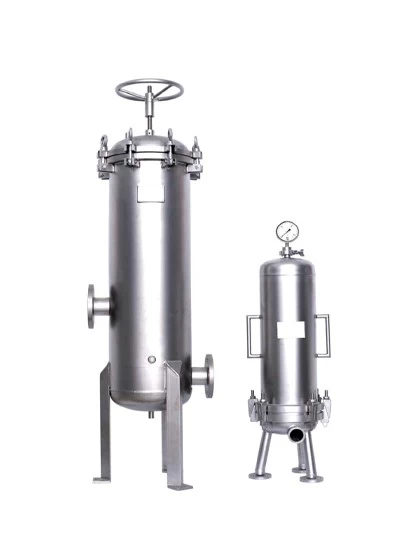

RKS industrial-grade cartridge filters are primarily used for the precision filtration of various fluids in petrochemical and fine chemical processes. They are also widely employed in the security filtration processes of wastewater treatment. This series of filters can remove trace amounts of fine impurities from liquids and are characterized by high precision, high efficiency, and large dirt-holding capacity
Product Advantages
1. The surface treatment includes different processes such as sandblasting and polishing. The contact surface of the medium after polishing reaches 0.6µm, close to sanitary standards.

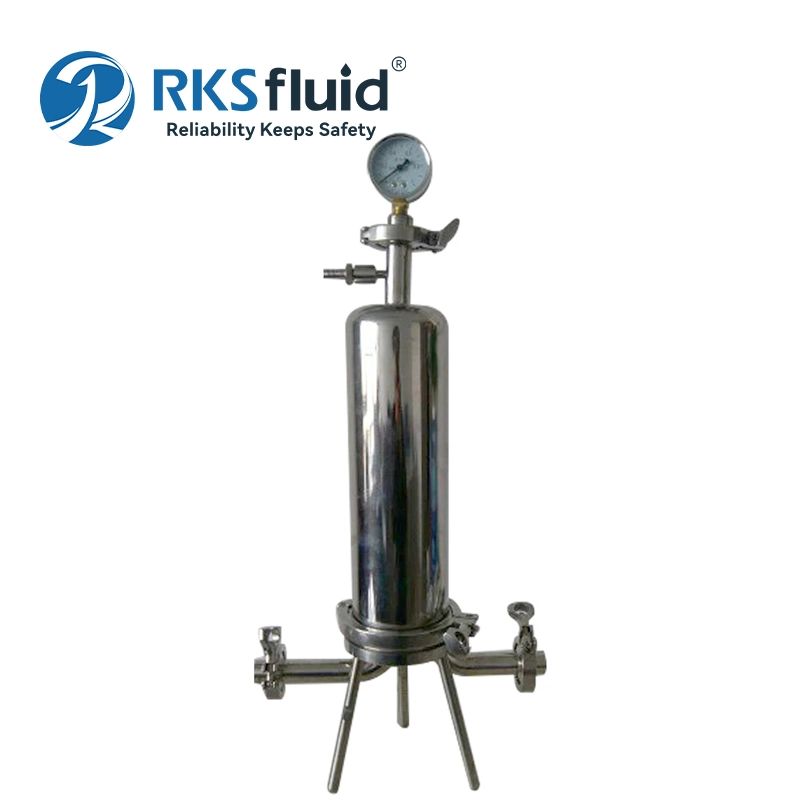

2. For filters with up to 7 cartridges, a clamp design is used, making it easy to open the lid, operate, and perform daily maintenance.

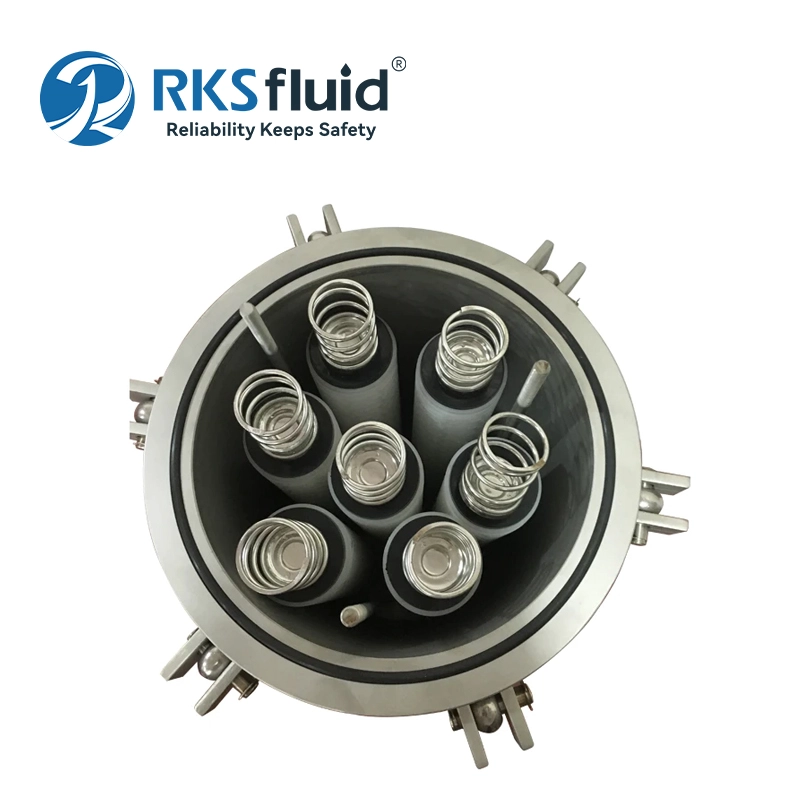

3. Multi-cartridge high-flow filters use a bolt-locking structure, with a unique mechanical spring lifting design, making cartridge replacement simple and convenient.

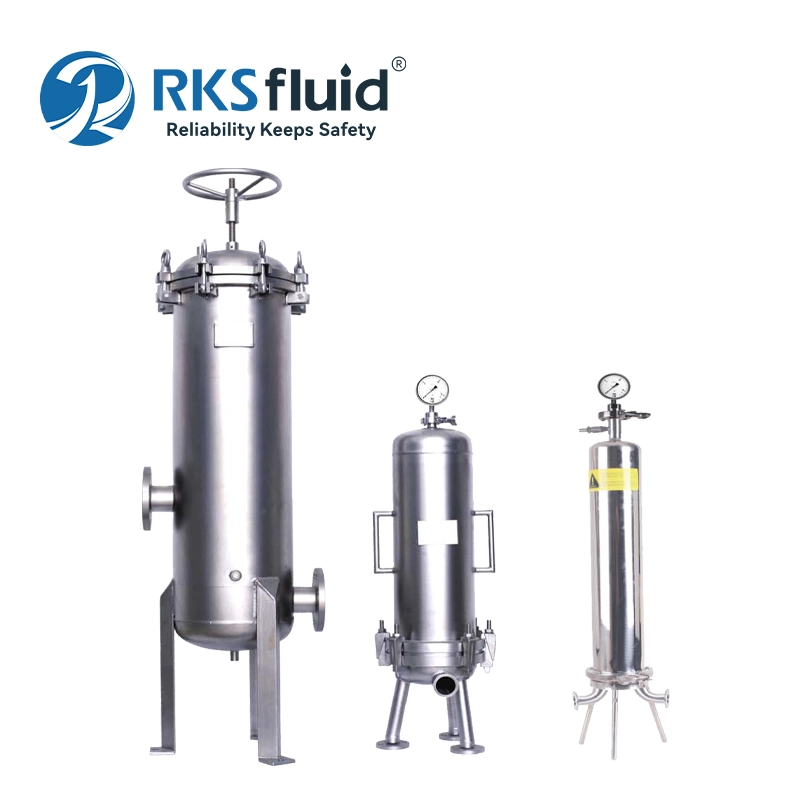

4. Complete range of filter specifications: from single cartridge to 150 cartridges.

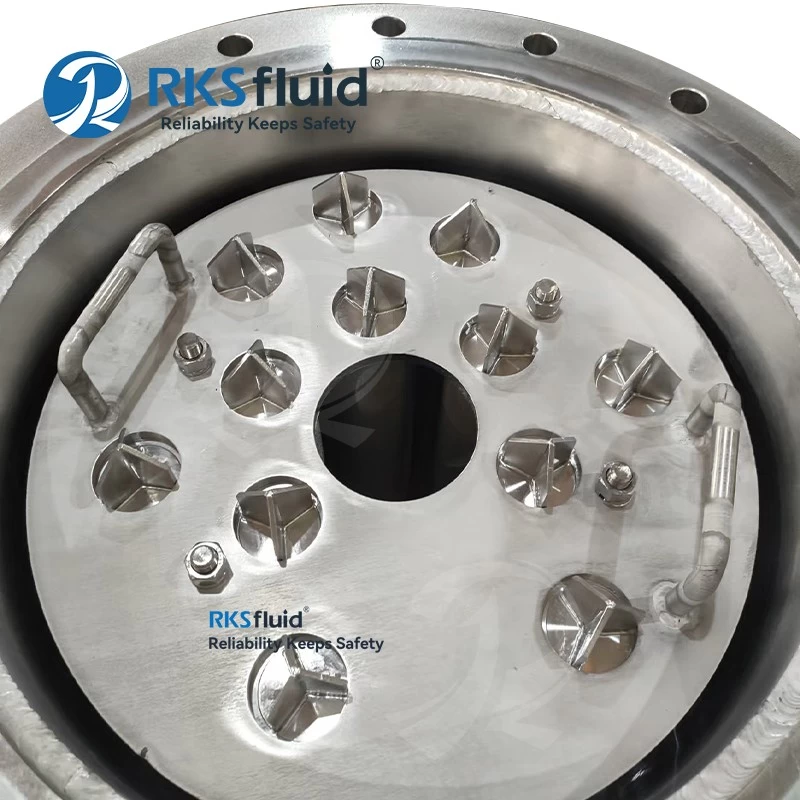

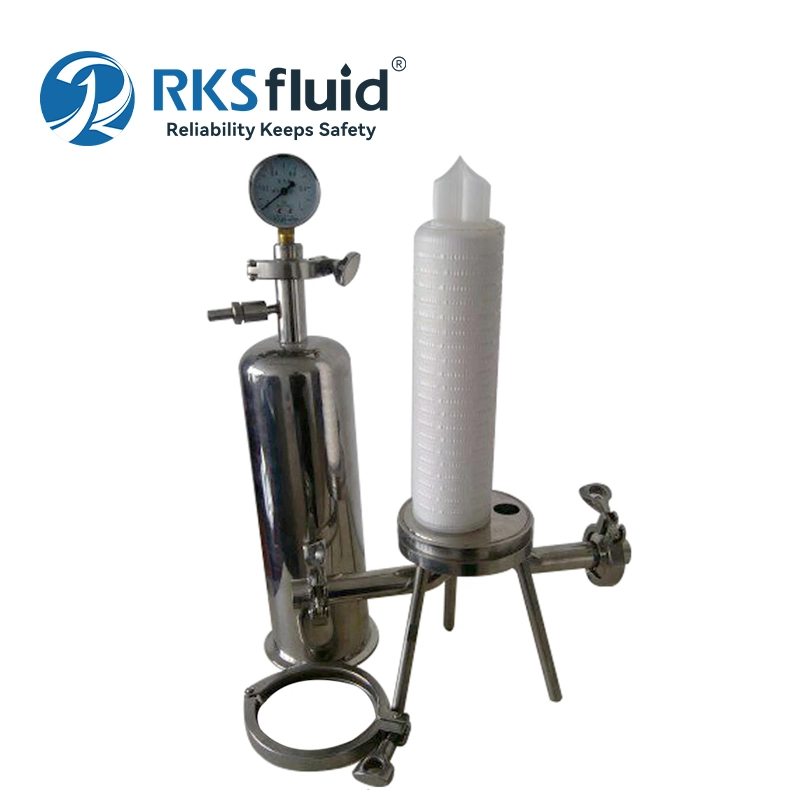

5. Industrial-grade cartridge filters are suitable for installing both double open end (DOE) cartridges and cartridges with 222 and 226 interfaces.
Technical Parameters
| Body Material | SS304, SS316L |
| Surface Treatment | Sandblasting, Mechanical Polishing, Electropolishing |
| Optional Filter Cartridges | DOE, 222, 226 connections |
| Optional Filtration Precision (μm) | 0.5–100 |
| Filter Cartridge Length (inches) | 10–60 |
| Filter Cartridges Qty. (pcs) | 1–150 |
| Design Pressure | 0.6 MPa, 1.0 MPa |
| Design Temperature | ≤130°C |
| Inlet and Outlet Connections | Quick connect, Clamp, Flange |
| Vent Valve Connection | G 1/2" (≤12 cartridges), G 1" (>12 cartridges) |
| Drain Valve Connection | G 3/4" (≤12 cartridges), G 1" (>12 cartridges) |
| Pressure Gauge | M14 × 1.5 |
