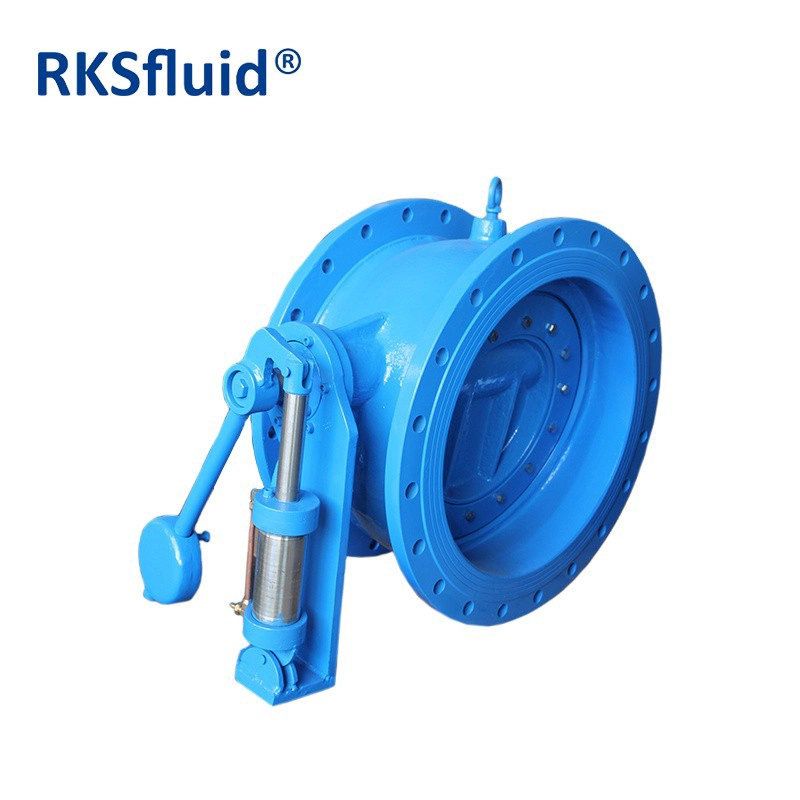

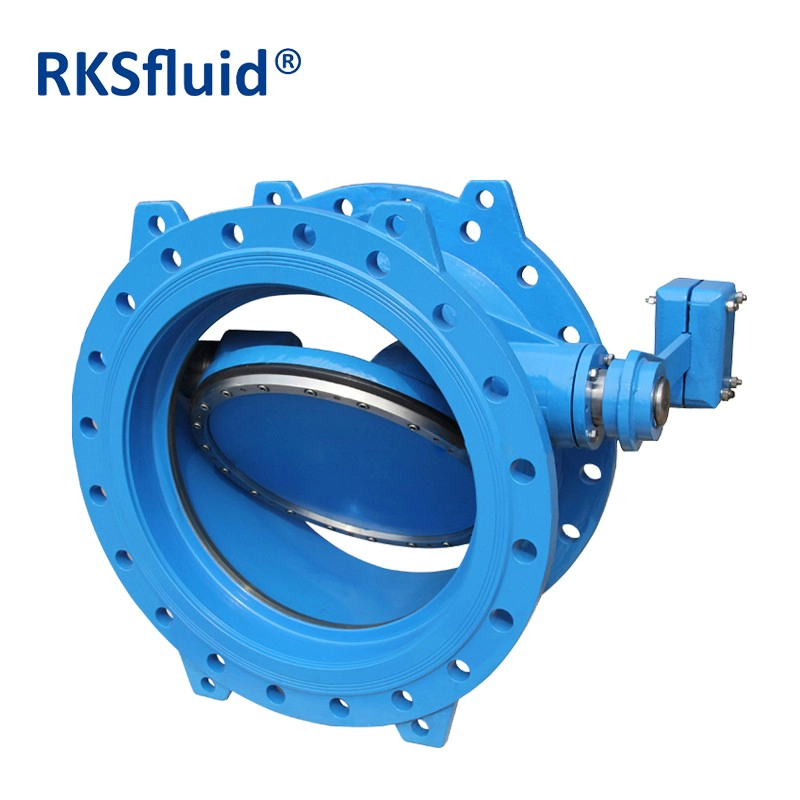

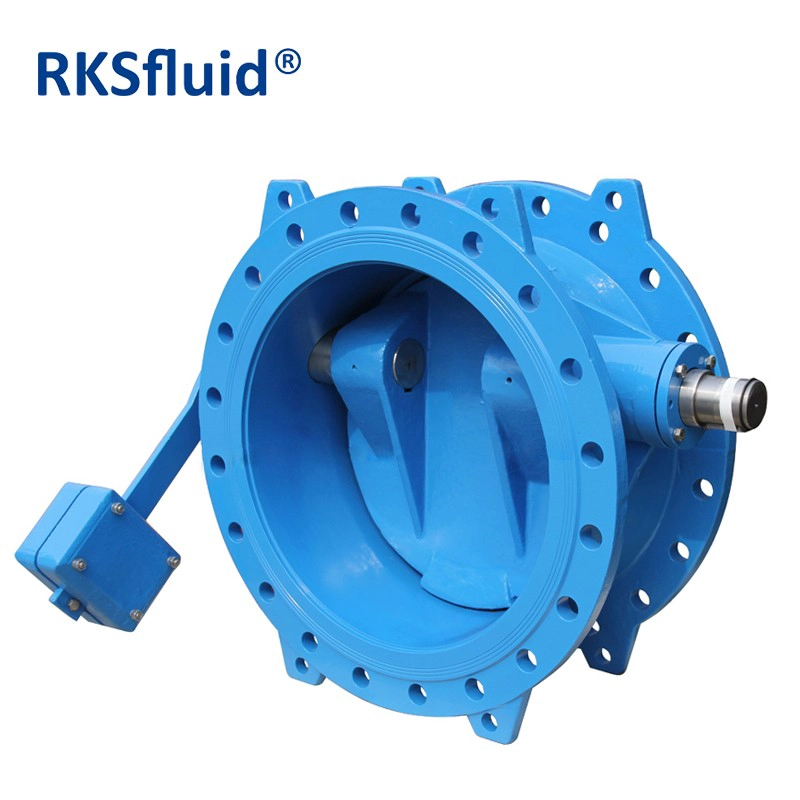

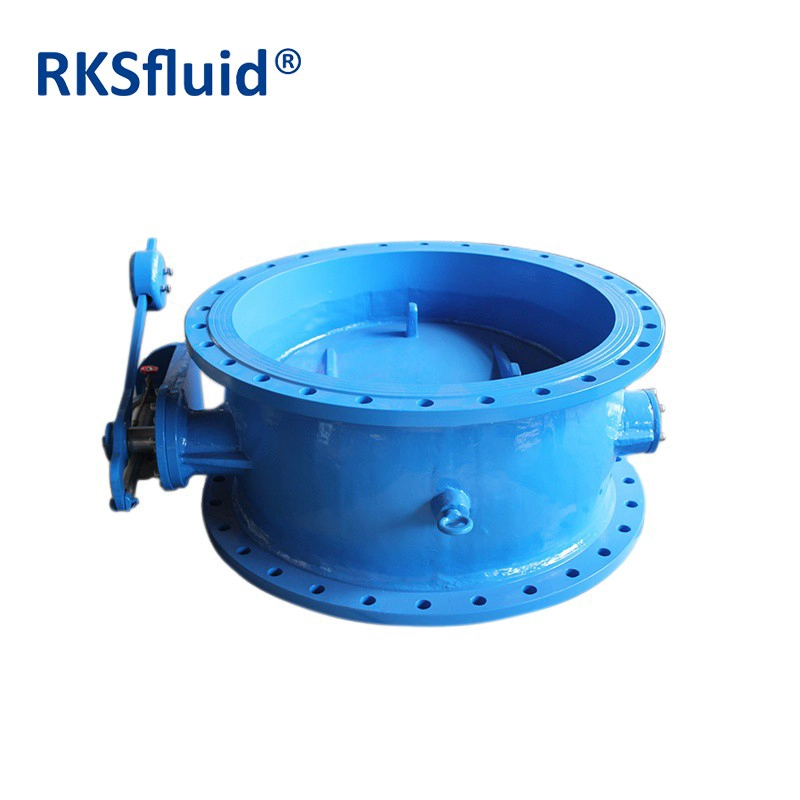

RKSfluid WCB DIN BS EN DN200 8" Ductile iron rubber sealing tilting disc butterfly buffer check valve
- Series:RKS TILTING BUTTERFLY CHECK VALVE
- Port Size:DN100-3000mm
- Power:Manual,Pneumatic,Elecrtic
- media:Drinking water,sewage
- Structure:Check valve
- Standard:ISO/BS/DIN/AWWA/API
- Temperature: -20℃~+80℃
- Body:DI/CI/WCB/SS
- Disc/Trim:DI/CI/WCB/SS
- Shaft:SS420,SS431,SS316
- Body Ring:SS304,SS316,Brass
- Disc Ring:EPDM
- Coating:Min 300 Microns
This series tilting check valves are suitable to be used at the exit of the pump whose medium is ater. It is used to prevent or reduce medium back from water hammer. So it can protect the pipeline system. Suitable temperature≤80°C
Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
FAQ
Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.
Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.
Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.
Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.
Q: MOQ
A: 1pc for all products.
Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
We got TUV, API, WRAS, CE, ISO certification.
Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.
Q: How could you provide quality service to our customers?
A: RKSfluid own 20 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
