Resilient Seat Butterfly Valve
- Size: DN32 - DN2000
- Pressure Ratings: PN6, PN10, PN16
- Connections: Wafer/Lug/Double flange
- Temperature: -10°C ~ +80°C
- Body Materials: Ductile Iron
- Medium: Water/Oil/Gas
- Design Standard: BS EN593
- Face to Face: ISO 5752
- Flange Standard: ASME B16.5 BS EN1092
- Applications: HAVC, Fire protection,water treatment,irrigation, CDU
- Product Details

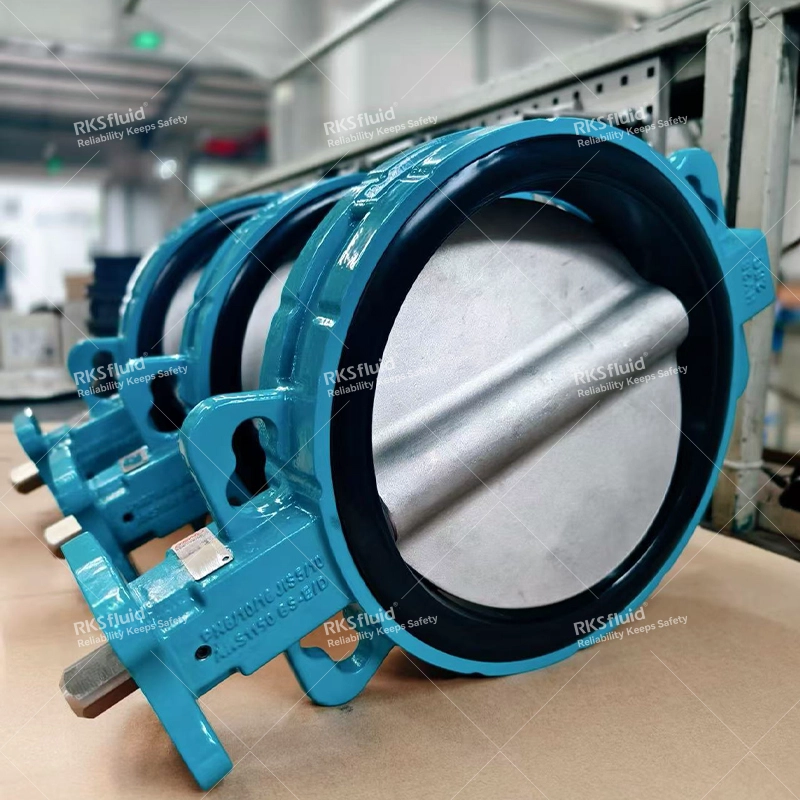

RKSfluid Center Line Butterfly Valve is a resilient seated concentric butterfly valve designed for reliable isolation and flow control in water transmission, HVAC, fire protection, irrigation and industrial utility systems.
Available in wafer, lug and double flange configurations from DN32 to DN2400, the valve provides cost-effective shut-off performance with low operating torque and compatibility with manual, gearbox, pneumatic and electric actuators.
| Size | DN32 - DN2400 （NPS1 1/4-NPS96) |
| Pressure ratings | PN6 - PN10 - PN16 |
| Temperature range | -10℃-+80℃ |
| Disc Materials | Ductile iron + Nylon, Ductile iron + Epoxy, CF8, CF8M, Duplex stainless steel |
| Seat material | NBR, EPDM, VITON |
| Connection | Wafer/Lug/Double flange,U-Section |
Key Features
- Bubble-tight shut-off performance
- Low operating torque for manual and automated operation
- Replaceable resilient seat design
- Bidirectional sealing capability
- Multiple disc and seat material combinations available
- ISO 5211 top flange for actuator mounting

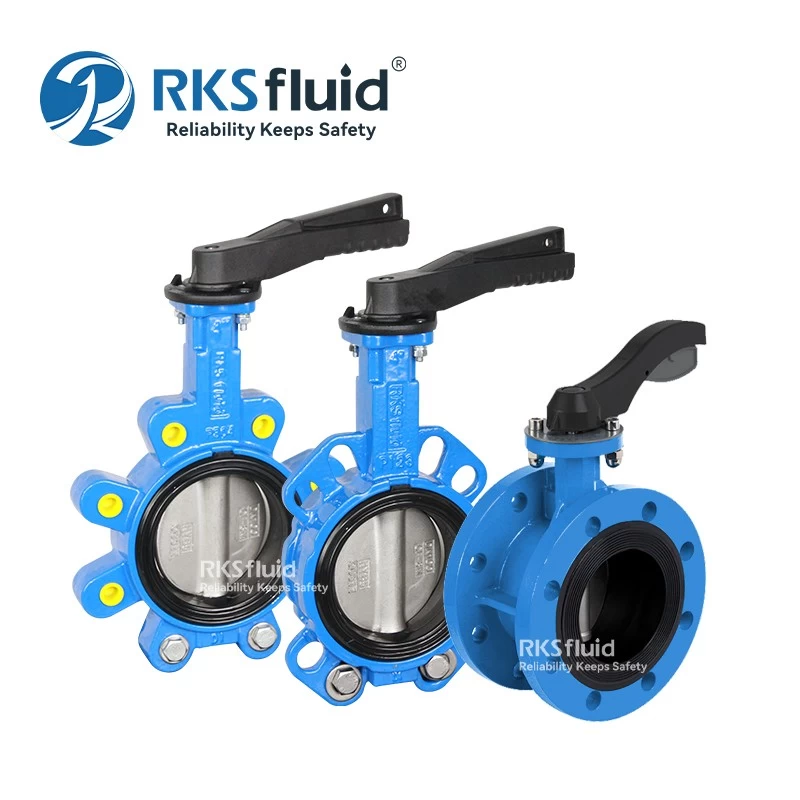

- Available in wafer, lug and double flange configurations
- Suitable for water, HVAC and utility pipeline systems
Configuration Selection Guide
| Configuration | Typical Applications |

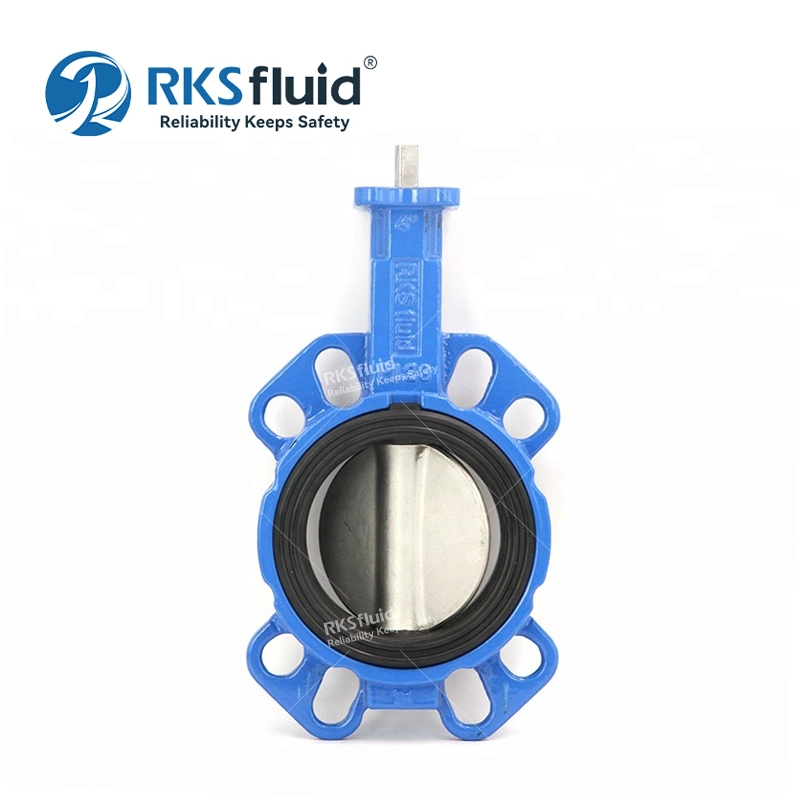

| Wafer Type | General water systems,HVAC,pump stations |

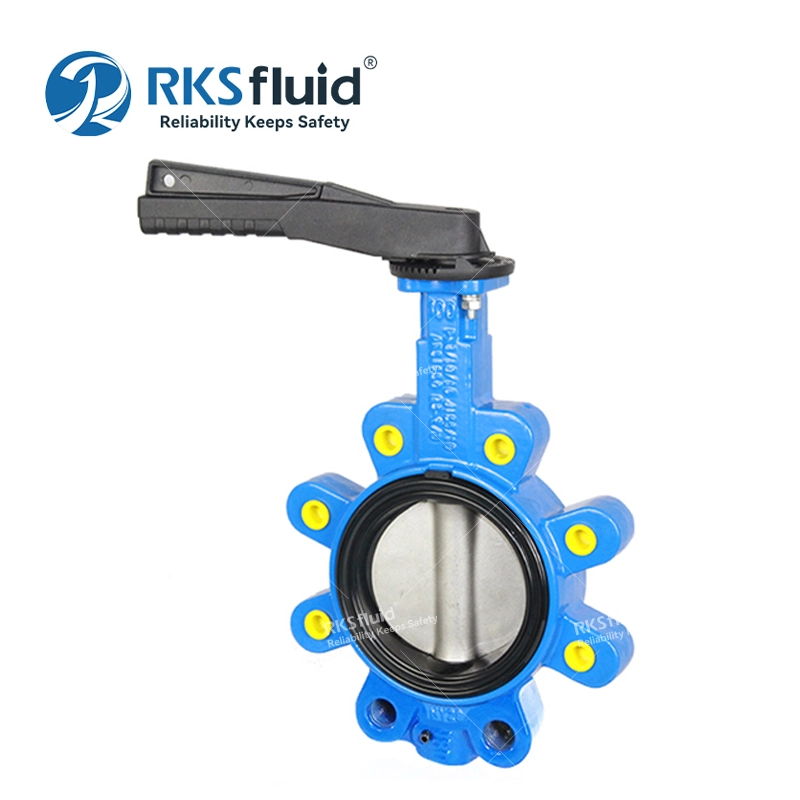

| Lug Type | End-of-line service,maintenance isolation |
| Double Flange Type | Large diameter pipelines and buried installations |
| U-Section Type | Large transmission mains and municipal water projects |
Need assistance with your project requirements?
The RKSfluid engineering team provides professional support for product selection, technical specifications and customized solutions to help ensure the right solution for your application.
Contact us for technical support or a quotation.
FAQs
Center line butterfly valves are suitable for water, oil and gas applications, including HVAC, fire protection, water treatment, irrigation and CDU systems. They are commonly selected where compact design, reliable shut-off and easy operation are required.
The connection should match the pipeline layout and installation requirements. RKSfluid valves are available in wafer, lug, double flange and U-section configurations. Flange dimensions and installation space should be confirmed before selection.
RKSfluid Center Line Butterfly Valves are available in PN6, PN10, PN16 and Class 150 pressure ratings. The appropriate rating should be selected according to the pipeline design pressure and applicable project specifications.
NBR, EPDM and VITON seats are available. EPDM is commonly used for water, while NBR is suitable for certain oil applications. VITON can be considered for applications requiring higher chemical and temperature resistance.
Disc options include ductile iron with nylon or epoxy coating, CF8, CF8M and duplex stainless steel. Material selection depends on the medium, corrosion conditions, pressure and project requirements.

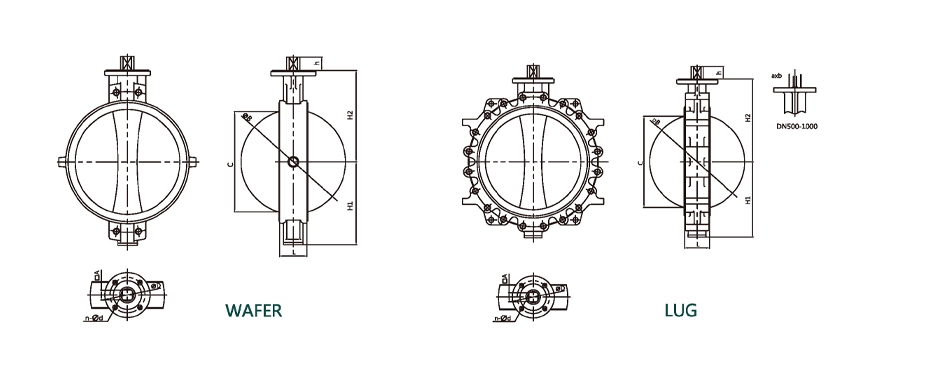

The valve is designed according to BS EN 593. Face-to-face dimensions follow ISO 5752 for wafer, lug and double flange types, and EN 558 Series 20 for U-section designs. Flange requirements can be selected according to the application.
RKSfluid Center Line Butterfly Valves are available from DN32 to DN2000, covering small- to large-diameter pipeline applications. The final selection should consider pipe diameter, pressure rating, connection type and operating conditions.
Yes. Different body, disc, seat and connection configurations are available. For EPC and project orders, specifications such as medium, pressure, temperature, flange standard and installation conditions can be reviewed for proper valve selection.
