Water Supply DN100 PN16 Tapping Saddle for PE & PVC Tubes OnlyWater Supply DN100 PN16 Tapping Saddle for PE & PVC Tubes OnlyWater Supply DN100 PN16 Tapping Saddle for PE & PVC Tubes OnlyWater Supply DN100 PN16 Tapping Saddle for PE & PVC Tubes Only

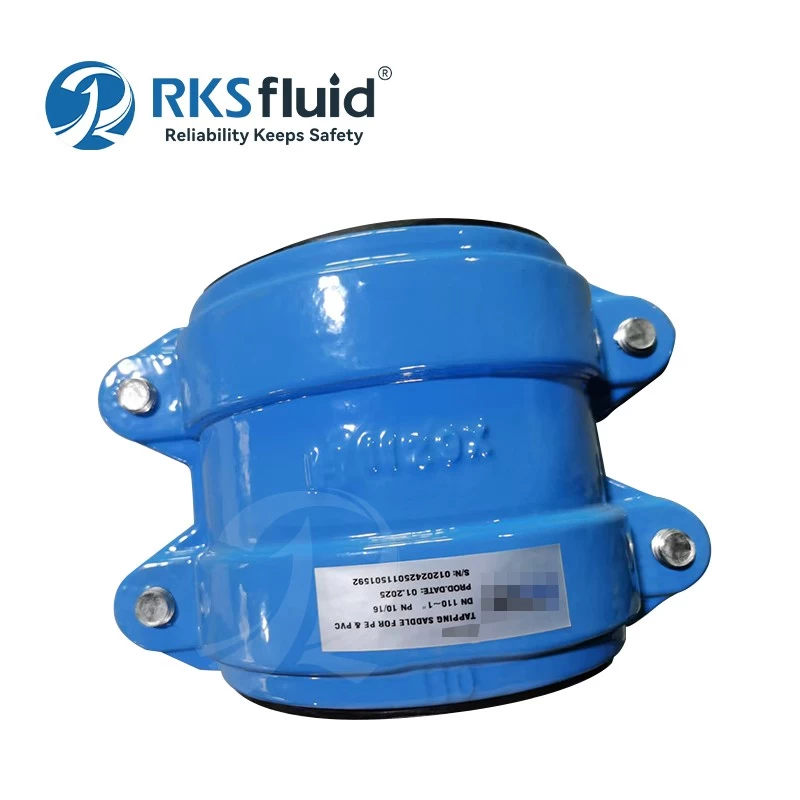

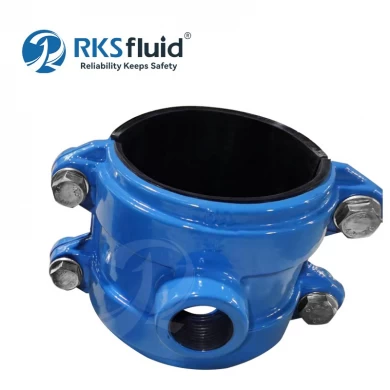

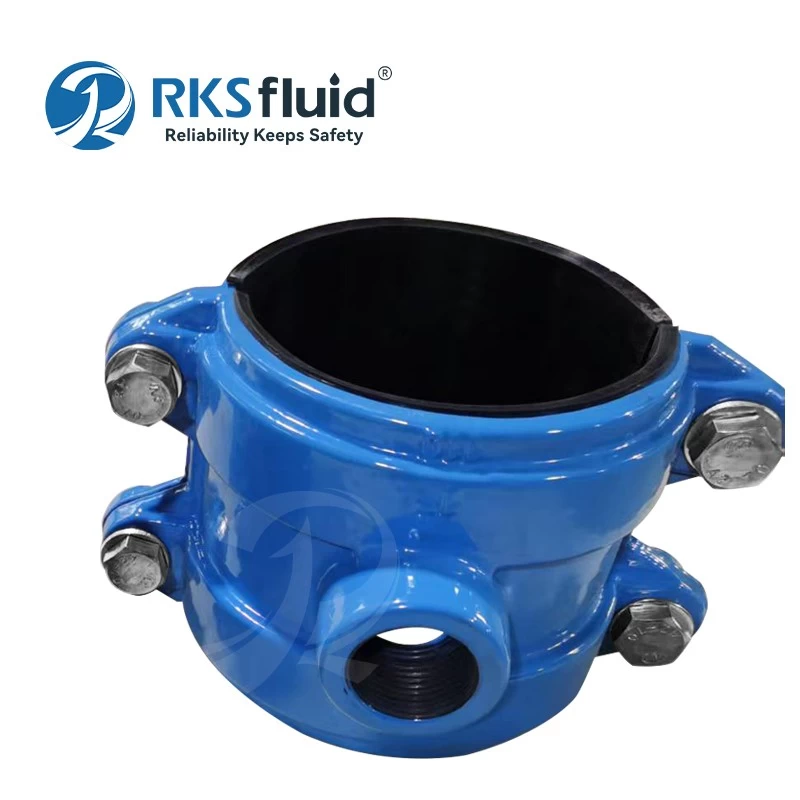

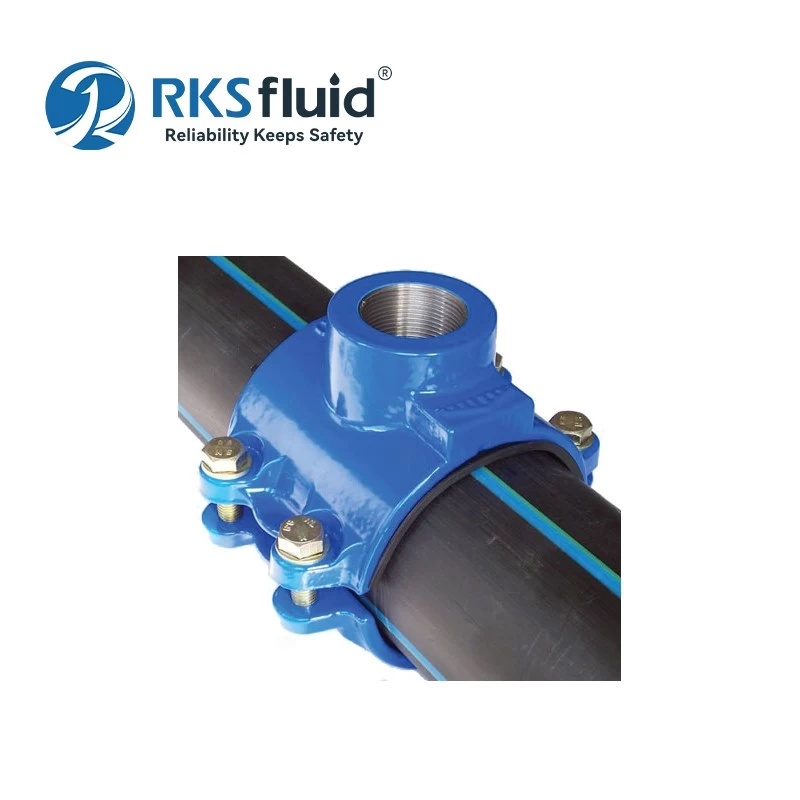

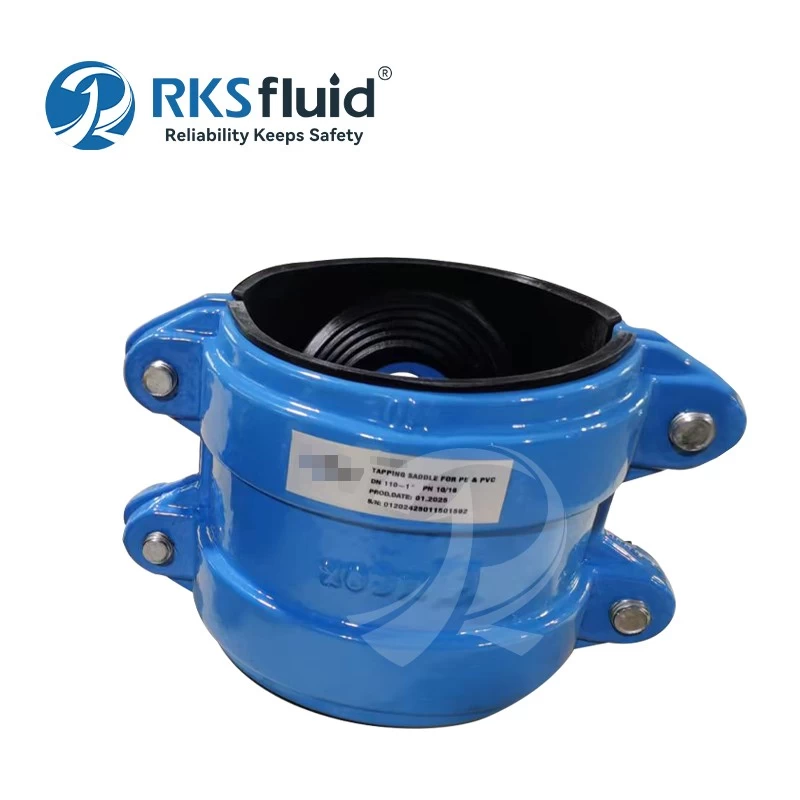

Water Supply DN100 PN16 Tapping Saddle for PE & PVC Tubes Only

  • Series: Cyclopes Series Tapping Saddle
  • Size: DN25 - DN315
  • Pressure: PN10, PN16
  • Body material: Ductile iron
  • Gasket: EPDM/NBR
  • Bolts: 4.8/8.8 carbon steel galvanized, SS304, SS316
  • Medium: Air, Water
  • Certificate: CE,WRAS,API,OHSAS,ISO



1. This product is specially designed for connecting PVC tubes. The connect range is from DN50-DN315. The customer has some special requirements for the product that can also be designed and manufactured to meet customer requirements.

2. The simplicity and versatility of this product makes the product very easy to install and the entire line can be installed in a stressful manner. It eliminates the need to shut down the entire line during the entire product installation without the interruption for pipeline, can bring great convenience to customers.

3. Product design and manufacturing in accordance with ISO 9001:2008 system, we use ductile iron material as the main body of product, surface corrosion materials through the most stringent WRAS certification, So it can be used for drinking water well.

4. We provide EPDM, NBR, SBR, nuts and bolts for carbon steel and stainless steel, etc., and long-term anti-rust protection. For this product we provide excellent protection from transportation, warehousing, site and corrosion damage.



NO. Name Material  Standard
1 Body GGG50 EN1563
2 Body cover GGG50 EN1563
3/5 Rubber Ring EPDM ISO4633
4 Bolt Stainless steel 304  ISO898
  Anti-corrosion Coating Epoxy Resin BS EN 14901





Ⅰ Business area: fluid control products, technology and environmental protection products.

Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.

Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.

Ⅳ We have set up a research and development center in Houston, Texas, in the United States.

Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.

VI Main production: butterfly valve, ball valve, gate valve, check valve, Air valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.

FAQ:

Q1: How long is the delivery time?
A1: Generally it's 5-10 days we have stock. Or it's 15-90 days depend on different product and quantity.


Q2: What about the payment term?
A2: T/T 30% deposit, balance payment after finished production before shipment. Or as discussed.
Q3: Can I have a sample order?
A3: Yes, we agree sample order, mixed different models is also acceptable.


Q4: What's your MOQ?
A4: We can support 1 pc order. Welcome you to check our quality.


Q5: What's your quality inspection? Do you test all your goods before delivery?
A5: Yes, 100% test. It integrates R&D, casting, production, processing, painting, assembly, testing, sales and after-sales service, and strict quality requirements, according to GB, ASME, API, DIN standard, and we have gained ISO9001;2008, CE, and TUV certification.


Q6: Could I customize special request valve or new design products?
A6: We have own R&D team and more than 70 researchers and engineers. Can give you the best support on quality management and techniques, meet your different needs.


Q7: How does your factory do regarding quality control?
A7: Quality is priority. Valve always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001;2008, CE, TUV, authentication.
