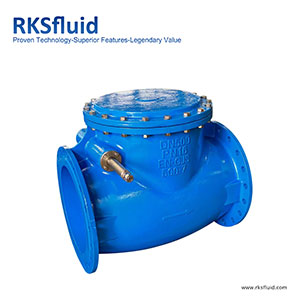

Swing check valve

Author : RKSfluid Source : Release on : 2022-09-21 15:15:50

Size	DN50-DN750(NPS 2 - NPS 30)
Pressure Ratings	10bar/16bar
Temperature Range	-20℃ ~ +80℃
Media	Oil,Water,Gas,Sewage,etc.
Sealing	Resilient Sealing（EPDM/NBR）/ Metal Seated（Brass/Bronze）
Disc	GGG50+EPDM or NBR,GGG50+Brass or Bronze

Swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow.

Swing check valves are available in both resilient and metal sealing. It’s normally recommended for water and wastewater systems applications because of the simple construction, low pressure drop across the valve, and field service ability.

I - Design:BS5153
II - Inspection & Test:EN12266
III - Face to Face Dimension:EN558-1-10
IV - End Flanges Dimension: EN1092-2
