ANSI water treatment valve ductile iron water level controller float ball type control valve PN10 PN16ANSI water treatment valve ductile iron water level controller float ball type control valve PN10 PN16ANSI water treatment valve ductile iron water level controller float ball type control valve PN10 PN16

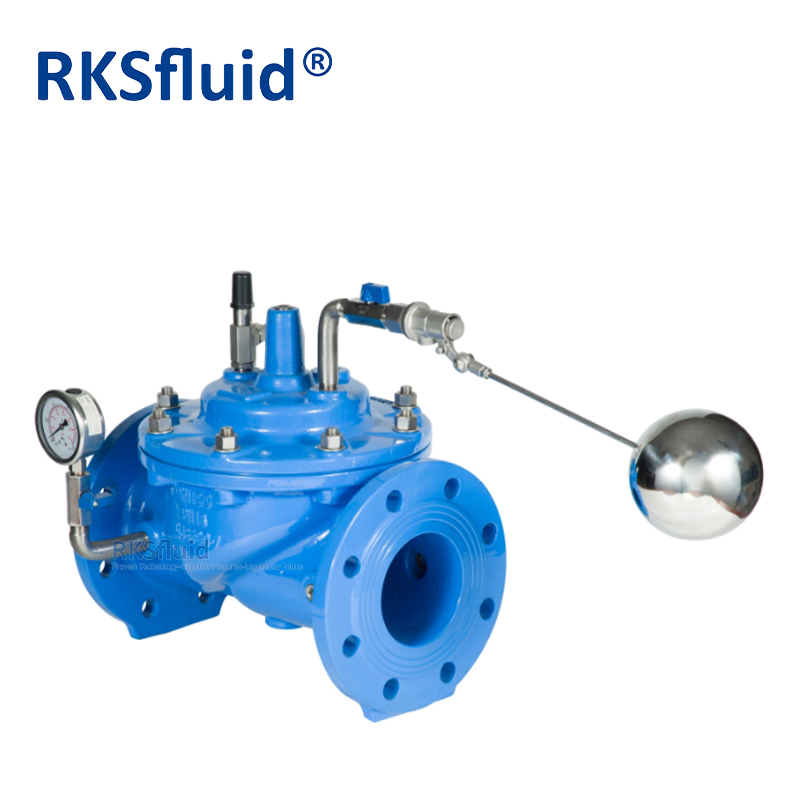

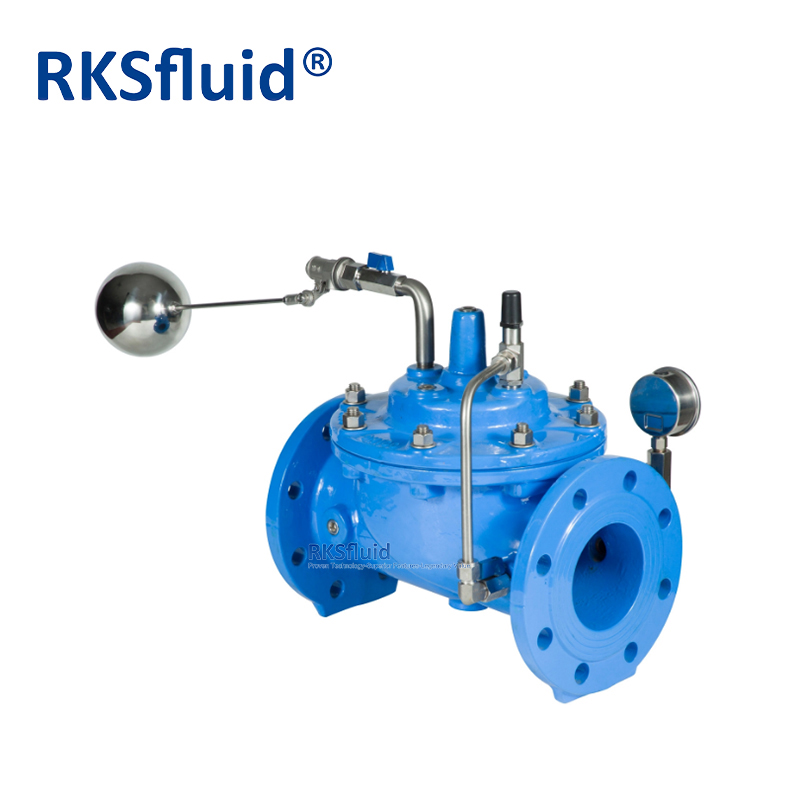

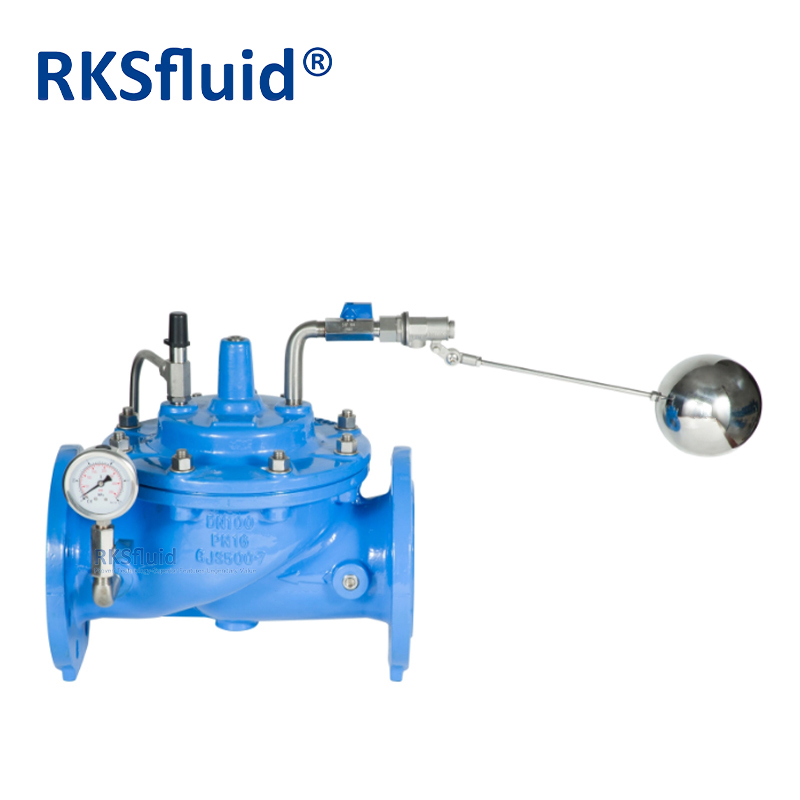

ANSI water treatment valve ductile iron water level controller float ball type control valve PN10 PN16

  • Product Name:Automatic Hydraulic Control Valve
  • Size:DN40-DN1200
  • Working Medium:Water, Oil
  • Temperature:0°C~70°C
  • Body:DI/SS/Bronze
  • O-ring:NBR/EPDM/VITON
  • Seat: SS/Brass/Bronze
  • Material:Ductile Iron/Stainless Steel/Cast Steel/Bronze/Aluminum Alloy
  • Design Standards:CJ/T 219 & JB/T 10674 & EN 1074-5
  • Pressure Level:PN10, PN16, PN25
  • Stress Test Standard:GB/T 13927 & ISO 5208 &EN12266-1
  • Flange drilling standard:GB17241.6; EN1092-2; ISO7005-2; ANSI / JIS / AS2129
  • Structure Length:GB 12221 & EN558-1
  • Face to Face:GB 12221 / EN 558-1 / ISO 5752 Series 1
The float ball valve is used to accurately control the water level of the water tank.
When the water level reaches the set upper limit, the float guide valve is closed, the main valve is closed, the pipeline stops the water supply;
When the water level drops, the float valve opens, the main valve opens, and the pipeline begins to supply water.
The float pilot valve can be installed in the tank alone or with the main valve.



Application Area
- Water Treatment
- HVAC
- Irrigation System
- Pumping
- Smart Water Control
- Power Station
- Desalination
- City/building water supply

 Size  DN40-DN1200
 Working Medium  Water
 Temperature  0℃~70℃
 Material  Ductile Iron/Stainless Steel/Cast Steel/Bronze/Aluminum Alloy

 DN  L  H  H1  DN  L  H  H1
 40  230  139  85  250  730  476  205
 50  230  139  85  300  850  526  232
 65  290  159  95  350  980  585  262
 80  310  179  102  400  1100  624  292
 100  350  214  112  500  1250  720  360
 125  400  278  127  600  1450  835  424
 150  480  333  145  800  1850  1110  515
 200  600  407  172  1000  2250  1350  630



Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts







FAQ
Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.

Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.

Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.

Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.

Q: MOQ
A: 1pc for all products.

Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
   We got TUV, API, WRAS, CE, ISO certification.
   Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.

Q: How could you provide quality service to our customers?
A: RKSfluid own 20 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
