DIN F4 DN80 PN16 Resilient Sealing Gate ValveDIN F4 DN80 PN16 Resilient Sealing Gate ValveDIN F4 DN80 PN16 Resilient Sealing Gate ValveDIN F4 DN80 PN16 Resilient Sealing Gate ValveDIN F4 DN80 PN16 Resilient Sealing Gate Valve

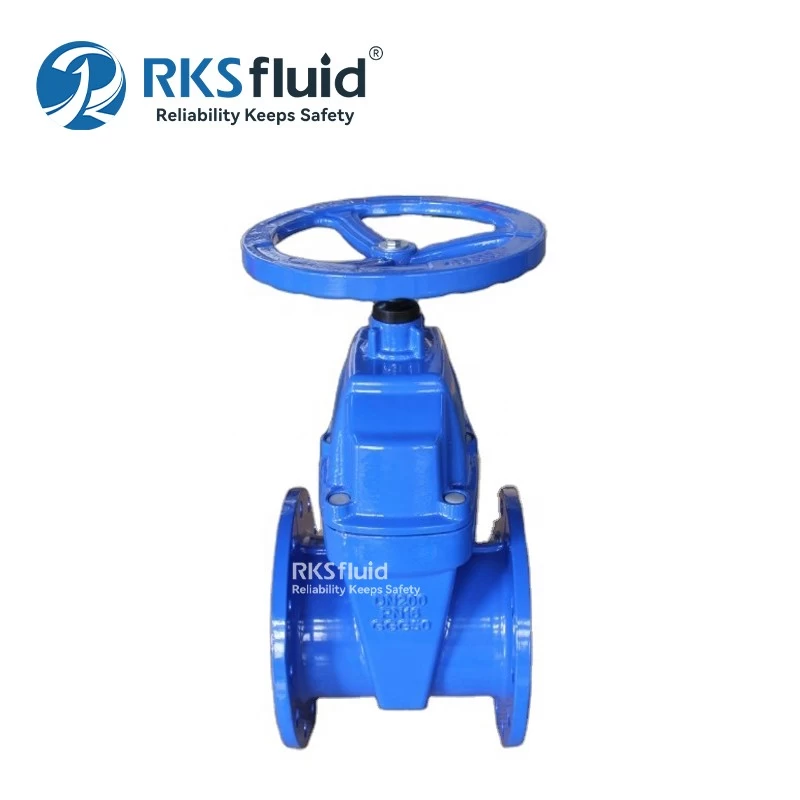

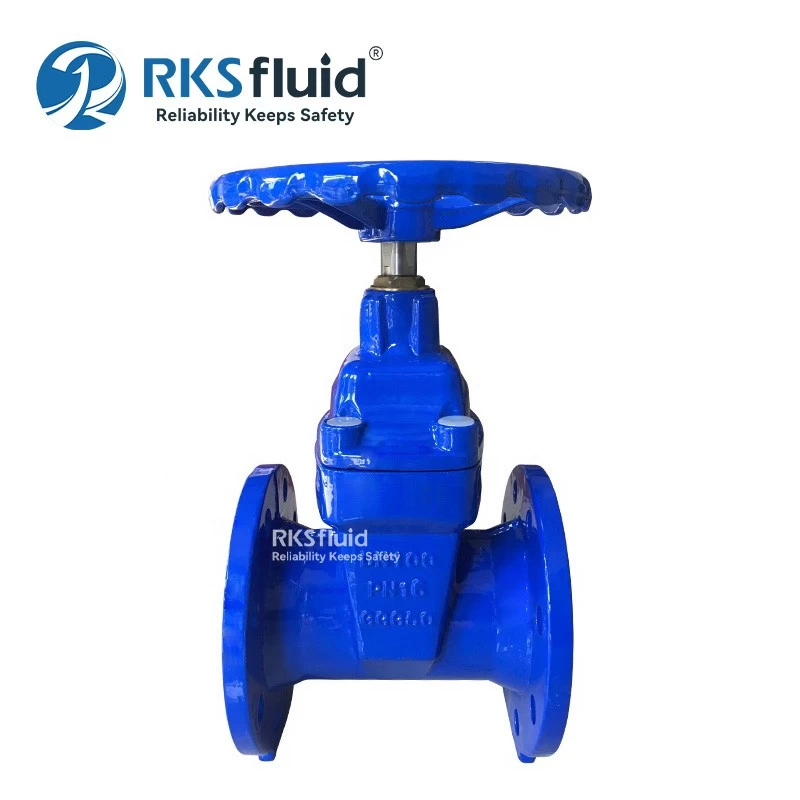

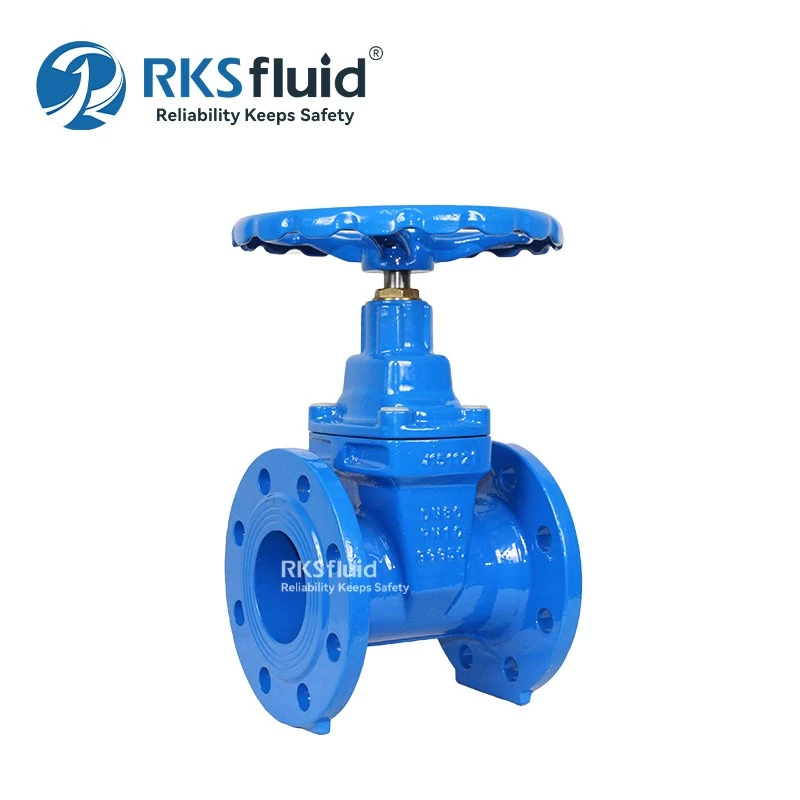

DIN F4 DN80 PN16 Resilient Sealing Gate Valve

  • Series: SASQUATCH series soft seal gate valve
  • Port size: DN50 - DN900 (NPS2-NPS36)
  • Pressure rating: PN10, PN16
  • Temperature: 0℃~80℃
  • Valve body: Ductile iron:GGG50
  • Disc material: GGG40 + EPDM,Ductile iron coated with EPDM
  • Seat: EPDM
  • Coating: 150-250μm epoxy powder coating
  • Connection: Flange
  • Certificate: CE ,WRAS,API,OHSAS18001:2007,ISO9001:2015

Gate valve is mainly used to connect and cut off the medium in the pipeline by rotating the stem. For installation in pipelines and water distribution networks,irrigation, sanitation systems.Used to close off pipes and facilitate work on the network of pipes.
Flange dimension: EN1092-2 / BS4504
Face to Face Length: DIN F4 / DIN F5 / BS 5163

Ⅰ Business area: fluid control products, technology and environmental protection products.

Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.

Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.

Ⅳ We have set up a research and development center in Houston, Texas, in the United States.

Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.

VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.

FAQ

Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.

Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.

Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.

Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.

Q: MOQ
A: 1pc for all products.

Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
   We got TUV, API, WRAS, CE, ISO certification.
   Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.

Q: How could you provide quality service to our customers?
A: RKSfluid own 20 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
