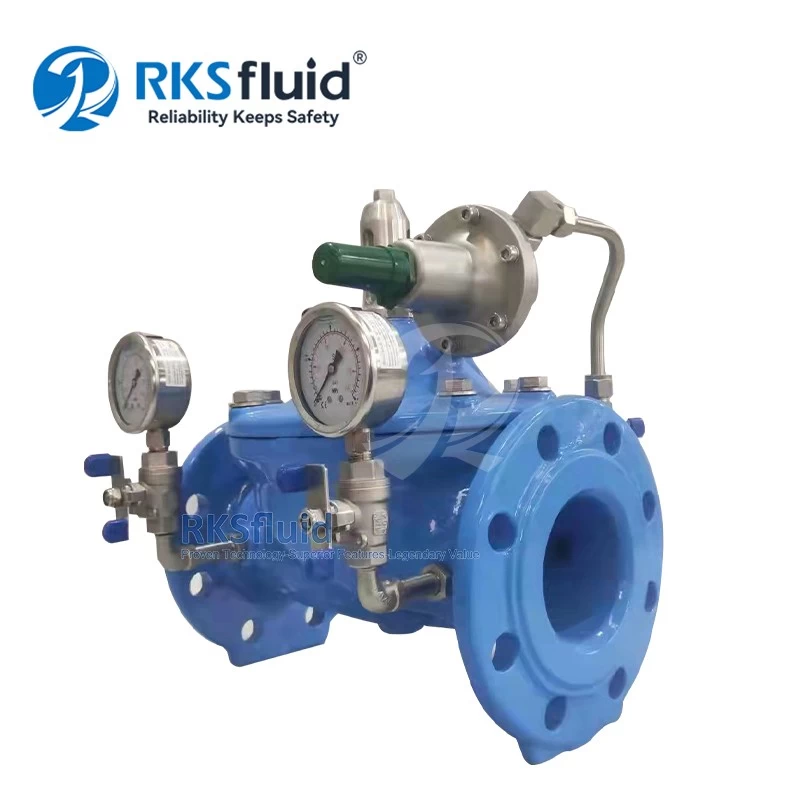

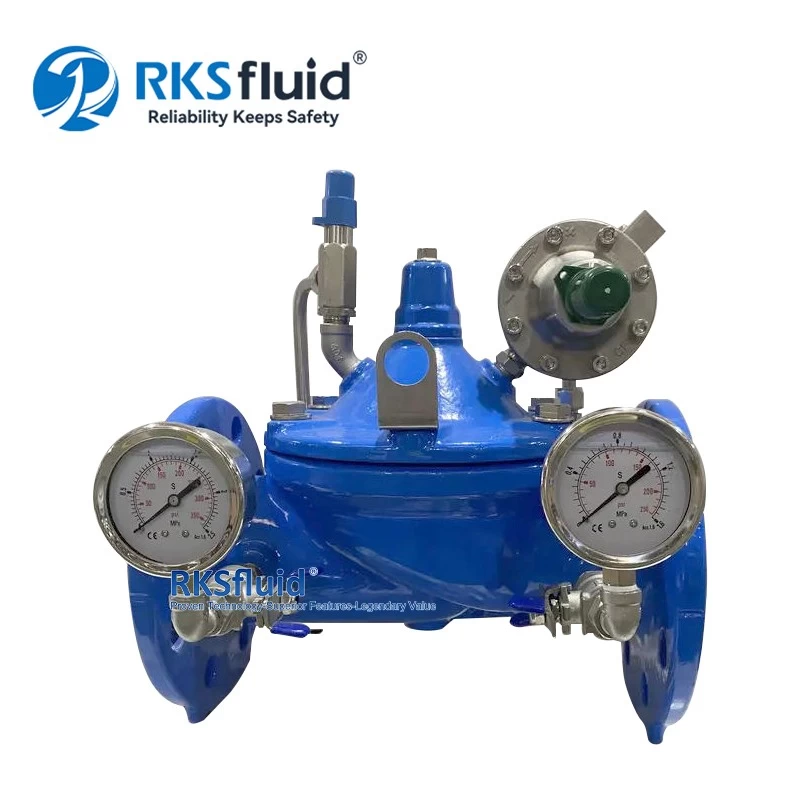

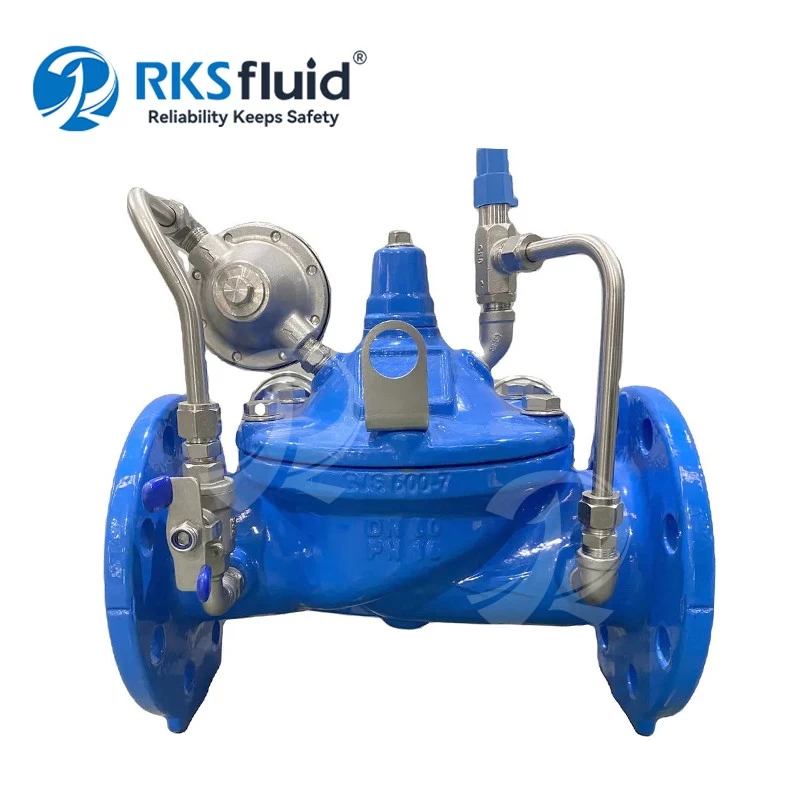

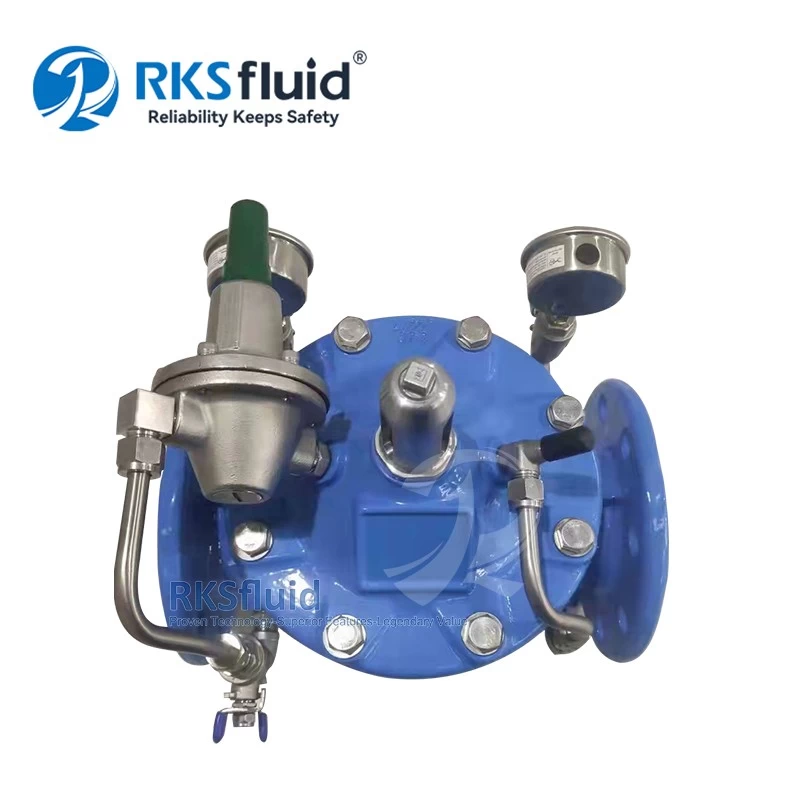

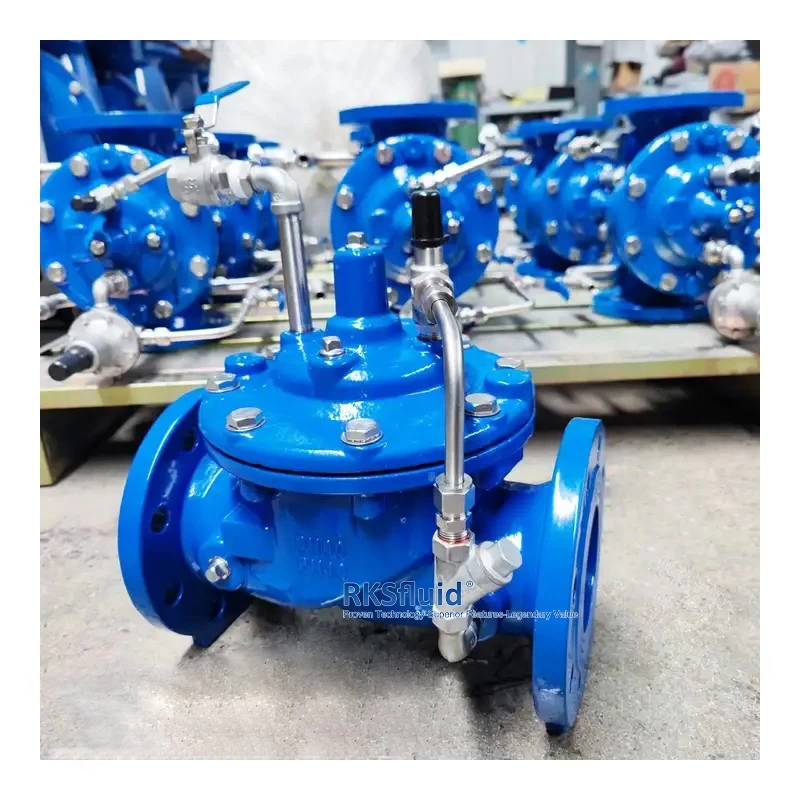

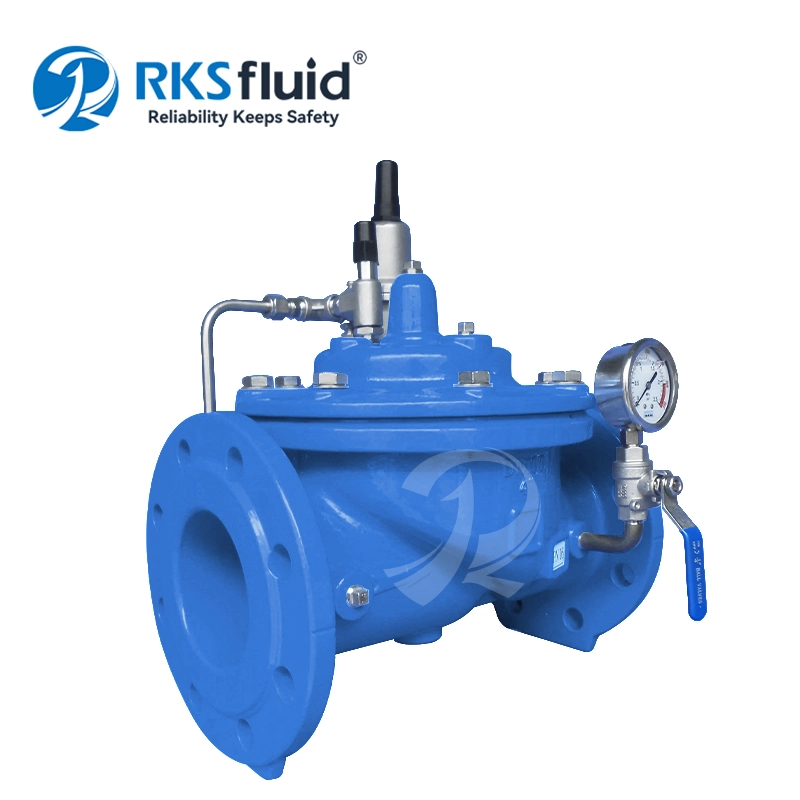

K200/R200 Pressure reducing valve
Pipeline systems need to provide a stable pressure to users
Pressure reducing valve automatically reduces a higher of inlet pressure to a stable lower outlet pressure, regardless of changing flow rate and /or varying inlet pressure.
Static pressure reducing: Even the flow is Zero and no user is using.
Less than 10% for one year acc. UL static test
Regulation accuracy:+/-5%
Inlet pressure need be 1.5 bar higher than outlet.
 |
1.Main Valve
2.Restriction
3.Needle Valve
4.Pressure Reducing Pilot
5.Ball Valve
6.Strainer
Optional Features :
1. ball valve
2. Pressure Gauge
3. Position indicator
4. limit Switch
| Main Valve -Fully Bore ( FB ) | |||||
| DN | L | H2 | H1 | W | Port |
| 40 | 230 | 139 | 85 | 173 | 3/8" |
| 50 | 230 | 139 | 85 | 173 | 3/8" |
| 65 | 290 | 159 | 95 | 198 | 3/8" |
| 80 | 310 | 179 | 102 | 226 | 3/8" |
| 100 | 350 | 214 | 112 | 265 | 1/2" |
| 125 | 400 | 278 | 127 | 307 | 1/2" |
| 150 | 480 | 333 | 145 | 351 | 1/2" |
| 200 | 600 | 600 | 172 | 436 | 3/4" |
| 250 | 730 | 730 | 205 | 524 | 1" |
| 300 | 850 | 850 | 232 | 606 | 1?" |
Hightlights
1. Fully Bore with seat diameter as DN+2 mm
2. Stable working even if the flow close to Zero
3. High performance and strength Nylon enforce diaphragm
4. One Million cycle test and 64 bar burst test
5. Fully bore (FB), Reduce bore (RB) and Anti-Cavitation Device(ACD)
6. Higher than standard product test,
6.1 Seat test : 1.1 * PN + 1 Bar
6.2 Strength test : 1.5 * PN + 1 Bar
6.3 Low pressure sealing test: 0.2 Bar
7. Automatic computer test with 1000 Hz Sensor
8. Smart control valve and Solution system
Why choose us
1. we provides the most competitive solutions with the most professional technical support, the most comprehensive quality management and the most premium customer service.
2.We promise :
Products warranty :24 months.
Response : 24 hours on line with Every Day
|
|
 |
 |
|
|
FAQ
Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.
Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.
Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.
Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.
Q: MOQ
A: 1pc for all products.
Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
We got TUV, API, WRAS, CE, ISO certification.
Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.
Q: How could you provide quality service to our customers?
A: RKSfluid own 27 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
