K200 Ductile Iron Control Valve,EN1092-2 Custom SS304 SS316 Flange Pressure Reducing Valve for Water
- Type: K200 Pressure Reducing Valve
- Size: DN50 - DN1200
- Pressure Range: PN10, PN16, PN25, Class125, Class150
- Temperature Range:≤80℃
- Body Material: Ductile iron,SS304,SS316
- Media: Water
- Design Standard: EN 1074-5
- Face to Face: EN558-1 First series
- Flange Standard: EN1092-2, ANSI, AS
- Applications: Water treatment, Building infrastructure,Irrigation

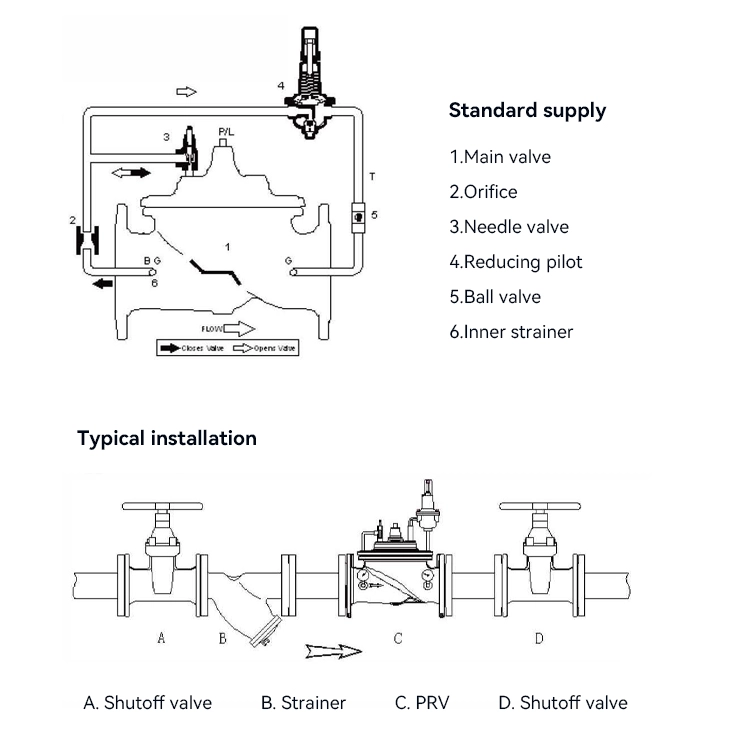

The Model 200 Pressure Reducing Valve automatically reduces a higher inlet pressure to a steady lower downstream pressure, regardless of changing flow rate and/or varying inlet pressure.
This valve is an accurate, pilot-operated regulator capable of holding downstream pressure to a re-determined limit.
When downstream pressure exceeds the pressure setting of the control pilot, the main valve and pilot valve close drip-tight.
Regulation accuracy: +/-5 %
Outlet pressure must higher than 1bar.
