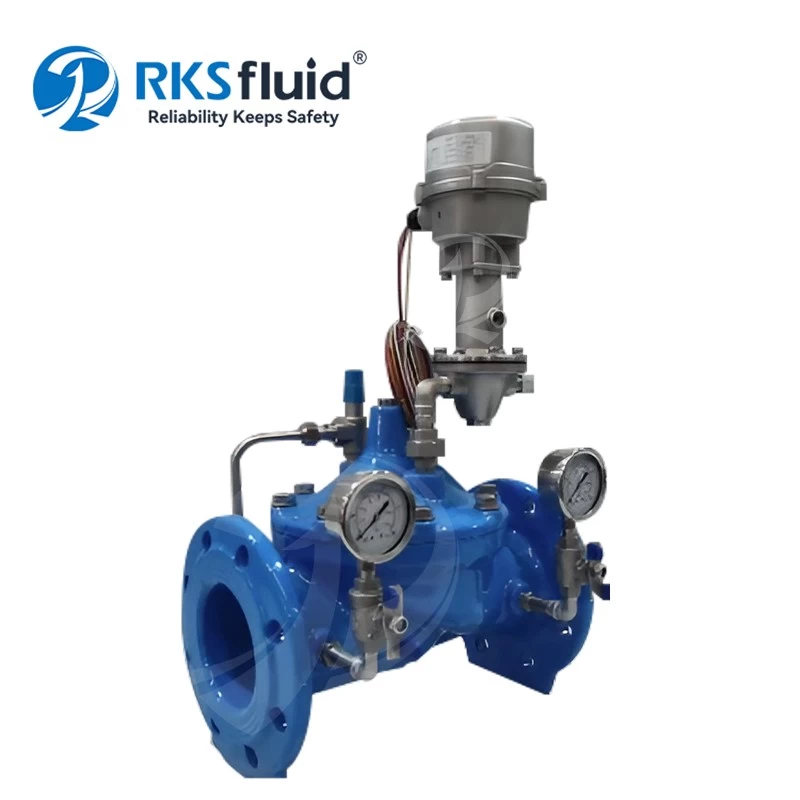

K2S-E PRV Valve Ductile Iron Electric Smart Pressure Regulating Valve

K2S-E PRV Valve Ductile Iron Electric Smart Pressure Regulating Valve

  • Size: DN40-DN1000
  • Pressure Ratings: PN10,PN16,PN25,Class125,Class150
  • Temperature Range:≤80°C
  • Body Material: Ductile iron,SS304,SS316
  • Media: Water
  • Pipes: SS304,SS316
  • Connection: Flange

Pressure reducing valve is a hydraulically actuated, pilot valve controlled control valve. Regardless of how the flow or pre-valve pressure fluctuations and changes, the valve can reduce the pre-valve high pressure to the valve after the low pressure, and remain stable; even if the valve is no user water, but also to maintain a stable pressure at the outlet end.

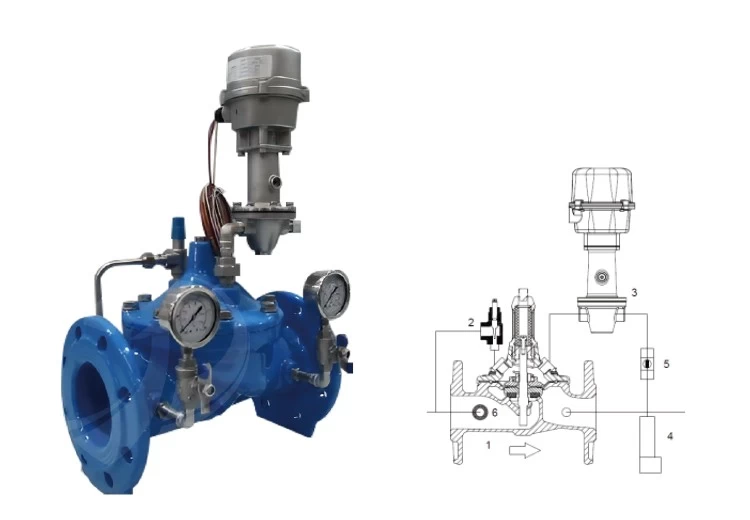

NO.
Name
Material
1 Main Valve DI / SS
2 Flow Control Valve SS
3 Electrically Controlled Intelligent Regulating Valve SS
4 Pressure Transmitter SS
5 Ball Valve SS
6 Filter SS
7 Piping/Connectors SS



Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, wide-range welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts



FAQ

Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.

Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.

Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.

Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.

Q: MOQ
A: 1pc for all products.

Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
    We got TUV, API, WRAS, CE, ISO certification.
    Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.

Q: How could you provide quality service to our customers?
A: RKSfluid own 27 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
