Steel API600 Hand Wheel Flanged Wcb Gate ValveSteel API600 Hand Wheel Flanged Wcb Gate ValveSteel API600 Hand Wheel Flanged Wcb Gate ValveSteel API600 Hand Wheel Flanged Wcb Gate ValveSteel API600 Hand Wheel Flanged Wcb Gate Valve

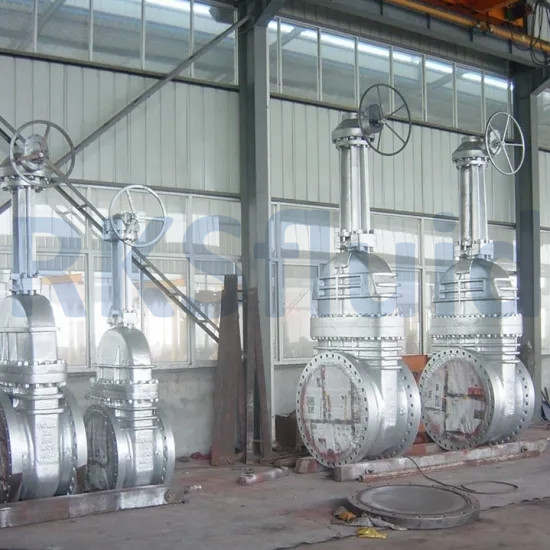

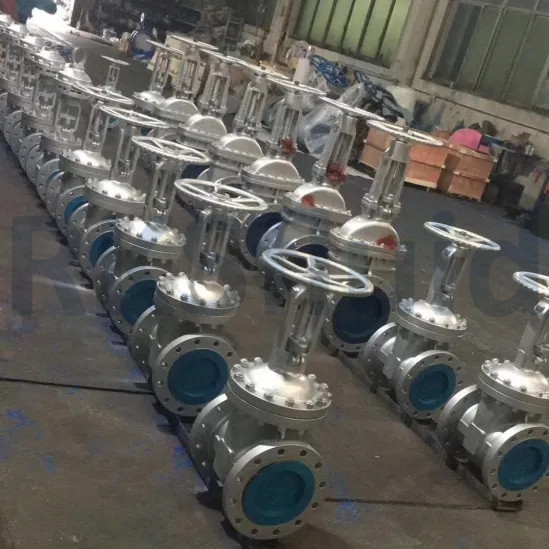

Steel API600 Hand Wheel Flanged Wcb Gate Valve

  • Descriptions:
  • 1) Sizes: 1/2"-36"
  • 2) Pressure: 150LB, 300LB, 600LB,
  • 3) Valve Body: ASTM A216 WCB/CF8/CF8M
  • 4) Disc: ASTM A216 WCB/CF8/CF8M
  • 5) Bonnet: ASTM A216 WCB/CF8/CF8M
  • 6) Seal: Stainless Steel D507Mo, D577
  • 7) Stem: 1Cr13, F6a
  • 8) Yoke nut: ZCuAL10Fe3, ASTM A439 D-2
  • 9) Hand wheel: Malleable Cast Iron, Ductile Iron, and WCB

RKSfluid API600 WCB/ SS  Gate Valve
Competitive Prices:We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. So we can provide the straight factory price and service to our customer.
OEM Accepted: We can make the products with the client's demand standard, and also have many experience on OEM.
Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size,pressure, working environment etc.100% QC inspection Before Shipment.
Quick Delivery: We have the large stock for some hot products.

Descriptions:
1) Sizes: 1/2"-36"
2) Pressure: 150LB, 300LB, 600LB
3) Valve Body: ASTM A216 WCB/CF8/CF8M
4) Disc: ASTM A216 WCB/CF8/CF8M
5) Bonnet: ASTM A216 WCB/CF8/CF8M
6) Seal: Stainless Steel D507Mo, D577
7) Stem: 1Cr13, F6a
8) Yoke nut: ZCuAL10Fe3, ASTM A439 D-2
9) Hand wheel: Malleable Cast Iron, Ductile Iron, and WCB
10) Standards: GB, ANSI API, Russia Standard
11) Type: Rising Stem Gate Valve
12) Connection type: Flange end
13) Control method: Manual
14) Body experiment: 2.94MPa/7.67MPa/15.3MPa
15) High-pressure fluid seal: 2.16MPa/5.62MPa/11.23MPa
16) Low pressure aero seal seals: 0.6MPa
17) Suitable medium: Water, Vapor, Oil


   RKS fluid was founded in 1997. We are a production workshop for both foundry and machining, research & development center, and quality inspection center. The manufacturing facilities include CNC machining centers, professional processing cells, broad spectrum welding equipment, automatic assembling and coating lines. We have built a team for design, research & development. Our new testing center as a public service platform testing center in Liaoning Province, Become the standard GB of the Chinese valve reference unit, to participate in the development of the relevant valve industry standards. In order to accelerate the expansion of overseas business and resources integration, and to support the success of RKS fluid sales in the USA, German, Russia. We have US Agent. Our product design standards cover: GB, ISO, German and American Standard, approved by TUV for CE and ADWO- 2000, ISO9001, TS, API. Our products: Manual, Pneumatically & electrically operated Ball valves, Butterfly valves and Gate Valves. Check Valves, Automatic Control Valves. Castings and Fittings: Valve bodies, Bonnets, Discs, Stems, Gear Box, Universal Couplings, Flange Adaptors, Tapping Saddles.After years of development, we continue to improve and seek out innovation while adhering to "Proven Technology, Superior Features and Legendary Value" as our product value philosophy. Customer satisfaction is our working goal!
