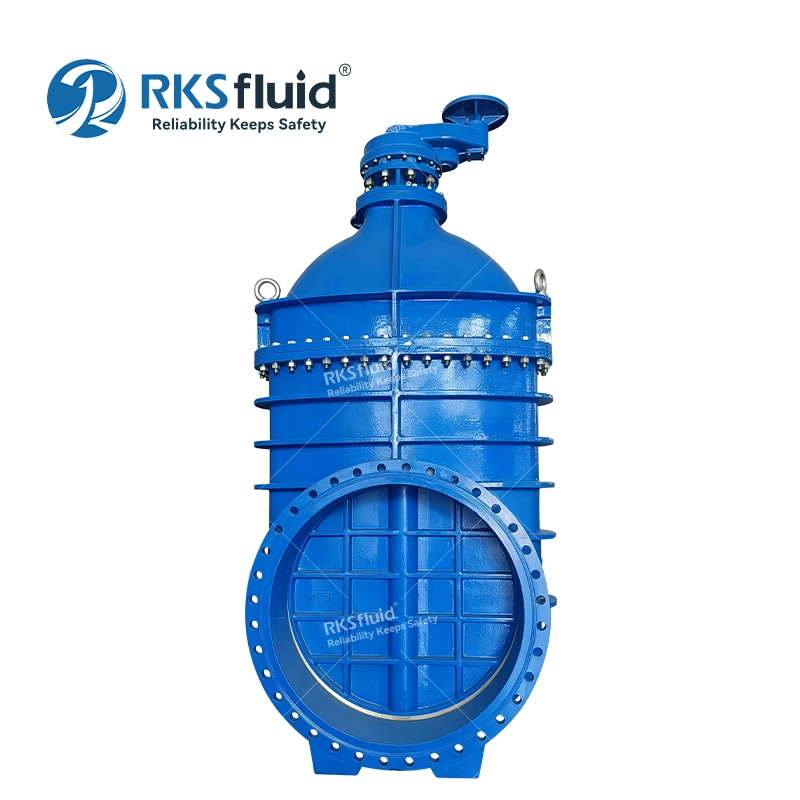

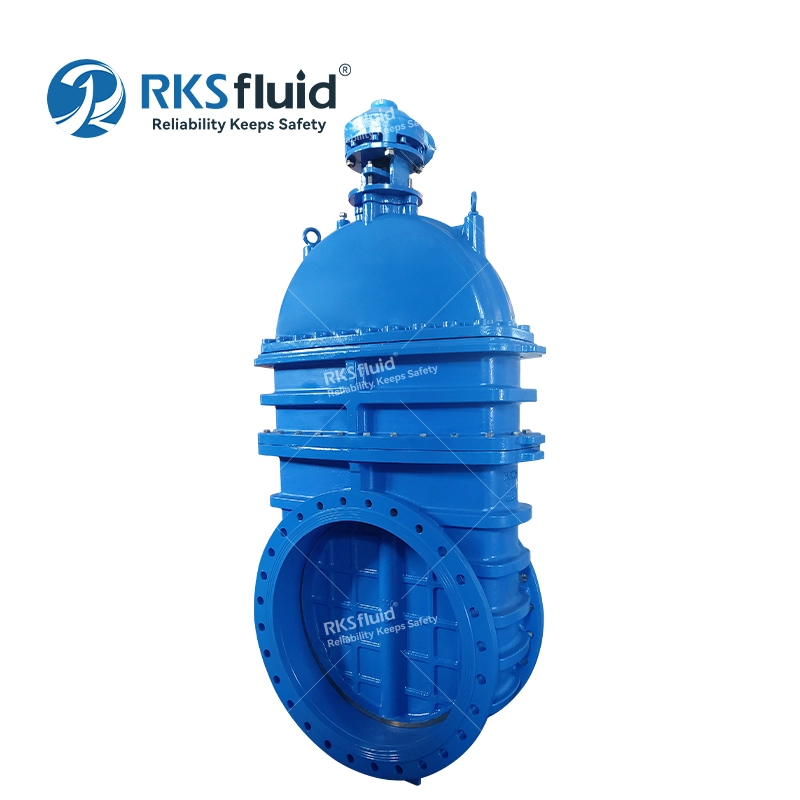

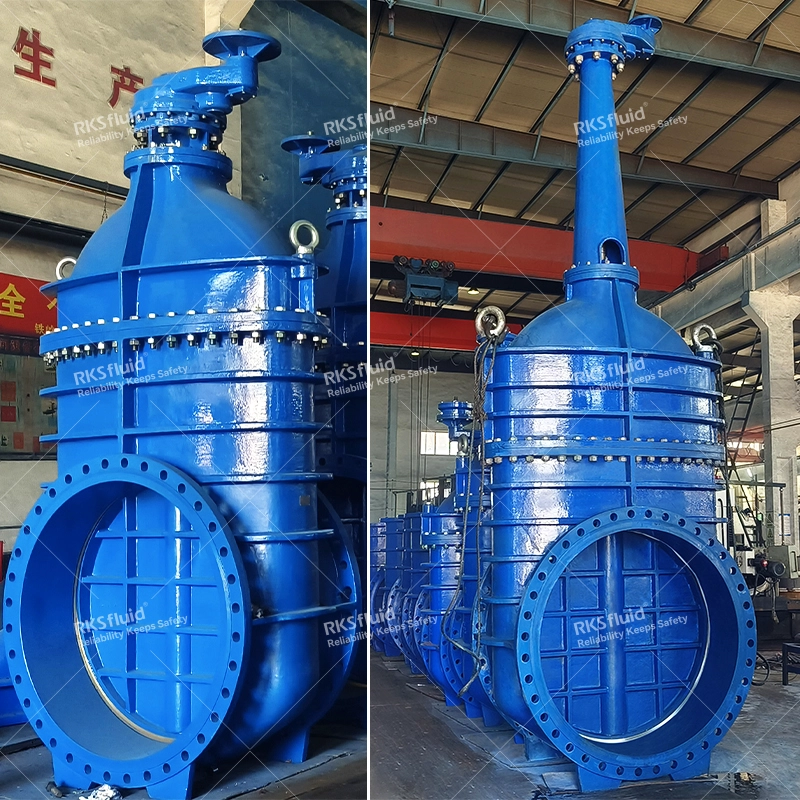

RKSfluid metal seated gate valves are designed for reliable isolation in water supply, water transmission, and wastewater treatment systems.
With a robust ductile iron body and metal-to-metal sealing structure, the valve is suitable for demanding municipal and industrial pipeline applications.
Key Specifications
| Parameter | Specification |
| Type | Metal Seated Gate Valve |
| Size Range | DN50-DN2000 |
| Pressure Rating | PN10/PN16/PN25 |
| Connection | Flanged End |
| Temperature | ≤80℃ |
| Body Material | Ductile Iron |
| Medium | Water,Wastewater |
Design Standards
The valve is manufactured in compliance with international standards:
These standards ensure compatibility with global water infrastructure and EPC project requirements.
Product Design Features
1. Metal Seated Sealing System
The metal-to-metal sealing structure provides high durability under abrasive and high-pressure conditions, making it suitable for long-term isolation service in water and wastewater systems.
2. Robust Ductile Iron Construction
The valve body is manufactured from ductile iron, offering high strength, impact resistance, and long service life in buried and above-ground installations.
3. Full Bore Flow Design
When fully open, the gate provides minimal flow resistance, ensuring efficient pipeline operation and reduced pressure loss.
4. Suitable for Large-Diameter Systems
With size availability up to DN2000, the valve is widely used in municipal water transmission and large-scale infrastructure projects.

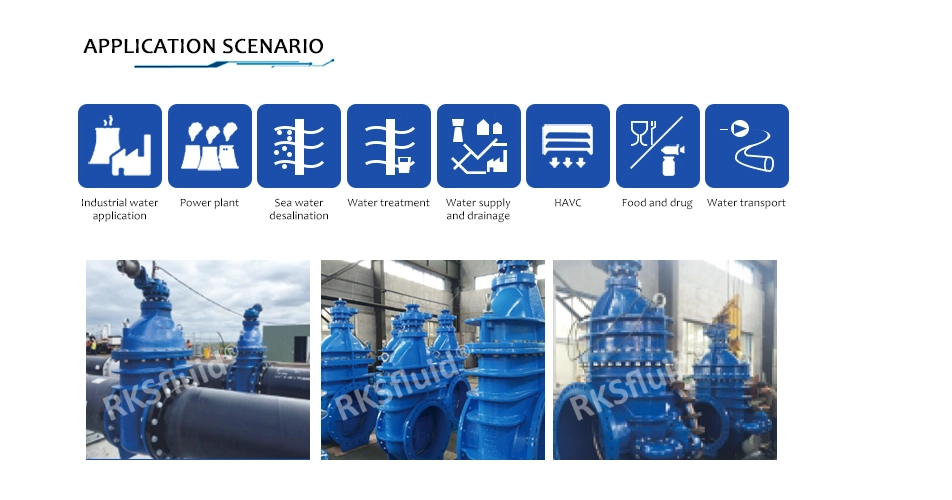

Engineering Applications
Metal seated gate valves are commonly used in:
They are especially suitable for systems requiring long-term shut-off performance and infrequent operation.
Engineering Support (CTA)
Need Technical Support for Gate Valve Selection?
Selecting the right gate valve for a water infrastructure project requires evaluation of pressure conditions, pipeline diameter, installation constraints, and long-term operating requirements.
RKSfluid provides engineering support for valve selection, technical specifications, and EPC project documentation for water supply and wastewater systems.
Contact our engineering team to discuss your project requirements or request technical assistance.
