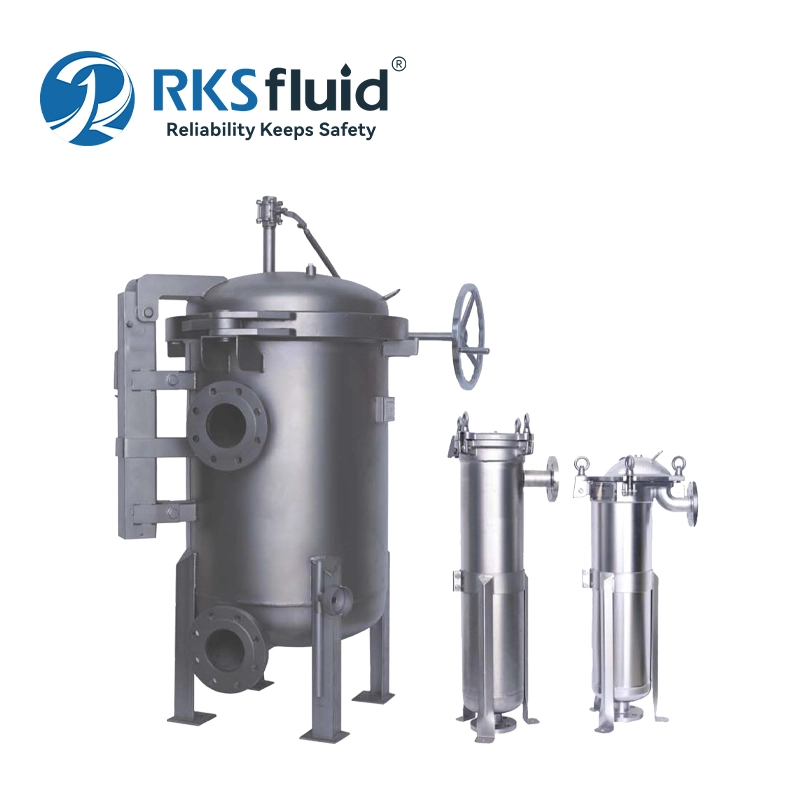

Top cover fully press tight seal bag filter
- Type:Bag filter
- Material:SS304, SS316L, CS, PP, PVDF
- Filtration Precision:0.5-2000um
- Pressure:0.6Mpa, 1.0Mpa, 1.6Mpa
- Flow Range: 1~960㎡/h
- Number of filter bags:1~24 PC
- Filtering Area:0.1~12㎡
- Suitable viscosity: 1~20000
- Application: Chemical industry. Water treatment, Papermaking, Automobile industry, petroleum, Machining, Coating, electronic etc.
- Product Details

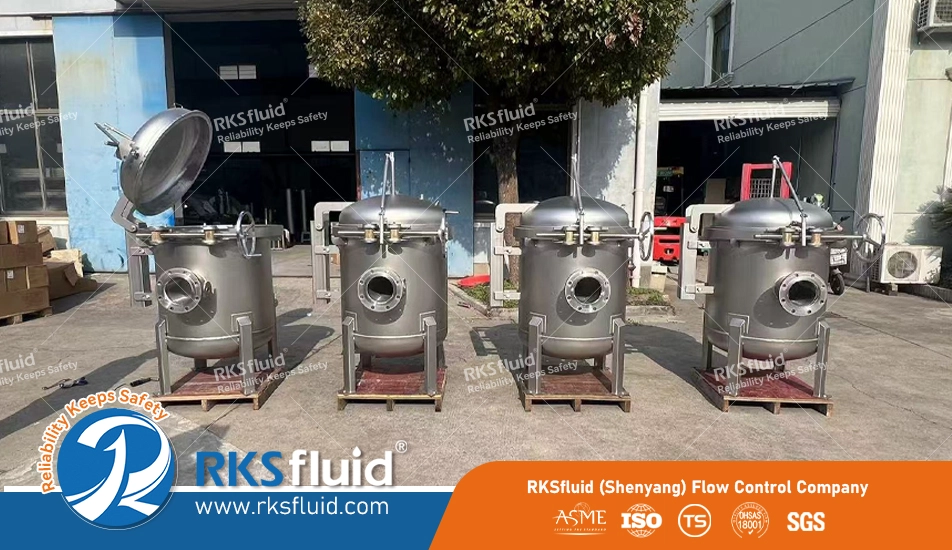

RKS multi-bag filter features two locking mechanisms on the top cover: a lifting ring bolt and a V-type clamp. It can be classified into two opening methods: spring-assisted opening and vertical lift-and-slide. The spring-assisted V-type clamp quick-opening filter is particularly suitable for applications requiring frequent replacement or rapid switching of filter elements, with the opening operation taking only 30 seconds, significantly improving operational efficiency.

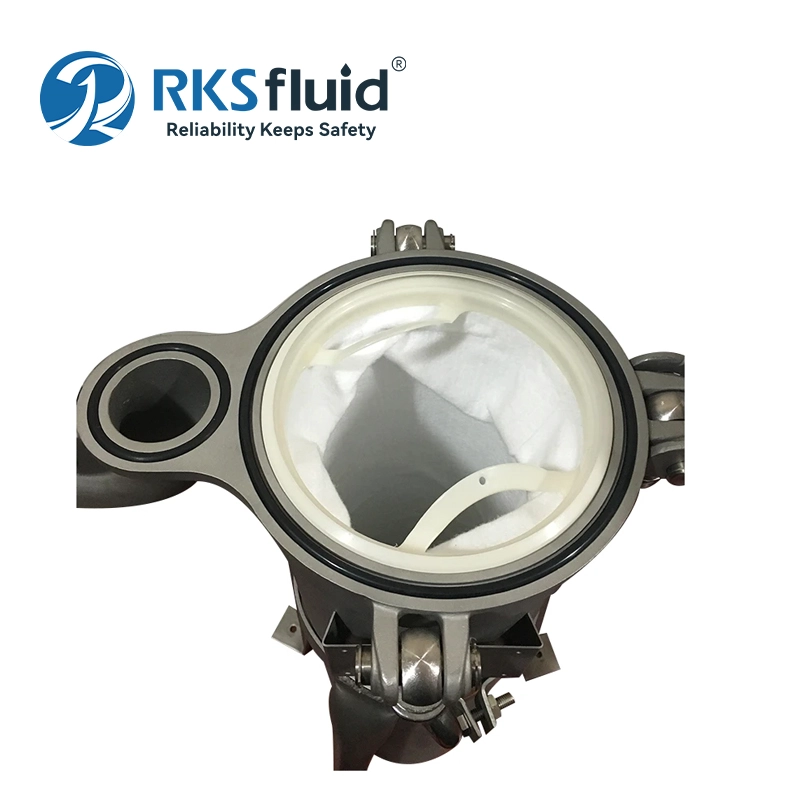

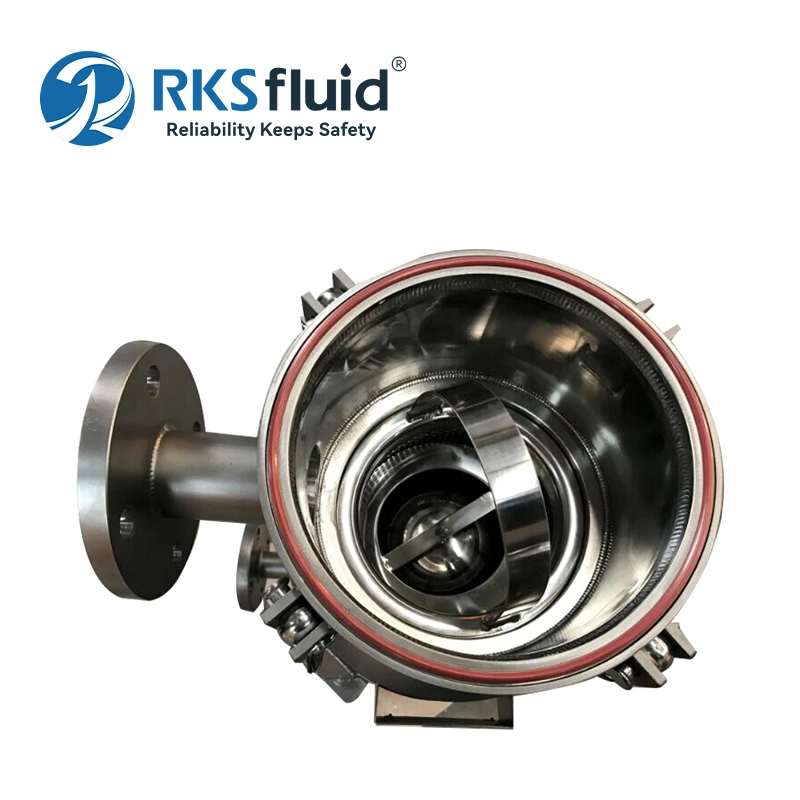

The unique three-point pressure ring design ensures a good seal between the filter and filter bags. Multi-bag filters are suitable for high flow and high solids content applications, with the number of filter bags ranging from 3 to 24.
Product Selection
| Flow (m/h) | 1-960 | Filter Area (㎡) | 0.1-12 |
| Optional Precision (um) | 0.5-1200 | Viscosity (cp) | 1-20000 |
| Filter Bag Qty. | 1-24 | Design Pressure (Mpa) | 0.6、1.0、1.6 |
| Optional Filter Bag (pc) | Heat fused and sewn steel and plastic ring filter bags | ||
| Material | SS304、SS316L、CS、PP、PVDF | ||
Product Advantages
- Humanization design, long rod type,V type clamp locking device,30 seconds opening time.

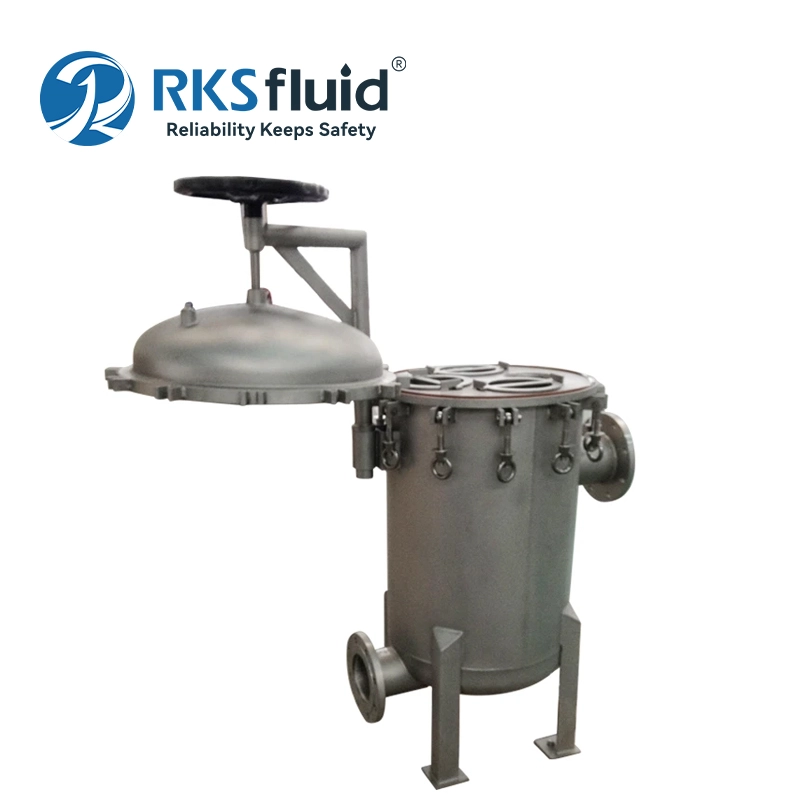

- Open vertically and open horizontally type as its two opening way, meet the requirements of area in workshop.
- The spring arm power opening structure is easy to open the head cover by single hand.
- The Unique unit of compression in three-point, ensure the reliable sealing, avoid the side leakage of liquid medium.
- Flow is 120m³/h. to 960m³/h.
- Meet with GB150, ASME, CE Pressure vessel standard for production and supply
