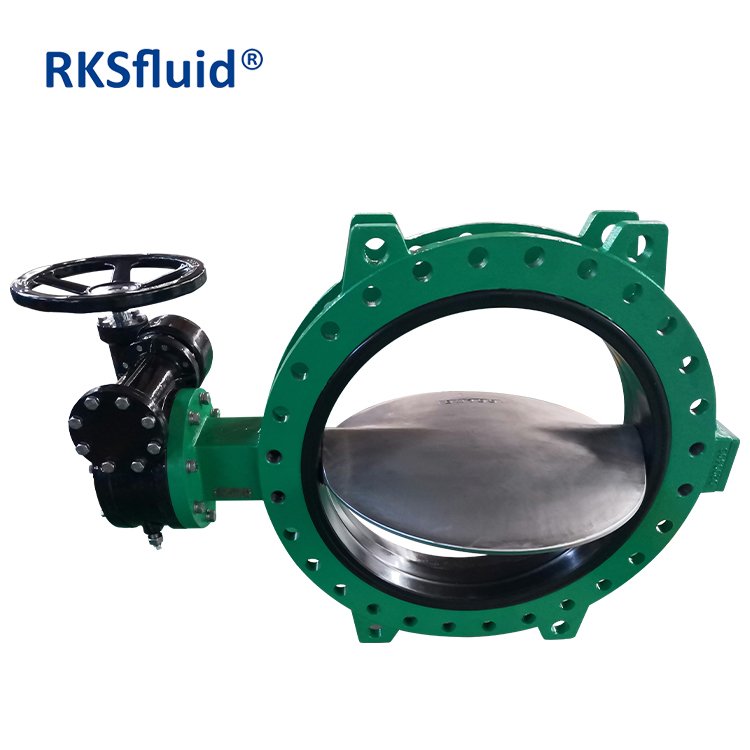

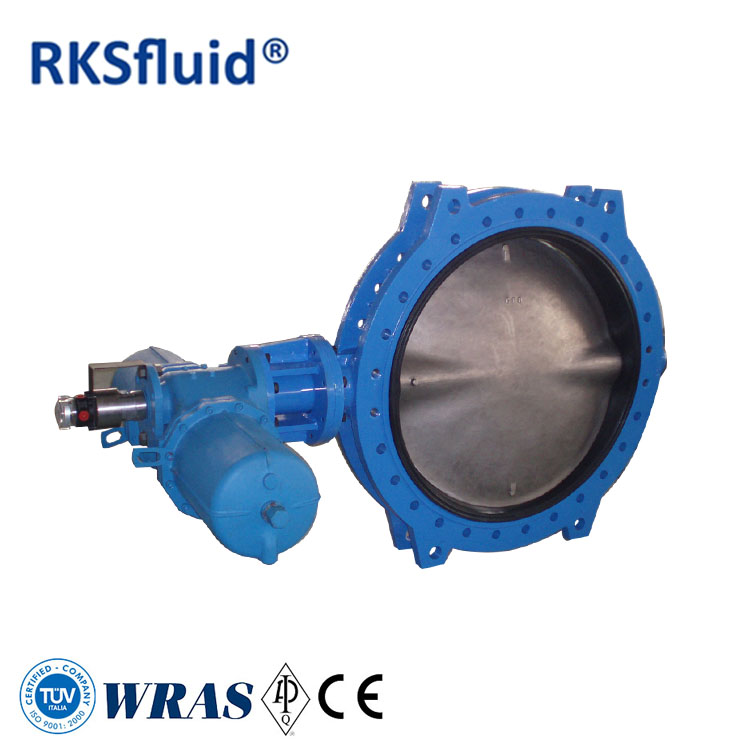

U section between wafer type double flange butterfly valve
- Series: HYDRA Series Resilient Seat Butterfly Valve
- Port Size: DN32-DN2400(NPS1 1/4-NPS96)
- Pressure: PN6, PN10, PN16(Class 150)
- Temperature: -29℃ ~ +120℃
- Body: Ductile Iron: GGG40
- Seat: NR, NBR, EPDM, Viton, Silicone Rubber
- Disc/Trim: Epoxy Coated Ductile Iron,SS316,SS304,Duplex Stainless Steel,Al Bronze
- Stem: SS316,SS304,SS420,SS416
- Connection: Wafer, Lug, U-type flange
- Design Standard: API,DIN,ASME,ISO,ANSI,GB/T,BS EN,AWWA
- Certificate: CE ,WRAS,API,ISO9001:2015,OHSAS18001:2007
- Application: water,power plant,HVAC,Food,Medicine,Desalination

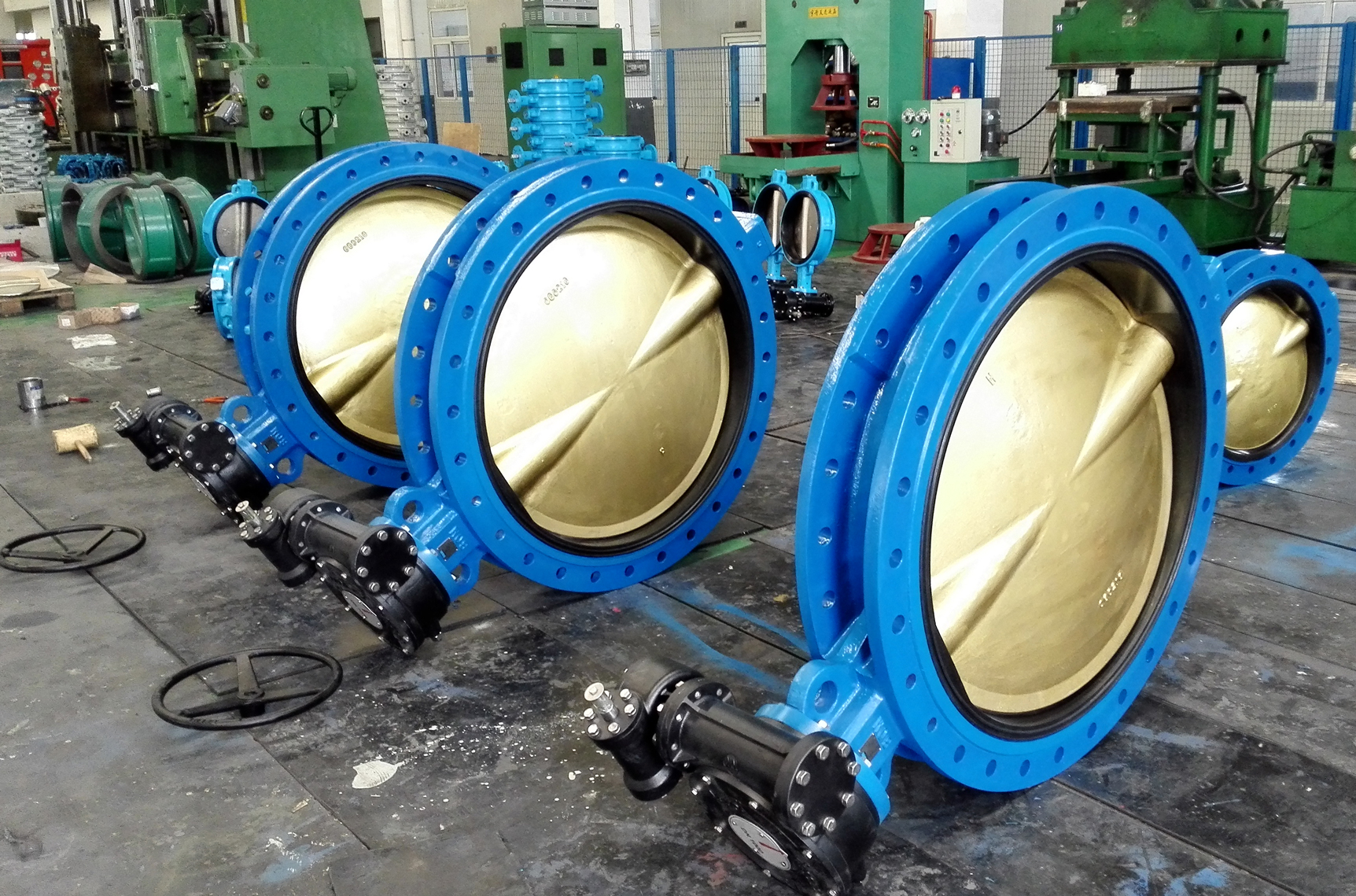

WAFER BUTTERFLY VALVE WITH U TYPE FLANGE
suitable for flanges DIN/BS EN1092 -1 PN10/PN16/,ANSI Class125/Class150,etc.
Face to face dimensions: EN558-1 series 20(Wafer short) EN558-1 sereis 16(Wafer long)| DN | 700 | 800 | 900 | 1000 | 1200 |
| Wafer short(mm) | 165 | 190 | 203 | 216 | 254 |
| Wafer long(mm) | 229 | 241 | 241 | 300 | 350 |
VALVE MATERIALS:
| BODY MATERIALS:As the body is internally fully rubber lined, the body material is protected from corrosion by the medium. | |||
| Type of material | Material standard | Example for application | |
| Ductile iron | GGG40, DIN 1693 | General application | |
| 60-40-18,ASTM A536 | |||
| 400-18, BS 2789 | |||
| Ductile iron(Heat treated) | GGG40.3 DIN 1693 | Heavy applications, Cold applications, petrochemical industries, power stations, alternative for cast steel | |
| Cast stainless steel | CF8, ASTM A351 | Medicine, food, drink | |
| CF8M, ASTM A351 | |||
| Bronze | C-CuSn10Zn, DIN 1705(RG10) | Marine service | |
| C90500, ASTM B584 | |||
| LG1, BS 1400 | |||
Ⅰ Business area: fluid control products, technology and environmental protection products.
Ⅱ Advanced CNC machining centers, professional process cells, welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
Ⅱ Advanced CNC machining centers, professional process cells, welding equipment, automatic assembly lines and coating.
Ⅲ China's standard reference unit, to participate in the development of relevant valve industry standards.
Ⅳ We have set up a research and development center in Houston, Texas, in the United States.
Ⅴ Product Standard: GB, German Standard, American Standard, TUV CE, ISO 9001, ADWO-2000, TS, PED, WRC WRAS, KTW, API 6D, API609.
VI Main production: butterfly valve, ball valve, gate valve, check valve, globe valves, pipe fittings, manual / pneumatic / electric actuator, valve parts.
FAQ
Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.
Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.
Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.
Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.
Q: MOQ
A: 1pc for all products.
Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
We got TUV, API, WRAS, CE, ISO certification.
Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.
Q: How could you provide quality service to our customers?
A: RKSfluid own 20 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
Q: If I need quotation, what informations do we need?
A: Valves' materials, Temperature, Pressure, Medium, Appllication System.
Q: Can you provide actuators, what you have?
A: Pneumatic, Electric, Hrdraulic, Solenoid Valves. RKSfluid actuators adopt USA technology. Which you need, just tell us.
Q: What's your productive capacity?
A: RKSfluid has four plants that can provide the products you need.
Q: Production lead time
A: Normal products have stock in 2~5 working days. Customized base on your need.
Q: MOQ
A: 1pc for all products.
Q: How about the quality assurance?
A: 100% quality test before delivery, 2 years warranty. Ensure your system working safety.
We got TUV, API, WRAS, CE, ISO certification.
Standard conform to DIN, ASME, BS EN, JIS, API, AWWA.
Q: How could you provide quality service to our customers?
A: RKSfluid own 20 years experiences and more than 70 R&D engineers provide technical support, model selection and installation guidance for you.
