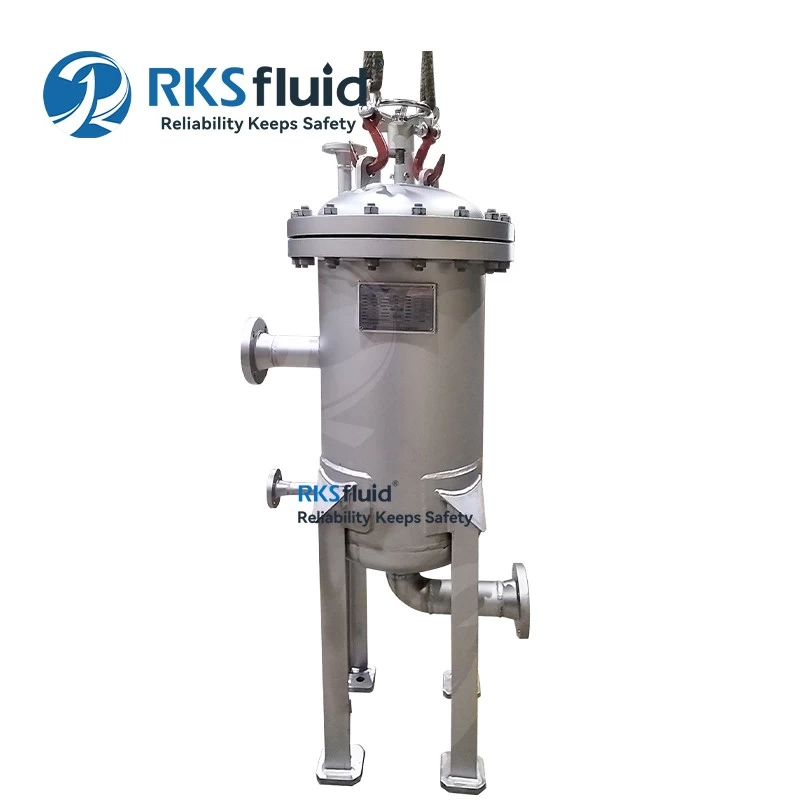

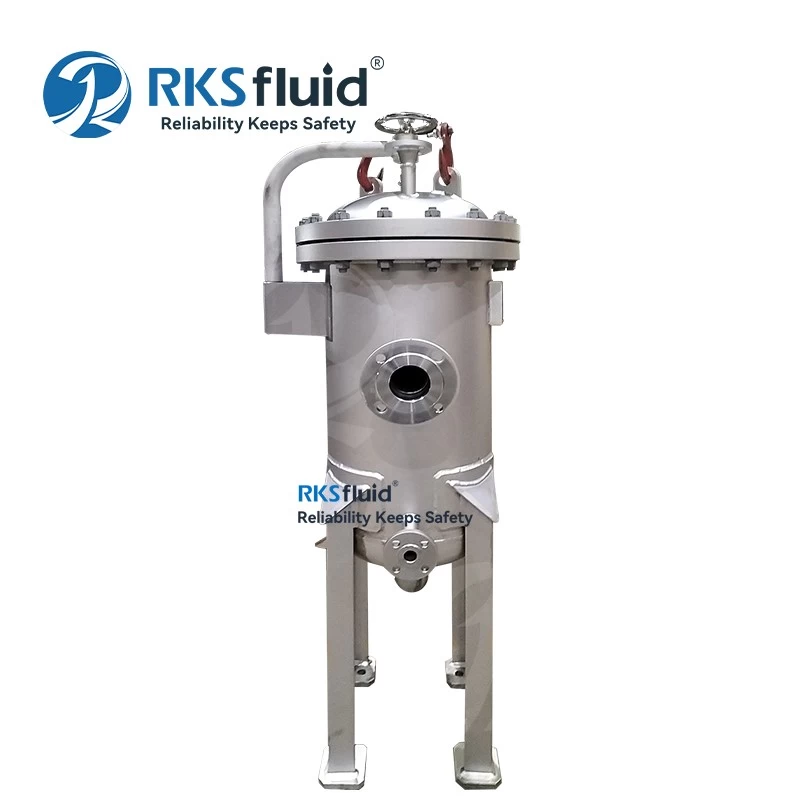

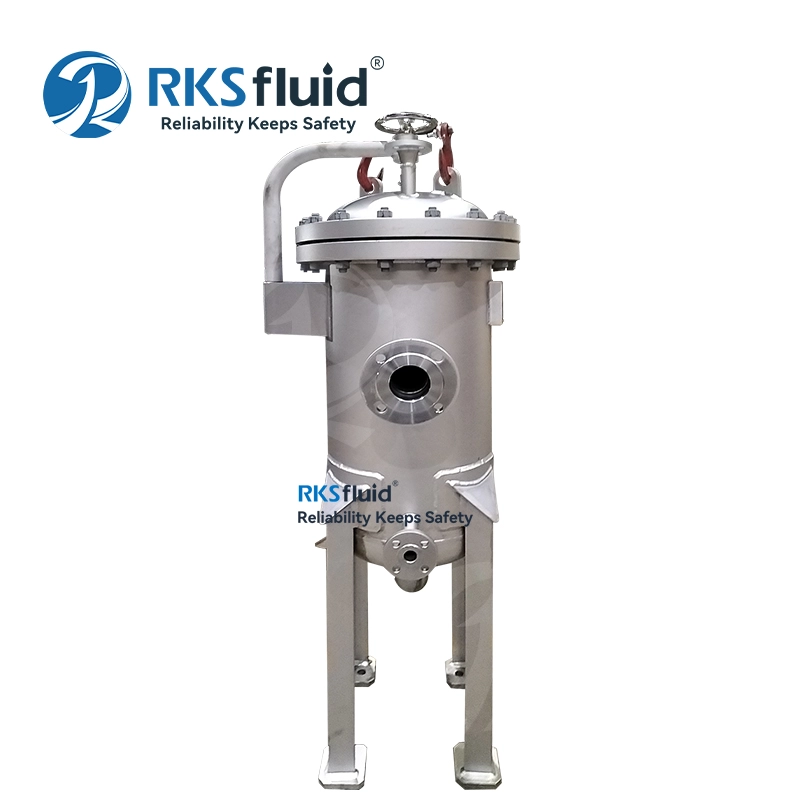

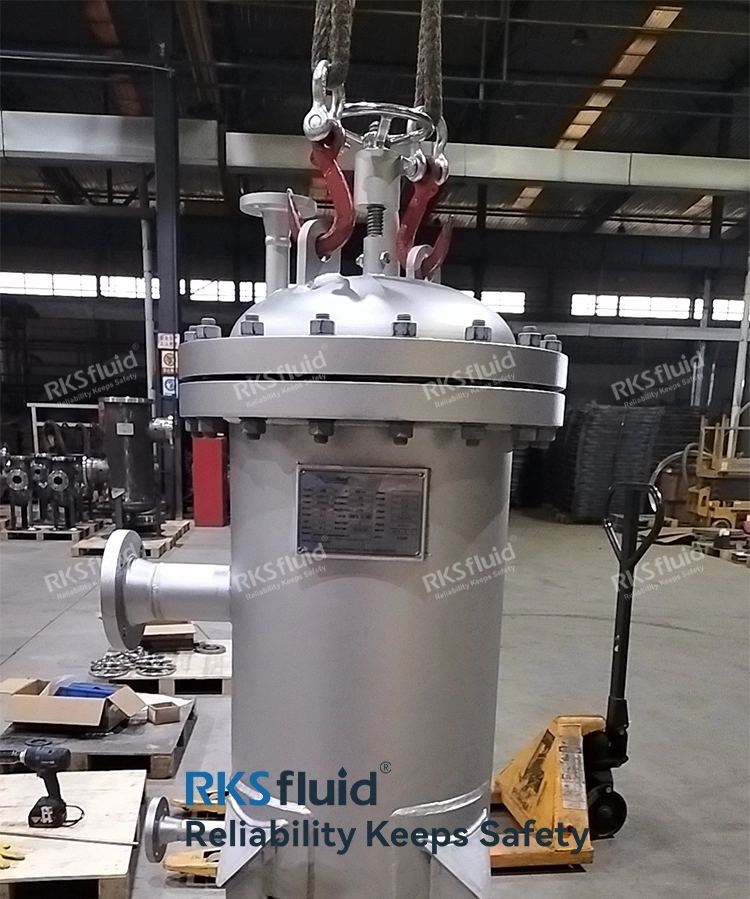

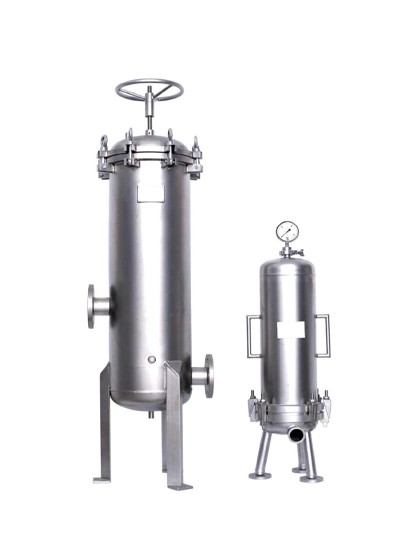

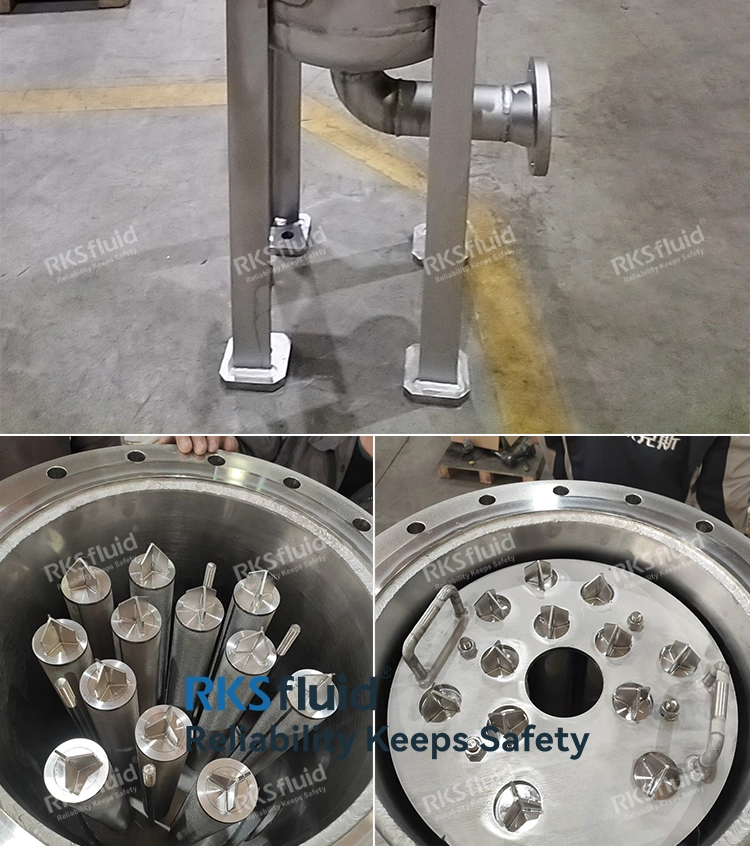

RKSfluid Industrial Stainless Steel Cartridge Filters are designed for removing suspended particles from industrial process liquids. The filter housing accommodates replaceable cartridge elements, allowing filtration requirements to be matched to the process medium, required particle retention and operating conditions.
Constructed from SS304 or SS316L stainless steel, the filter housing is available with different cartridge interfaces and configurations to suit a range of industrial liquid filtration applications. Cartridge selection and housing configuration can be specified according to the required flow rate, filtration rating, operating pressure and temperature.
Key Features
| Body Material | SS304/SS316L |
| Surface Treatment | Sandblasting /Mechanical Polishing /Electropolishing |

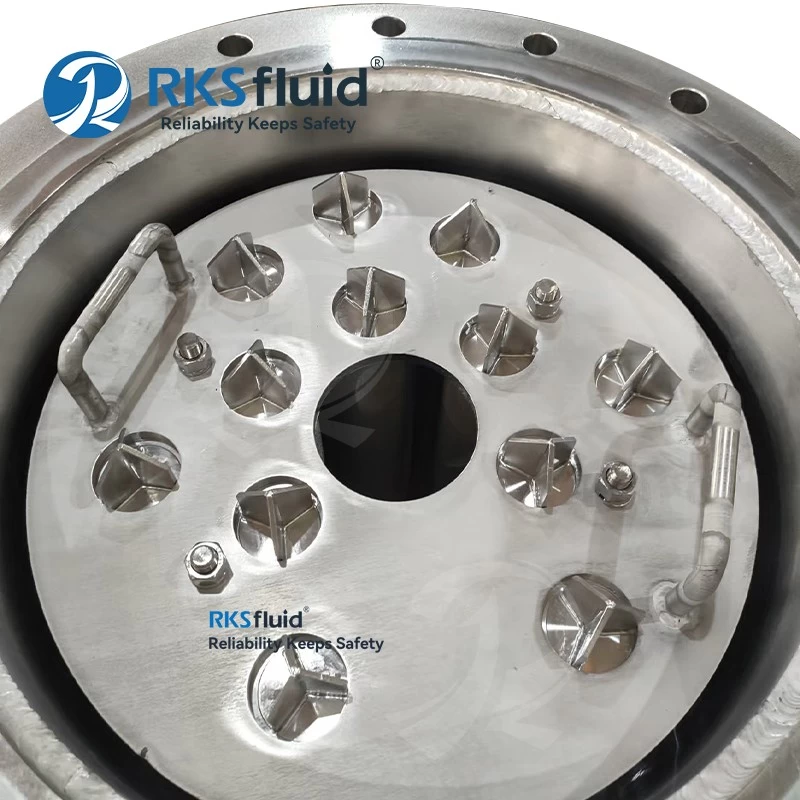

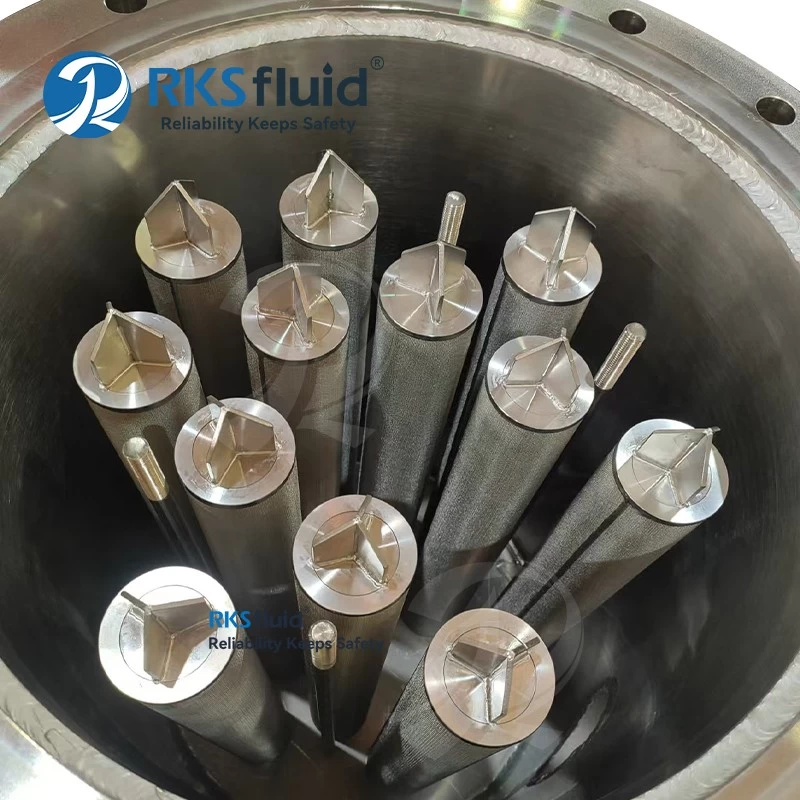

| Optional Cartridges | DOE/222/226 |
| Filtration Rating | 0.5-100μm |
| Cartridge Length | 10-60in |
| Cartridge Quantity | 1-150pcs |
| Design Pressure | 0.6/1.0MPa |
| Design Temperature | ≤130°C |
| Inlet/Outlet | Quick Connect /Clamp/Flange |
| Vent Valve | G1/2"(s12 cartridges),G 1"(>12 cartridges) |
| Drain Valve | G3/4"(s12 cartridges),G 1"(>12 cartridges) |
| Pressure Gauge | M14×1.5 |

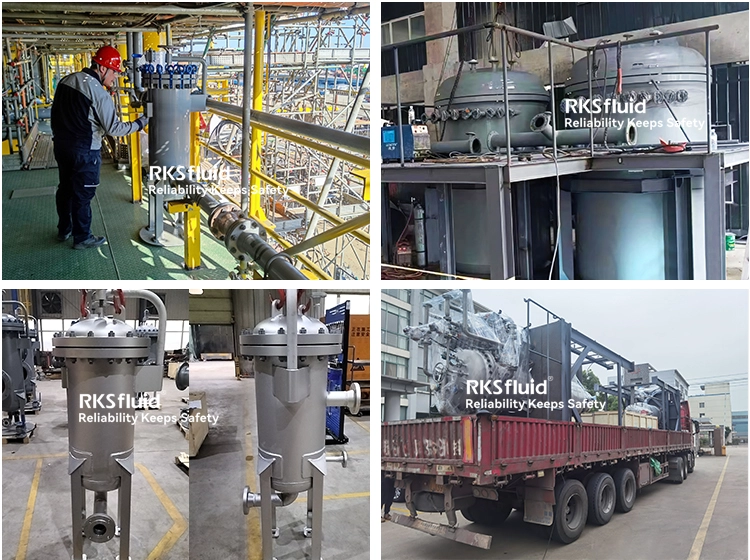

Applications
RKSfluid Industrial Stainless Steel Cartridge Filters can be used for particulate removal in:
The appropriate filter configuration depends on the process medium, particle characteristics, required filtration rating and operating conditions.
Filter Selection
When selecting an industrial cartridge filter, consider the required flow rate, filtration rating, cartridge length and end connection, housing material, operating pressure and temperature, and allowable differential pressure. Confirm that the selected cartridge is compatible with the housing and the process liquid.
Contact RKSfluid with your operating conditions and filtration requirements for technical evaluation and quotation.
