MINOTAUR series replaceable seat high performance butterfly valve

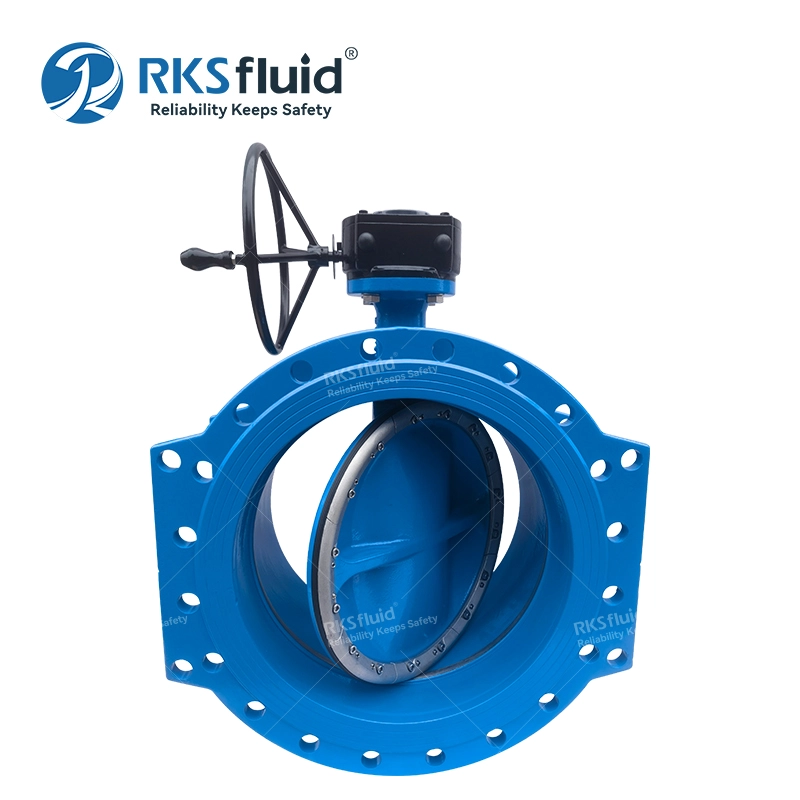

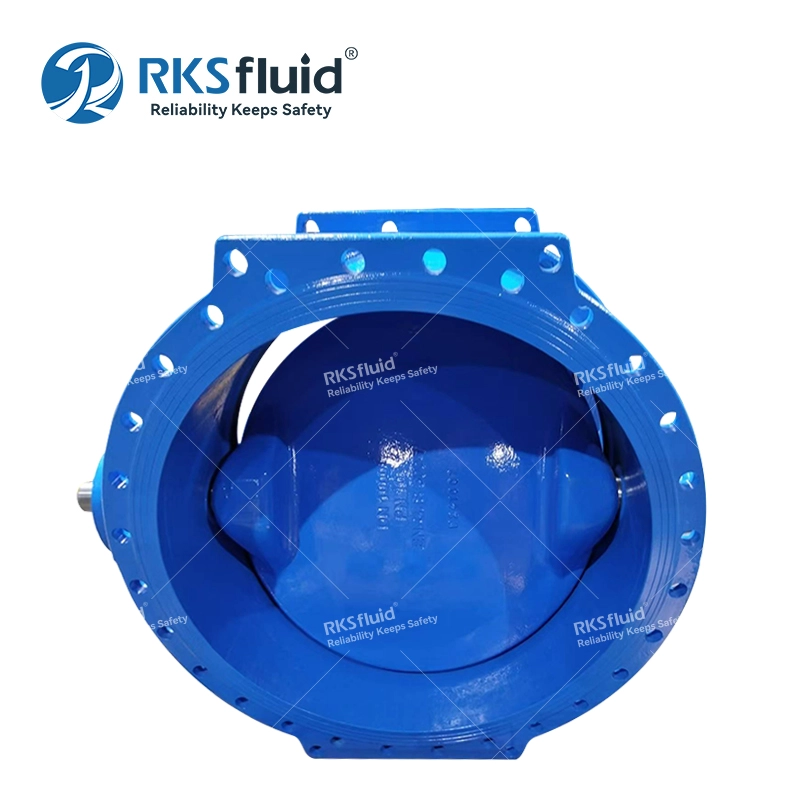

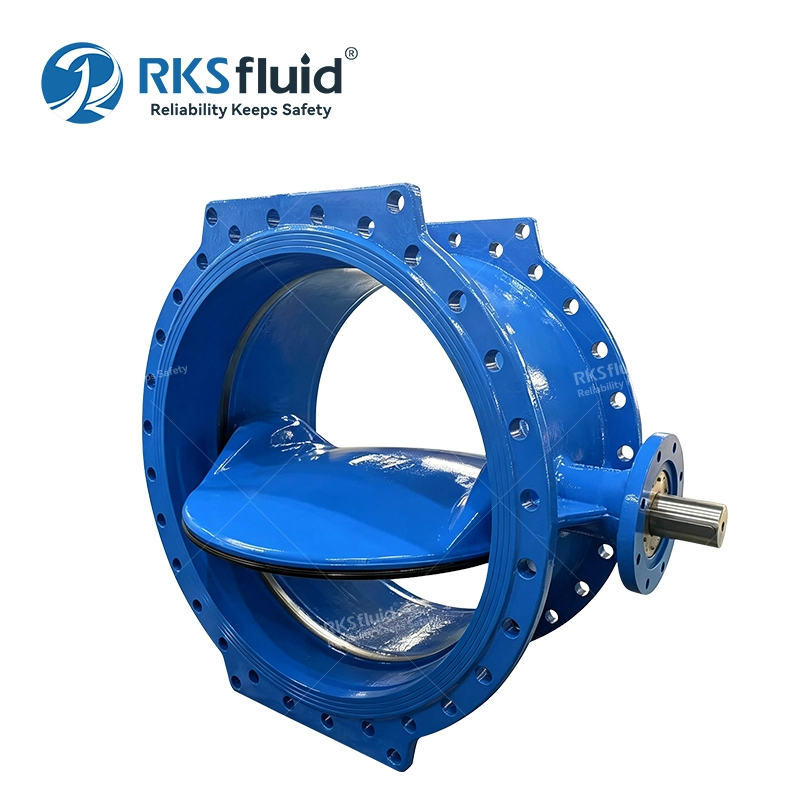

New double eccentric butterfly valve represents the essence of an efficient butterfly valve designed for when economy is a high priority. ATHENA is functional and reliable, providing reduced complexity.
It covers the needs in standard applications for drinking water in terms of design, materials and standards.
With a double eccentric structure, optimized disc design and robust sealing system, ATHENA valves provide reduced operating torque, minimized seat wear and reliable shut-off performance for demanding water and industrial applications.
key Feature:
Why Choose ATHENA Series ?

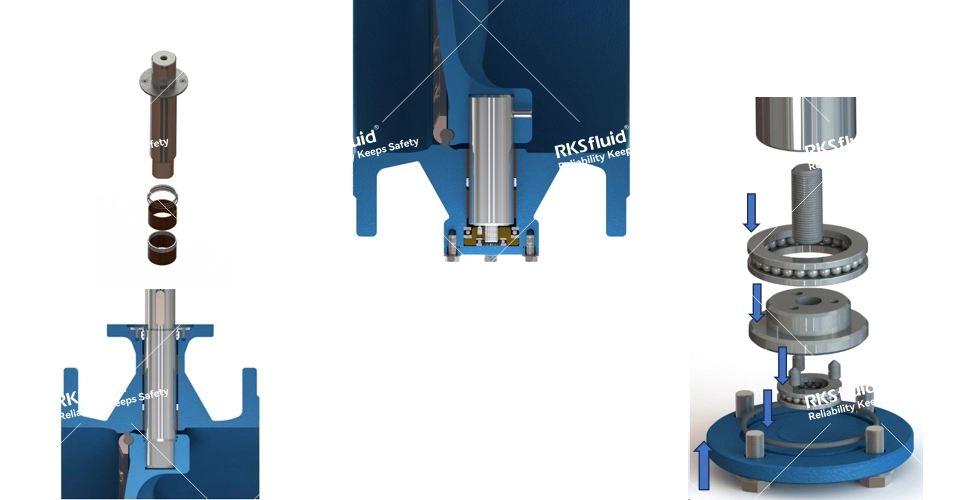

Dual Bearing System for Enhanced Shaft Stability
ATHENA Series adopts a dual bearing structure to support the disc and shaft assembly, effectively reducing operating friction and improving valve stability during long-term operation.
1. Reduced Shaft Deflection
The bearing system minimizes shaft movement under hydraulic load, ensuring stable sealing performance.
2. Extended Sealing Life
Multiple O-ring sealing protection prevents external contamination and protects internal sealing components during long-term service.
3. Improved Large Diameter Valve Performance
The dual bearing design is especially suitable for large diameter butterfly valves where disc weight and operating torque become critical factors.

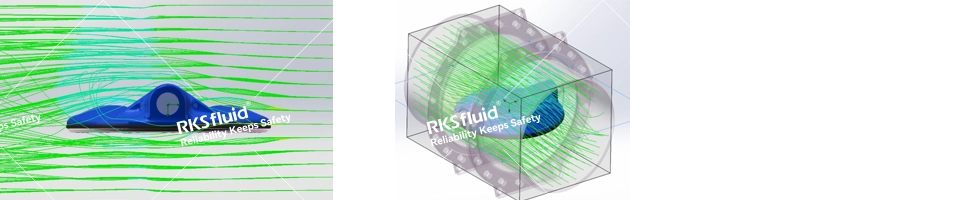

Optimized Hydraulic Performance for Lower Energy Consumption
ATHENA Series adopts a dual bearing structure to support the disc and shaft assembly, effectively reducing operating friction and improving valve stability during long-term operation.
High Kv Value & Low Pressure Loss
The optimized disc profile provides higher Kv values and lower resistance coefficients, reducing pressure loss across the valve and helping optimize pump energy consumption.
Typical Applications:
Water Transmission Pipeline
Designed for municipal and regional water transmission systems requiring reliable isolation of large diameter pipelines.
Pump Station
Suitable for pump inlet and outlet isolation where reliable operation and low torque performance are required.
Water Treatment Plant
Applied in filtration systems, clear water pipelines and process isolation applications.
Industrial Cooling Water System
Provides reliable flow control for industrial water circulation and cooling applications.

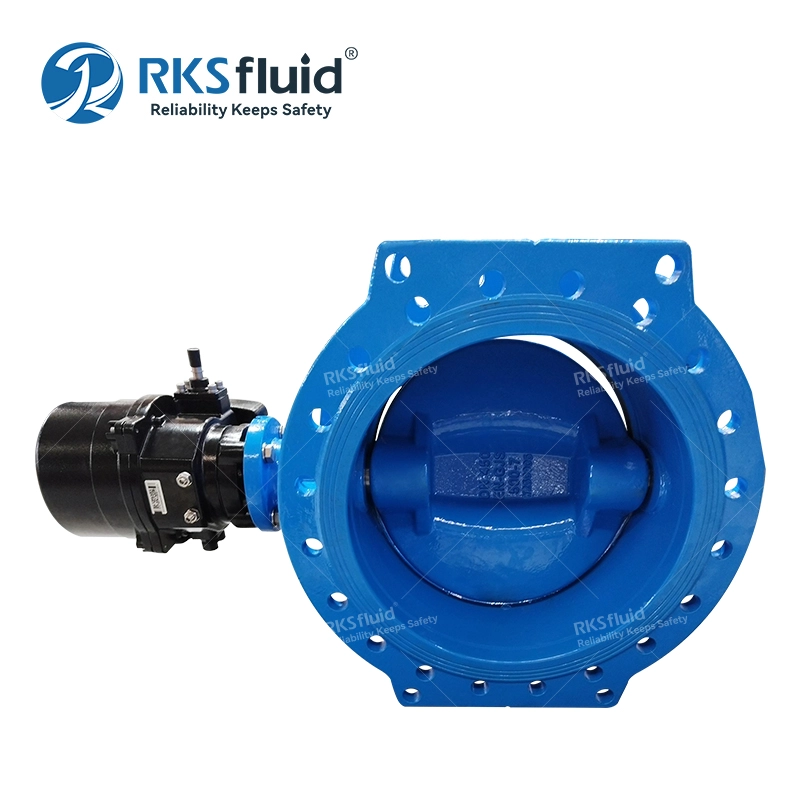

Gearbox and Actuator Configuration Support
RKSfluid provides actuator sizing support based on valve size, pressure rating, operating torque and project requirements.
