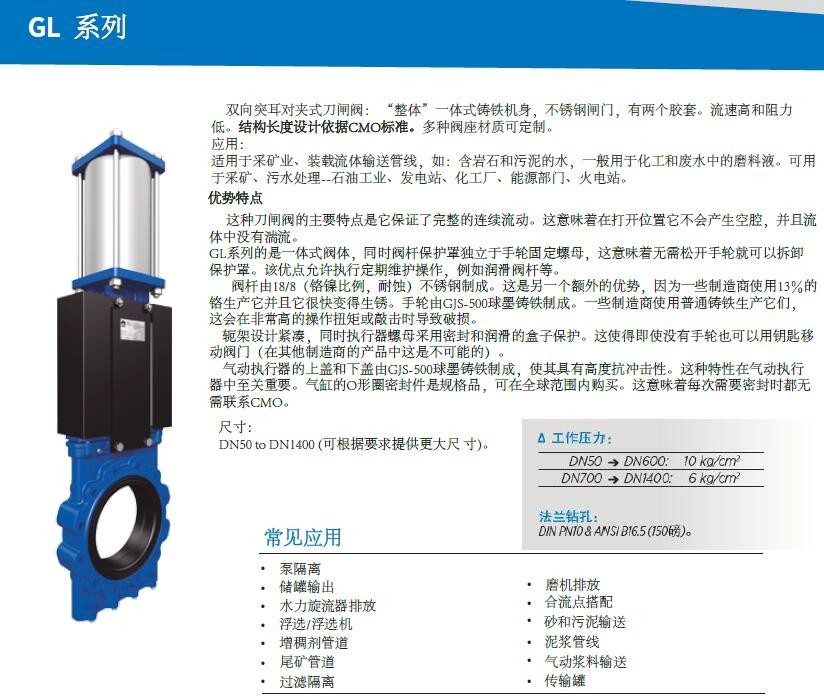

CMO GL series mining slurry knife gate valve

• SIZES:
• DN50 to DN1400 (larger sizes on request).
• FLANGE DRILL:
• DIN PN10 & ANSI B16.5 (150 LB).

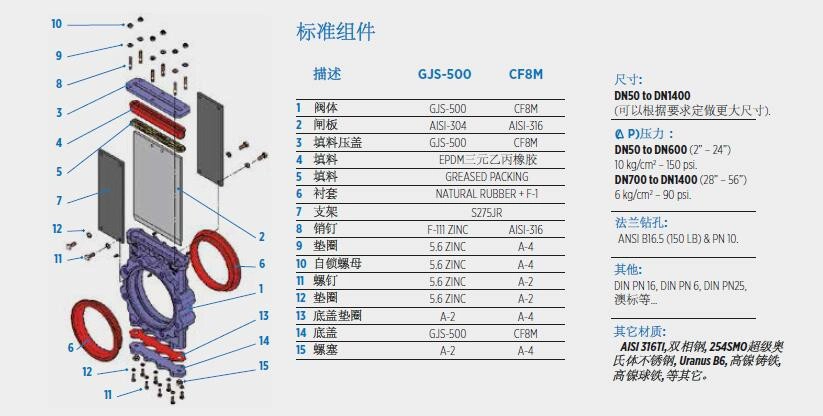

• MATERIAL:
• Bidirectional lug-wafer design knife gate valve.
• “Monoblock” one-piece cast iron body. Stainless steel gate.
• Two rubber sleeves. Provides high flow rates with low pressure drop.
• APPLICATIONS:
• Suitable for working in the mining industry, in loaded fluid transport lines, such as: water with rocks, sludge, etc. and generally used for abrasive fluids in chemical industry and waster water. Min-ing, Sewage treatment - Oil industry, Electrical power stations, Chemical plants, Energy Sector, Thermal power stations.
