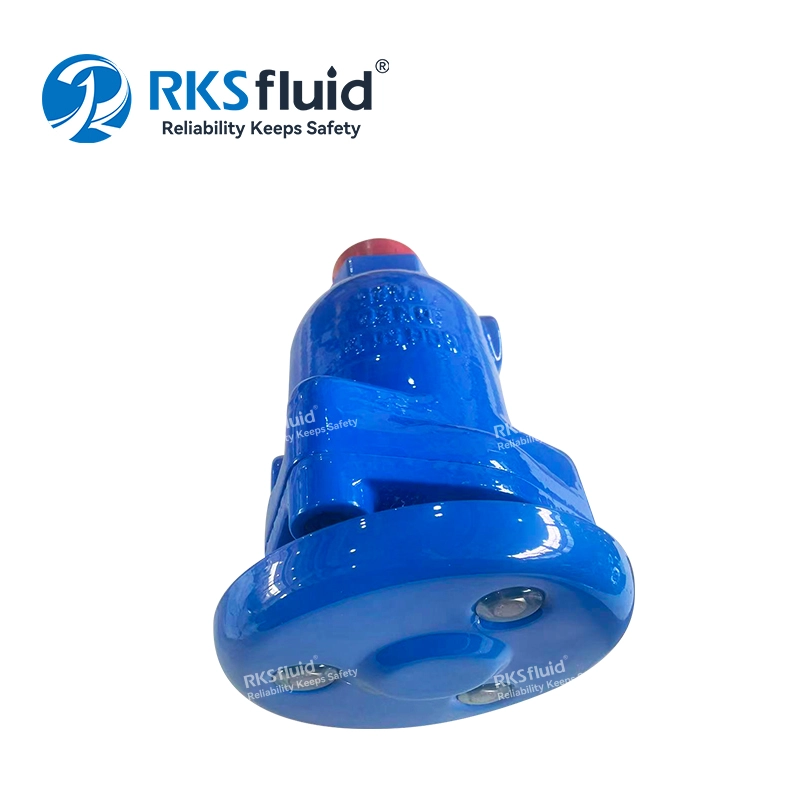

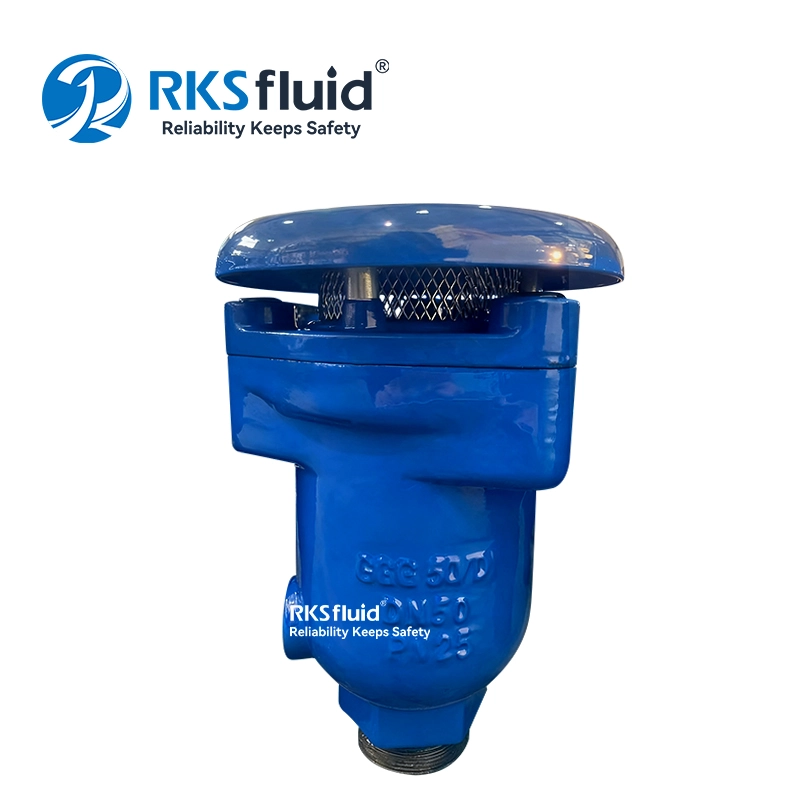

RKSfluid Three-Function Combination Air Valves are designed for air management in pressurized water pipeline systems. The valve combines automatic air release during normal operation with large-volume air exhaust during pipeline filling and air admission during draining or negative-pressure conditions.

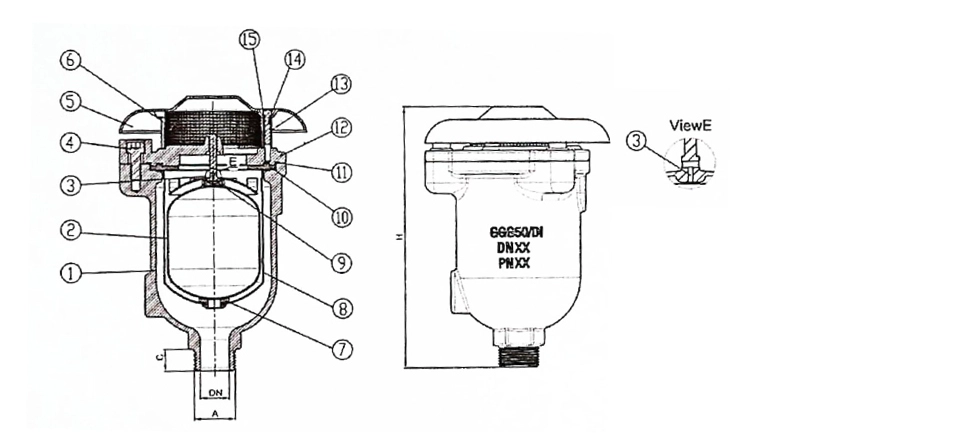

| DN | A | C | H |
| 25 | NPT1" | 20 | 243 |
| 32 | NPT1¼" | 20 | 243 |
| 40 | NPT1½" | 20 | 243 |
| 50 | NPT2" | 20 | 243 |
Key Features
Three-Function Air Management
Combines automatic air release, large-volume air exhaust and air admission functions.
Ductile Iron Construction
Body and cover manufactured from EN-GJS-500-7 ductile iron.
Stainless Steel Internals
SS304 internal components provide corrosion-resistant construction for water service.
WRAS-Grade Materials
WRAS-grade rubber and epoxy coating materials are used for the specified configuration.
Heavy-Duty Protective Coating
RAL 5005 epoxy powder coating with a minimum coating thickness of 250 μm.
Need a Different Air Valve Configuration?
RKSfluid also supplies 4F & 3F Air Valve series for water supply, transmission, firefighting and irrigation systems.
Explore the 4F & 3F Air Valve Series →
For other sizes, pressure ratings, connections or project-specific requirements, contact the RKSfluid team for technical support and a quotation.
